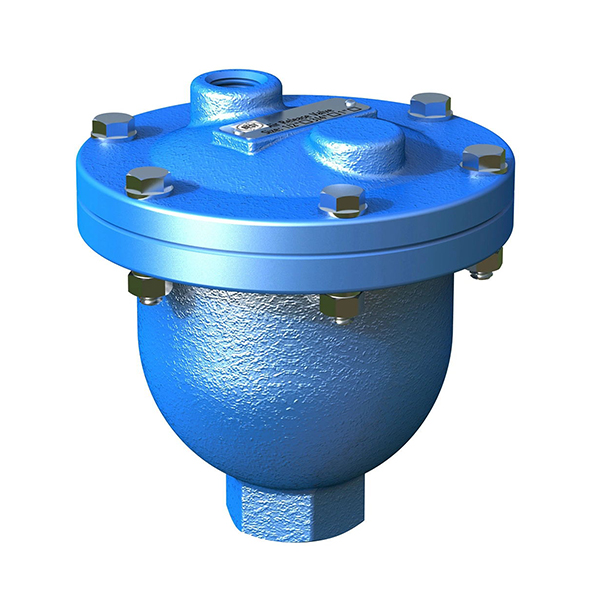

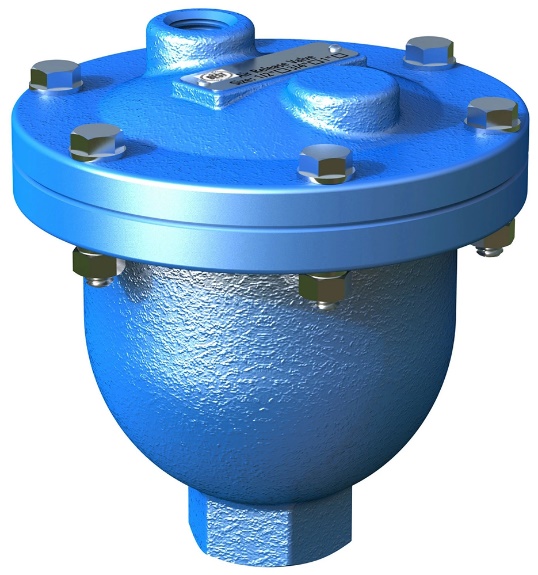

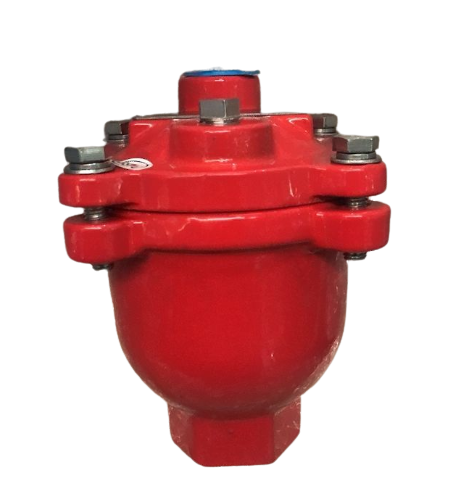

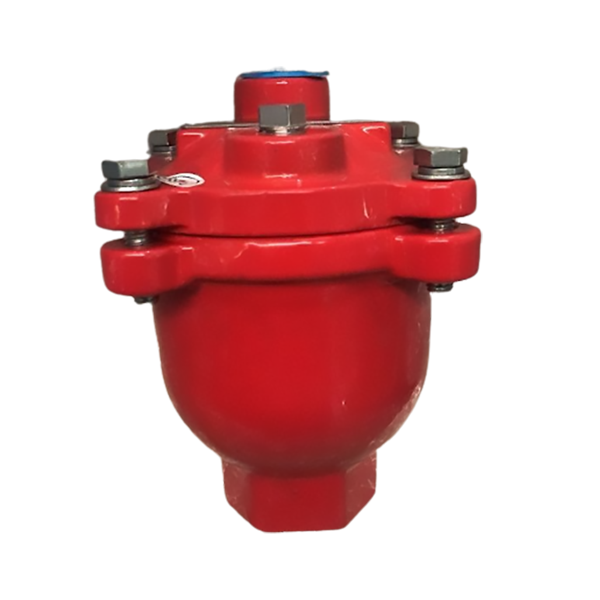

Air Release Valve
An air release valve is a kind of air inlet and exhaust device, typically used in water or irrigation schemes to ensure that any entrained air in the water system is automatically released in order to maximize the system performance. Entrained air pockets in pipes can cause excessive head loss and flow reductions if air is not effectively released.
Construction
Parts | Material |
Body | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Cover | Ductile Iron ASTM A536 Grade 65-45-12/EN1563 GJS 450-10 |
Float Ball | Stainless Steel AISI 304 |
Lever Frame | Stainless Steel AISI 304 |
Pivot Pin | Stainless Steel AISI 304 |
Orifice Button | Viton |
Seat | Stainless Steel AISI 304 |
Description
Small orifice release air under pressure operation.

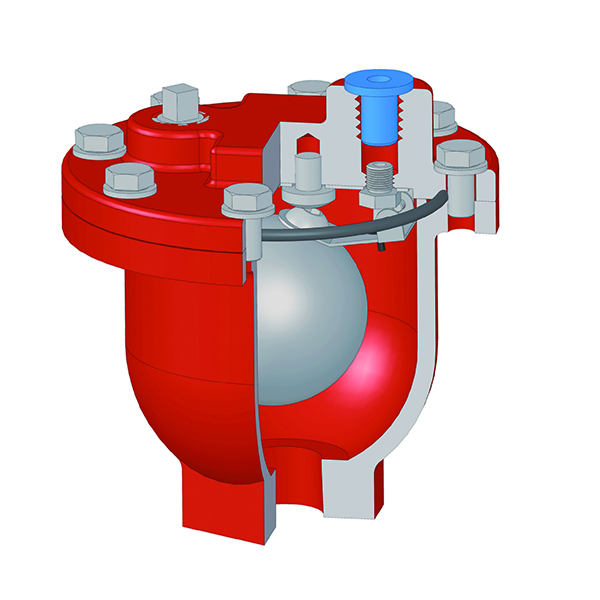

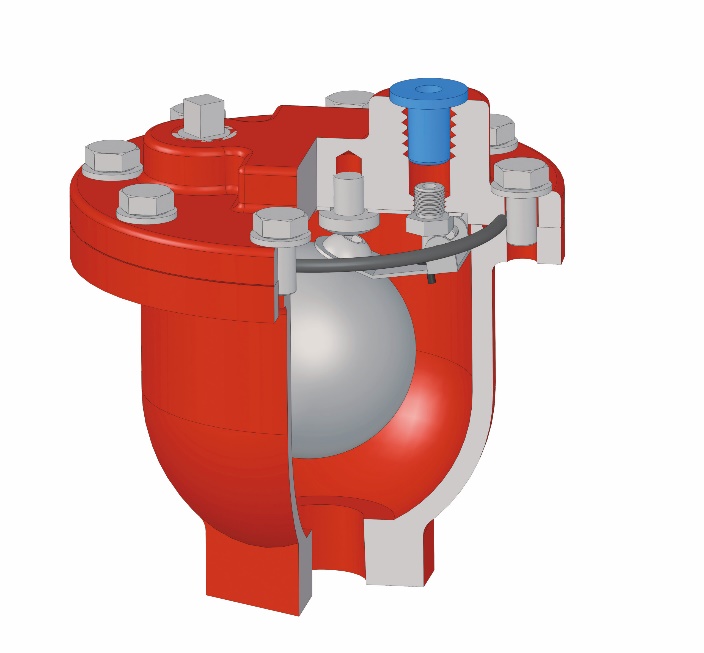

The float is connected to the vent via a linkage mechanism.
Range from 1/2” up to 1”.
Standards
Connection Standard: NPT, BSPT.
Working Pressure Rating: PN16, 200/250psi.
Working Temperature: -10 ℃ - 120 ℃.
Available
|
|
Suitabilities
Water Fire Fighting
