Doulbe Bolted Clip

Double Bolted Clip

Pipe clamps, or pipe fixings, are best defined as the support mechanism for suspended pipes, whether that be horizontal overhead or vertical, adjacent to a surface.

Pipe clamps are found in all manner of household, industrial and outdoor settings. They're used as an efficient and tidy way to restrain, secure and guide tubing or conduit for a range of plumbing, heating and electrical purposes.

Description

•

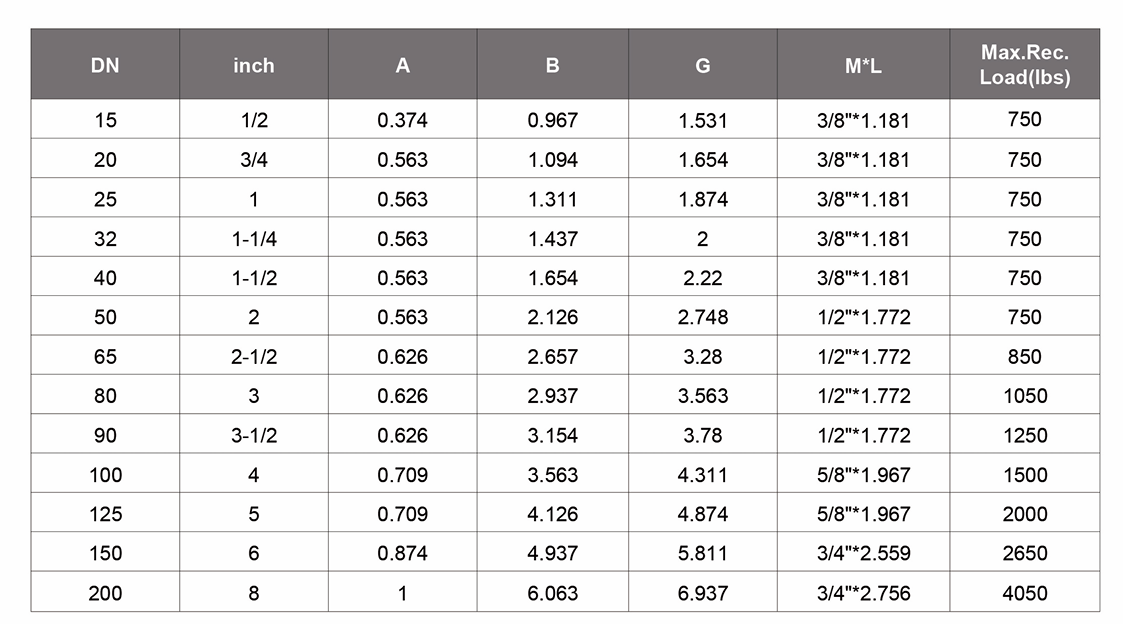

  Size：1/2" Thru 8"

• Finish:  Zinc  Plate.

• Approals:  UL lists 1/2" thru  8" FM approved 3/4" thru  8"

• Function: Designed for standard iron pipe

• Features: Maximum temperature Plain 650°F,Galvanized 450°F. Complies with Federal Specifications A-A-1192A (Type8) and ANSI/SP-69 and SP -58 (Type 8).

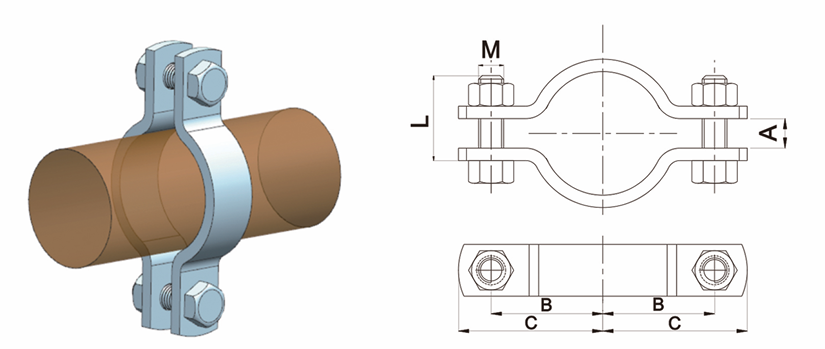

Construction

Suitabilities

         Water               Fire Fighting
