Fire Steel Door
Fire-rated doors are constructed of materials that work together to slow or stop the spread of flames, smoke and, in certain applications, radiant and conductive heat transfer.
A fire-rated door is typically located around stairwells and elevator shafts to help prevent smoke and fire from traveling throughout multiple floors of a building.
Our commercial grade doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated doors with custom options including stain finishes, sizing, and non-existing hardware.

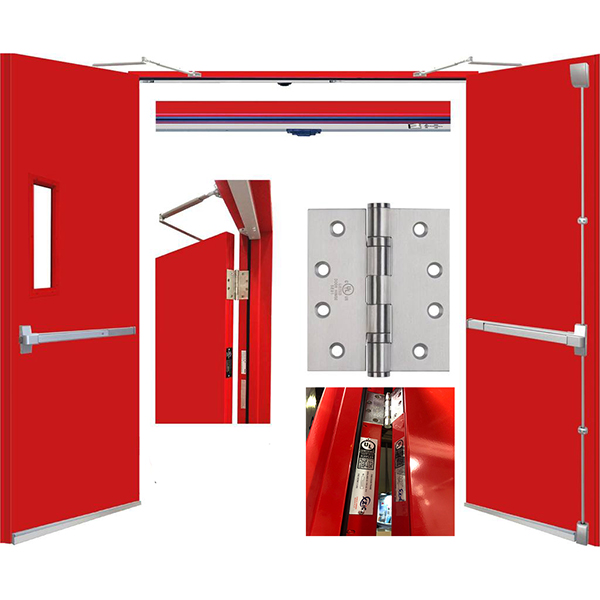

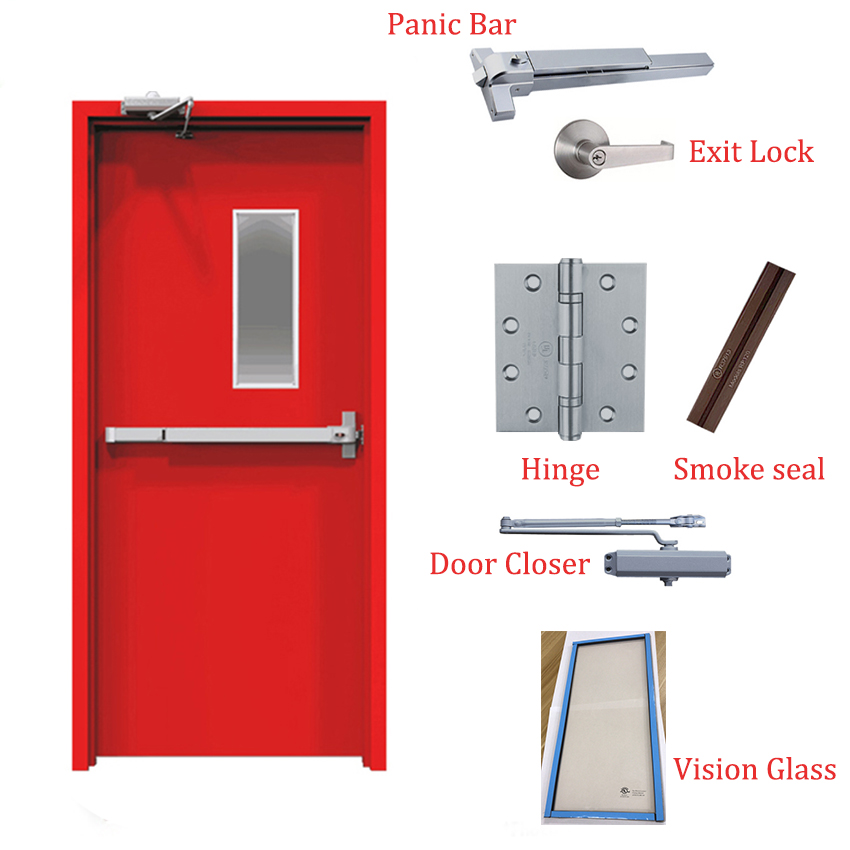

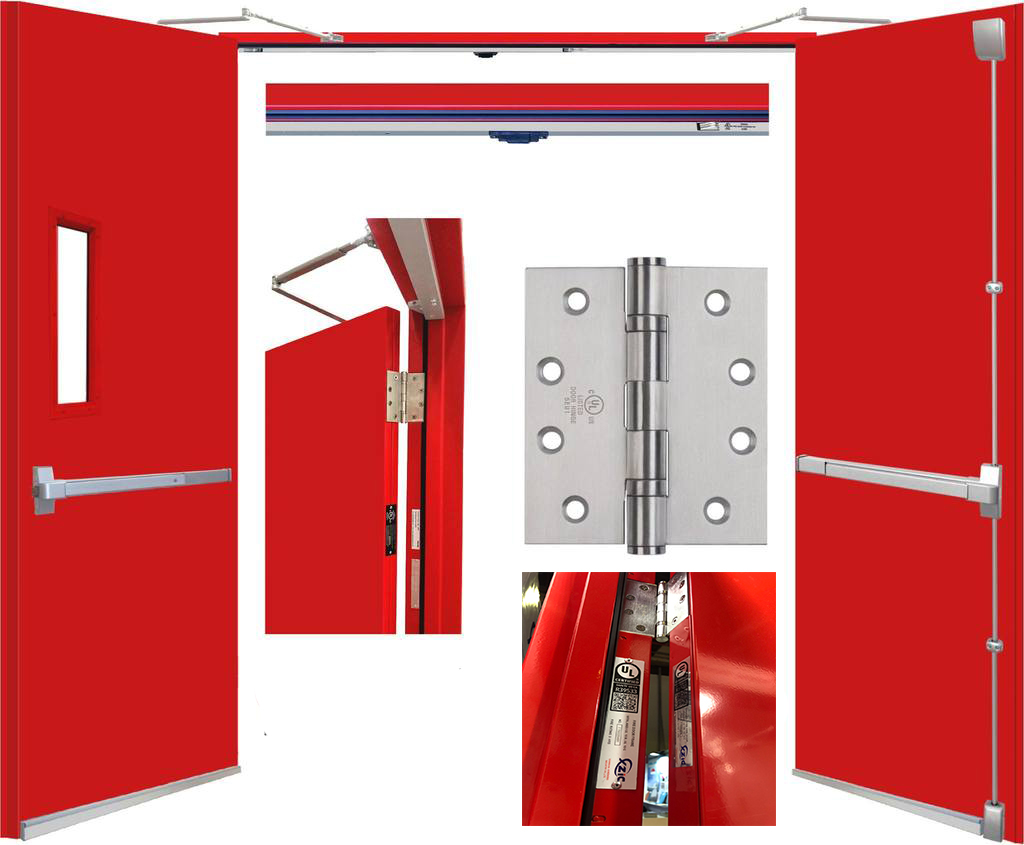

Construction
Parts | Material |
Door Frame | 0.9-1.5mm Galvanized Steel Sheet |
Door Leaf | 0.8-1.5mm Galvanized Steel Sheet |
Lock Type | SS304 |
Hing | UL SS 316/304 |
Door Closer | DGSETE |
Panic Bar | SS304 |
External Level Trim | SS304 |
Plush Bolt | Stainless |
Vision Glass | Safety glass or fire glass |
Door Sweep | EPDM or others |
Smoke Seal | EPDM or others |
Soundproof Seal | EPDM or others |
Threshold | SS304 |
Filling | High density fire perlite board |
Description

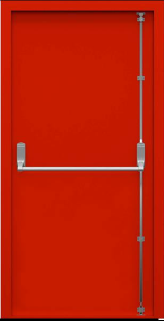

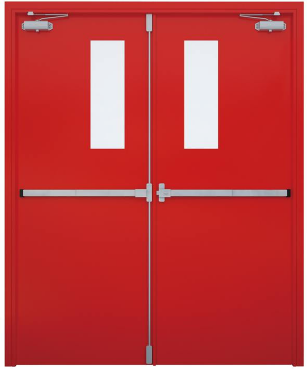

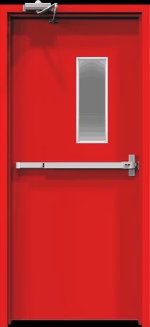

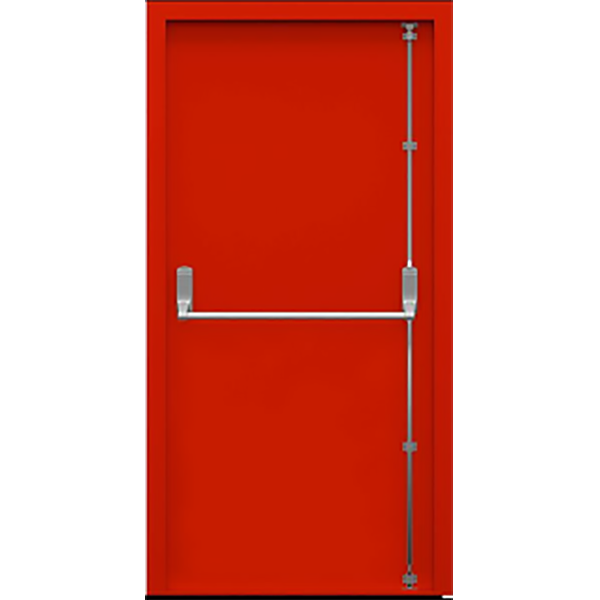

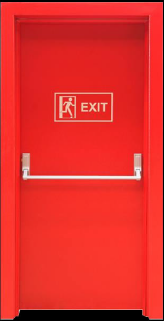

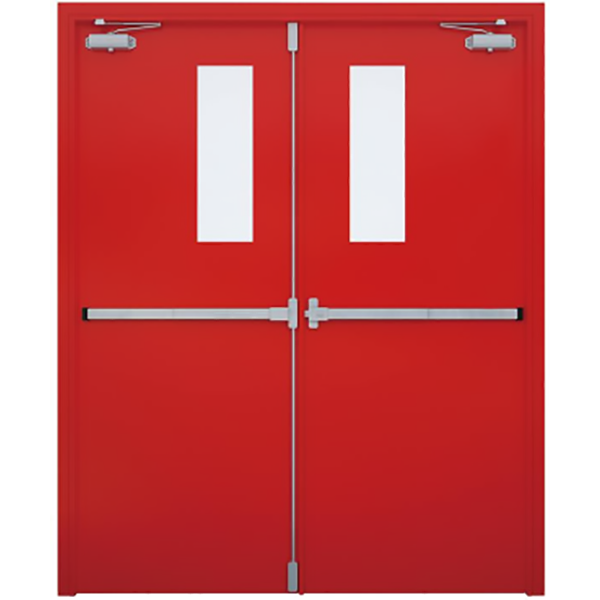

Door: Single leaf, double leaf, unequal double leaf..
Door Standard: UL 10B, UL10C, NFPA-252, EN-1634-1, BS-476-22.
Fire Rating: 20 minutes up to 3 hours
Finish: Electro powder coating, any color from RAL card.
Frame: Various kinds design of frame profiles are available, suitable for different installation environment.
Available with fire proof glazing and top light widely applied to Industrial, Commercial, Chemical, Nuclear and Medical Industries.

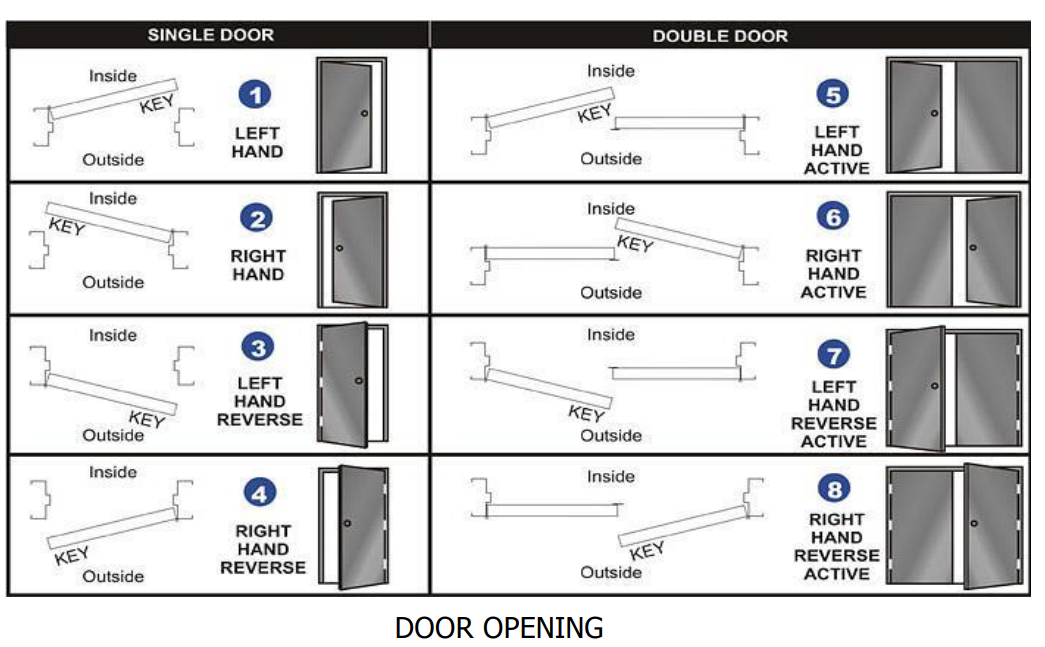

Door opening direction:
Available
Suitabilities
Fire Fighting Construction
