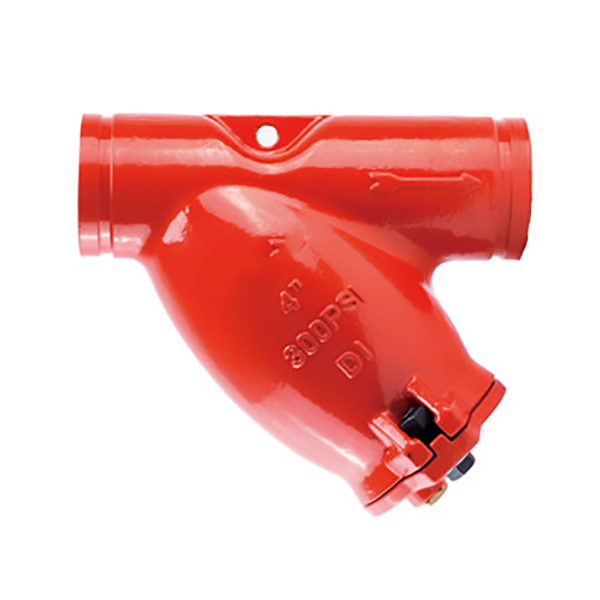

Grooved Y Strainer
Y strainer is shaped like a "Y and is used to filter, or strain, out particulates from steam, gas or liquid. This mechanical straining process is made possible via a filter element comprised of mesh, perforated metal, or a wedge wire straining element.
Construction
Parts | Material |
Body | Ductile Iron ASTM A536 Grade 65-45-12/EN GJS 450-10 |
Cover | Ductile Iron ASTM A536 Grade 65-45-12/EN GJS 450-10 |
Gasket | EPDM |
Screen | Stainless Steel AISI 304 |
Plug | Bronze |
Description
NPT or BSPT blowoff outlet on cover.
Excellent flow characteristics.
Minimum load loss.
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Grooved: AWWA C606.
Pressure Rating: PN10/16/25, 200psi/300psi,
Working Temperature: 0 ℃ - 100 ℃
Available
|
|
RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
