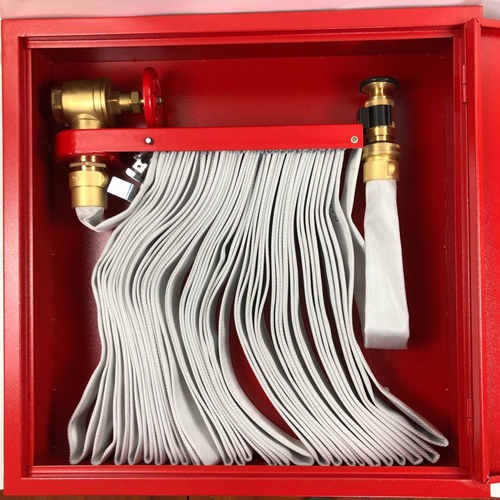

Fire hose rack assembly is usually installed at wet or dry riser outlet in buildings. It has a bracket used for hanging horizontal fire hose (30m). It is used to controll incipient fire and satisfy NFPA 14 requirements for select Class II and Class III standpipe systems, which is designed for one person operation.

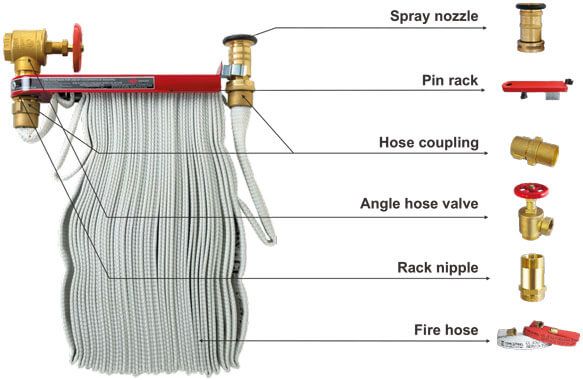

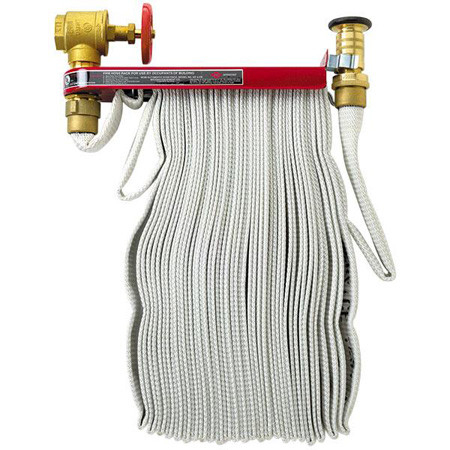

Hose rack assembly is the combination of 6 components: angle hose valve, fire hose, pin rack, rack nipple, hose coupling and nozzle. The swinging rack with movable pins features an easy and fast release mechanism for fire suppression operation.
After taking out the fire hose and spray nozzle, the automatic discharge mechanism will allow the water to flow past the fire hose.
Specification
Provides an immediate water source for fire control and suppression
Suitable for building occupant use and conforms to NFPA standards for Class II / III service
Permits one-person operation
| Model | Part Specification | Approval |
| America Type (NH) - 1.5" Fire hose rack assembly | 1.5" Brass Angel hose valve | UL FM |
| 1.5" Brass nipple with pin rack | ||
| 1.5"*30m single jacket, EPDM fire hose with NH brass coupling | UL FM | |
| 1.5" Brass adjustable jet/spray nozzle | UL FM | |
| America Type (NH) - 2.5" Fire hose rack assembly | 2.5" Brass Angel hose valve | UL FM |
| 2.5" Brass nipple with pin rack | ||
| 2.5"*30m single jacket, EPDM fire hose with NH brass coupling | UL FM | |
| 2.5" Brass adjustable jet/spray nozzle | UL FM | |
| B.S - 2.5" Fire hose rack assembly | 2.5" Brass Angel hose valve | UL FM |
| 2.5" Brass nipple with pin rack | ||
| 2.5"*30m single jacket, EPDM fire hose with NH brass coupling | UL FM | |
| 2.5" NST Brass jet/spray nozzle |
Suitabilities
Fire Fighting Construction
