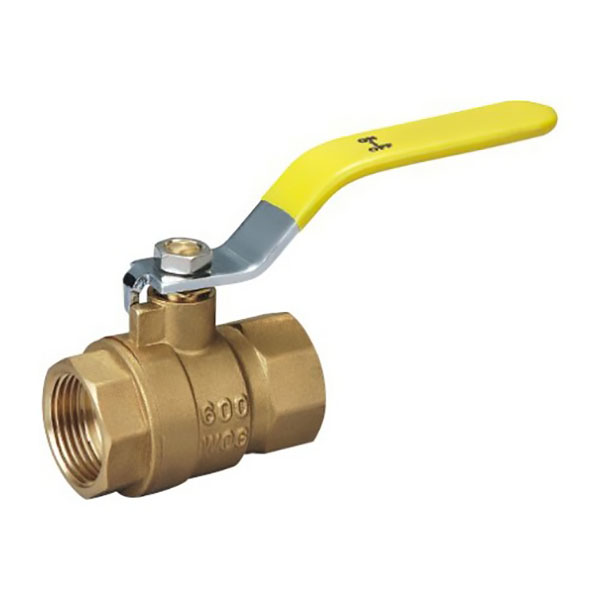

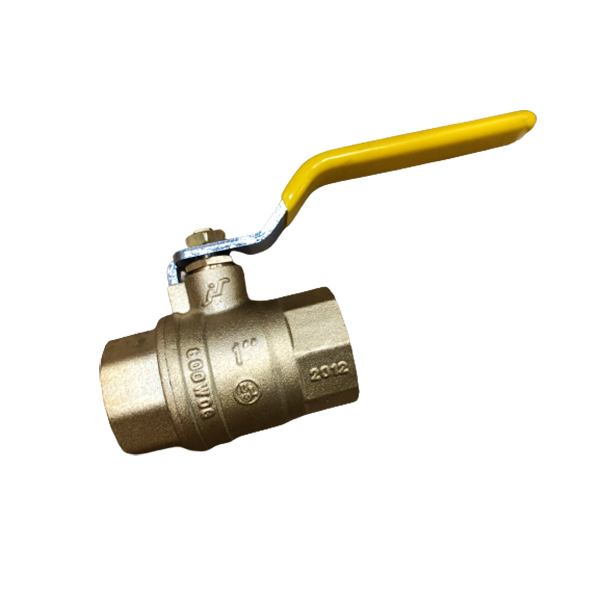

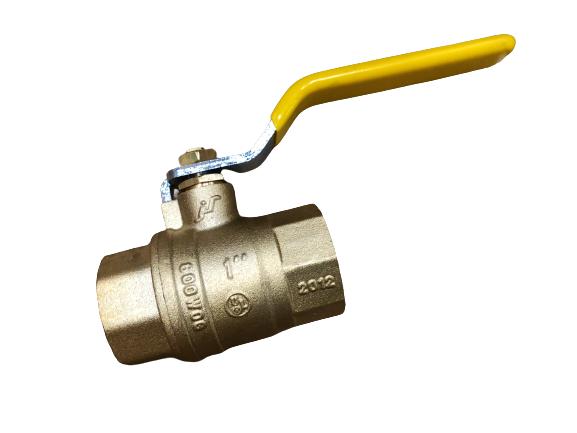

Brass Ball Valve

Brass Ball Valve

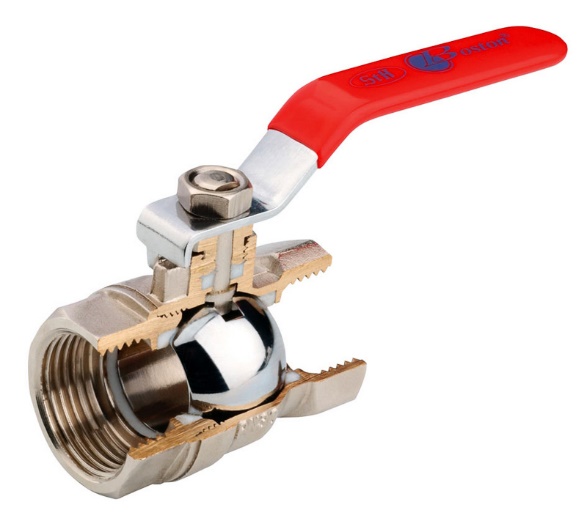

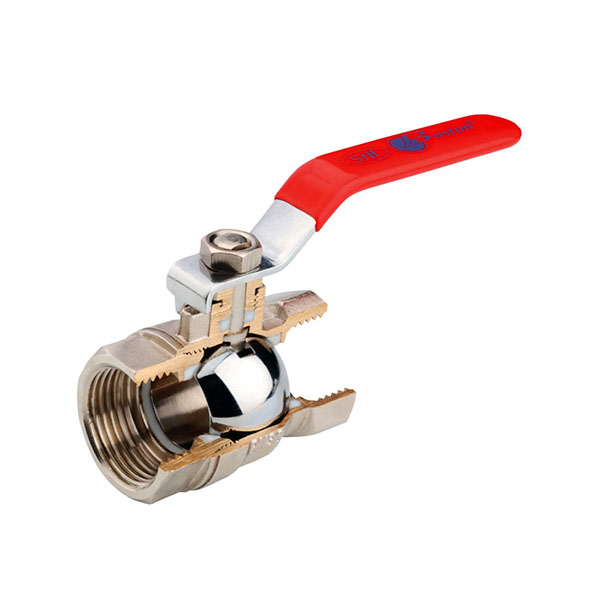

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked.

A ball valve is better suited for applications that require faster opening and closing speed or during emergencies due to its quarter turn on/off operation.

Brass Ball Valves are used in Residential and Commercial Plumbing, Water Well, HVAC and many other applications.

Construction

Description

• IPS Forged brass body.

• 600WOG (CSA)(1/2PSI 5G)

• NSF/ANSI 61

• Steel handle with plastic handle

• Range from 1/2” up to 2”.

Standards

• Connection Standard: ASME B1.20.1

• Working Pressure Rating: 300/600 psi.

• Working Temperature: -20 ℃C - 120 ℃.

Available

Suitabilities

         Water                   Fire Fighting                 Oil& Gas
