Double Door Grooved Check Valve
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
The Double Door Grooved Check Valve is a clip-on valve that consists of a valve body, a disc, a valve shaft and a spring. The butterfly check valve flap opens under the action of flowing medium from bottom to top, in the medium flows in from the inlet and the outlet flows out. When the inlet pressure is lower than the outlet pressure, the valve flap is automatically closed under the action of the differential pressure of the flow, the spring force and the weight of the valve disc to prevent the medium from flowing backward.
Construction
Parts | Material |
Body | Ductile Iron ASTM A126 Grade 65-45-12/EN GJS 450-10 |
Seat Ring | EPDM |
Disc | Stainless Steel AISI 304 |
Spring | Stainless Steel AISI304 |
Gasket | PTFE |
Shaft | Stainless Steel AISI 420 |
Description
Spring assisted for better dynamic behavior.
Perfect tightness.
Range from 8"DN200 up to 14" DN350.
Fusion bonded epoxy coating 200 microns min.
Standards
o Grooved Ends: AWWA C606
o Pressure Rating: PN10/16/25, 300psi,
o Working Temperature: 0 ℃ - 100 ℃
Available
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
|
|

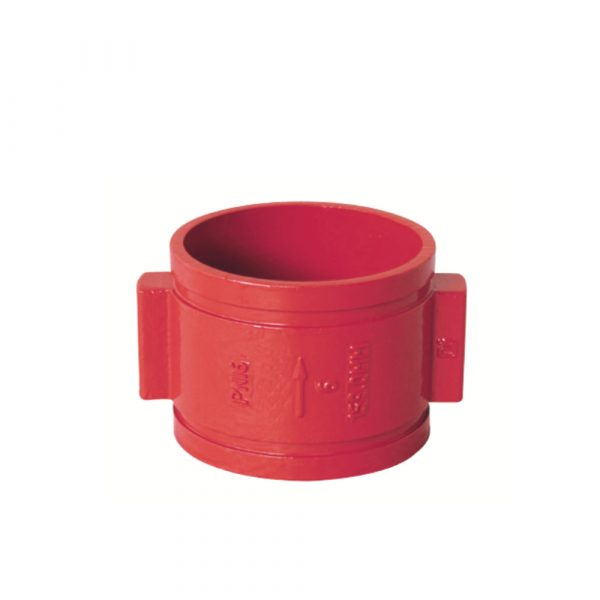

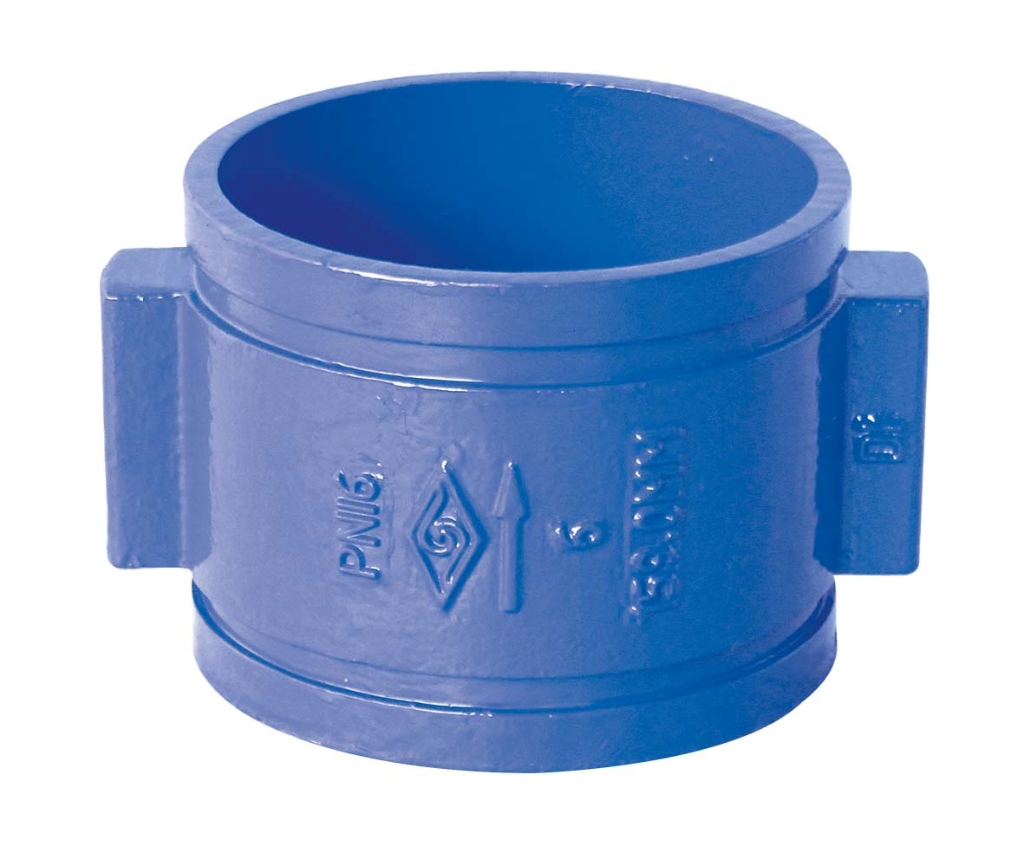

RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
