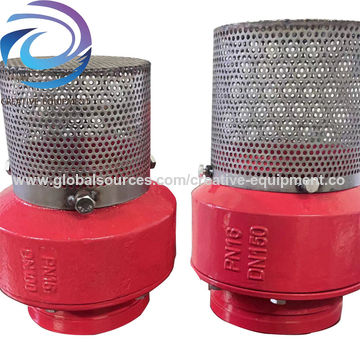

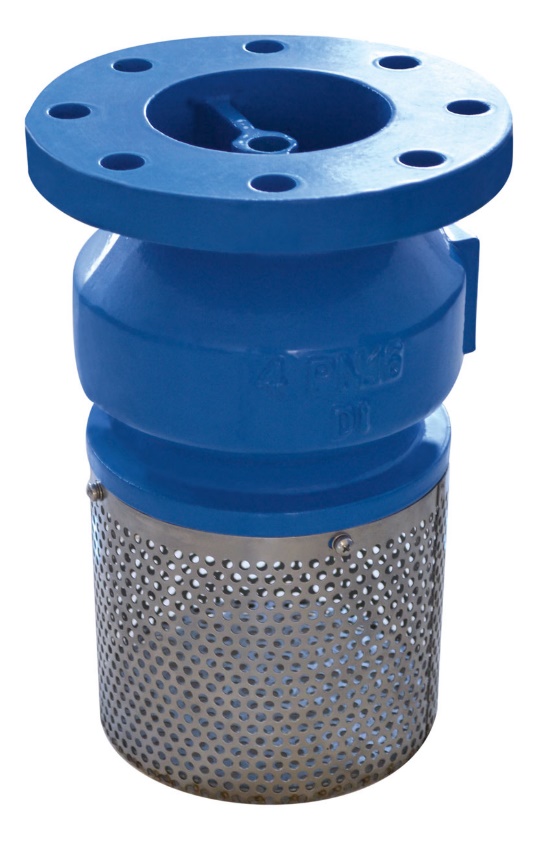

Foot Valve
A foot valve is a type of check valve that is typically installed at a pump or at the bottom of a pipe line (hence the name). Foot valves act like ball check valves, but have an open end with a shield or screen over it to block debris from entering the line.
Construction
Parts | Material |
Body | Ductile Iron ASTM A126 Grade 65-45-12/EN GJS 450-10 |
Bonnet | Ductile Iron ASTM A126 Grade 65-45-12/EN GJS 450-10 |
Disc | Ductile Iron+ EPDM |
Spring | Stainless Steel |
Support | Bronze |
Shaft | Stainless Steel |
Description
Silent operation, positive seating and full flow area.
Perfect tightness.
Range from DN50 up to DN300.
Epoxy paint 200 microns min.
Standards
Flanged: EN1092-2, ASME B16.1 Class 125.
Pressure Rating: PN16, 300psi,
Working Temperature: -10 ℃ - 100 ℃
Available
|
|
| RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
