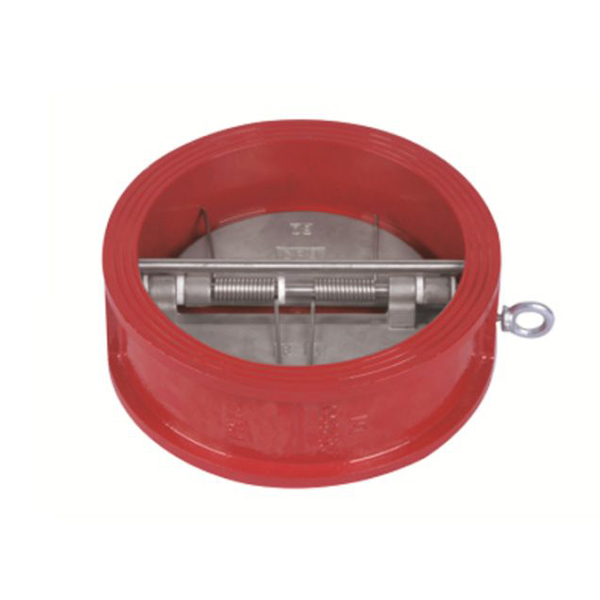

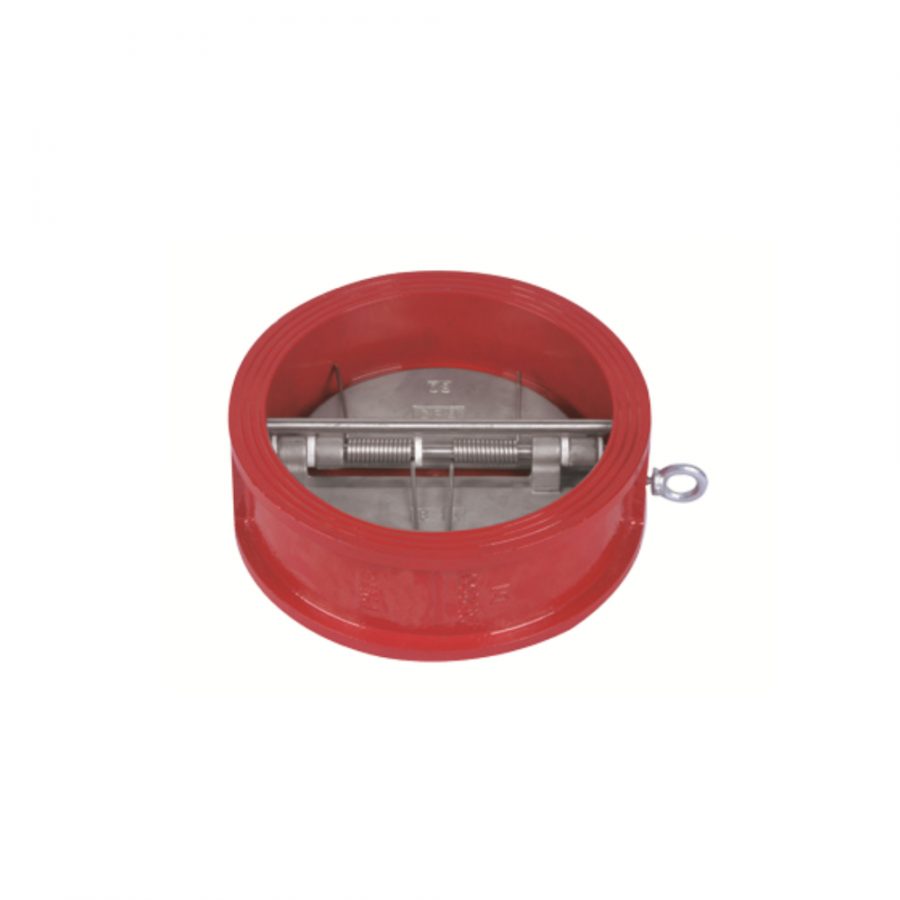

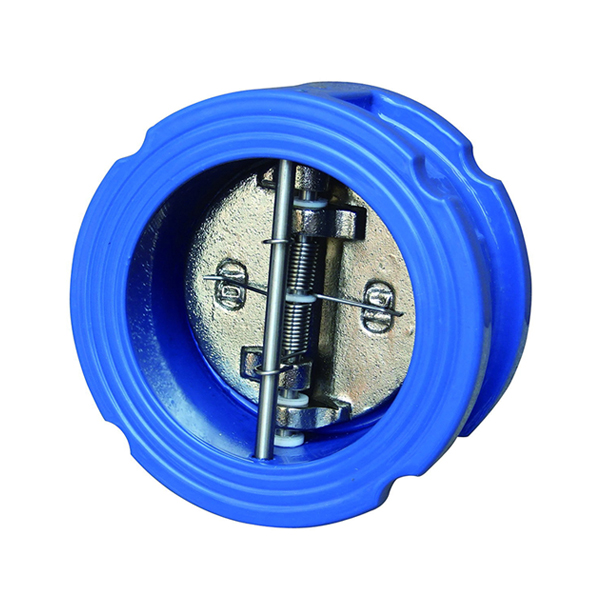

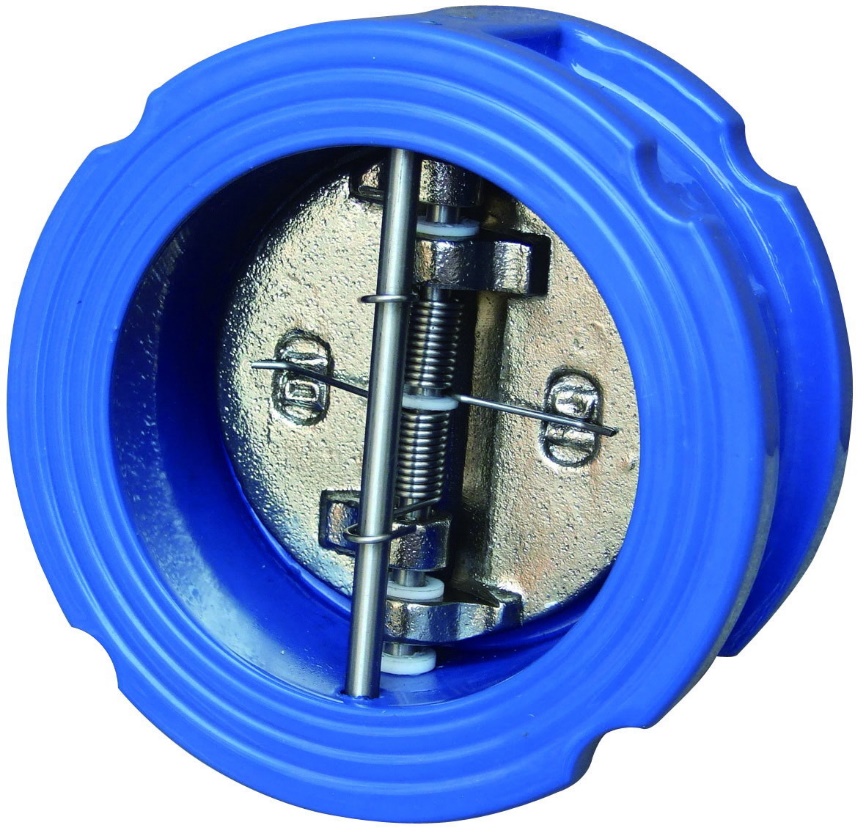

Wafer Double Door Check Valve
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
Double Door Check Valves are designed to automatically prevent back-flow in systems where it is desirable to permit flow in one direction and prevent flow in the opposite direction.
Construction
Parts | Material |
Body | Ductile Iron ASTM A126 Grade 65-45-12/EN GJS 450-10 |
Seat Ring | EPDM/ NBR |
Disc | Ductile Iron / Stainless Steel/ Bronze |
Spring | Stainless Steel AISI304 |
Hinge Pin | Stainless Steel |
Stop Pin | Stainless Steel AISI 420 |
Description
Spring assisted for better dynamic behavior.
Perfect tightness.
Range from DN50 up to DN600.
Epoxy paint 200 microns min.
Standards
o Flanged: EN1092-2, ASME B16.1 Class 125, AS 2129.
o Pressure Rating: PN10/16/25, 300psi,
o Working Temperature: -10 ℃ - 100 ℃
Available
| |
RAL 3000 | RAL 5017 |
Suitabilities
Water Fire Fighting
