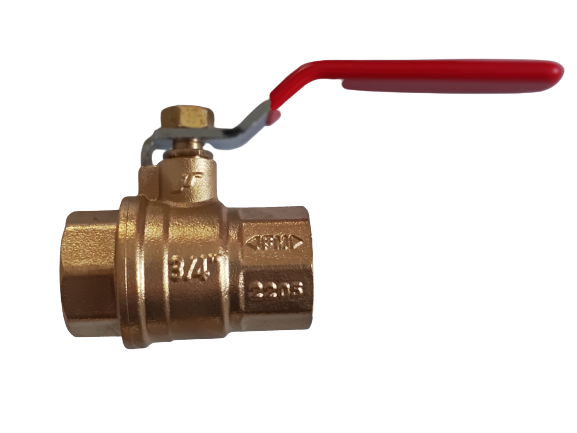

Lead Free Bronze Ball Valve
A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked.
A ball valve is better suited for applications that require faster opening and closing speed or during emergencies due to its quarter turn on/off operation.
Bronze/ Brass Ball Valves like butterfly valve are used in Residential and Commercial Plumbing, Water Well, HVAC and many other applications.
Construction
Parts | Material |
Body | Brass/Bronze |
Seat Retainer | Brass/Bronze |
Ball | Brass/Bronze |
Stem | Brass/Bronze |
Bonnet | Brass/Bronze |
Handle | Steel |
Description
IPS Forged brass body.
600WOG (CSA)(1/2PSI 5G)
NSF/ANSI 61
Steel handle with plastic handle

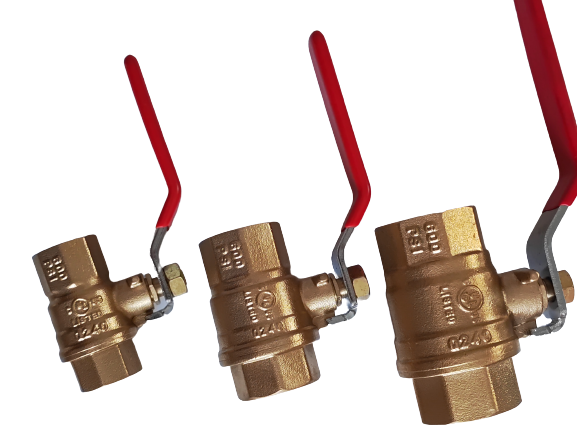

Range from 1/2” up to 2”.
Standards
Connection Standard: ASME B1.20.1
Working Pressure Rating: 300/600 psi.
Working Temperature: -20 ℃C - 120 ℃.
Available
|
|
Suitabilities
Water Fire Fighting Oil& Gas
