Single Jacket Reel Fire Hose

Single Jacket Fire Hose

JYLONG provide butterfly valve, gate valve, check valve, hydrant valve, etc with UL FM certificates.

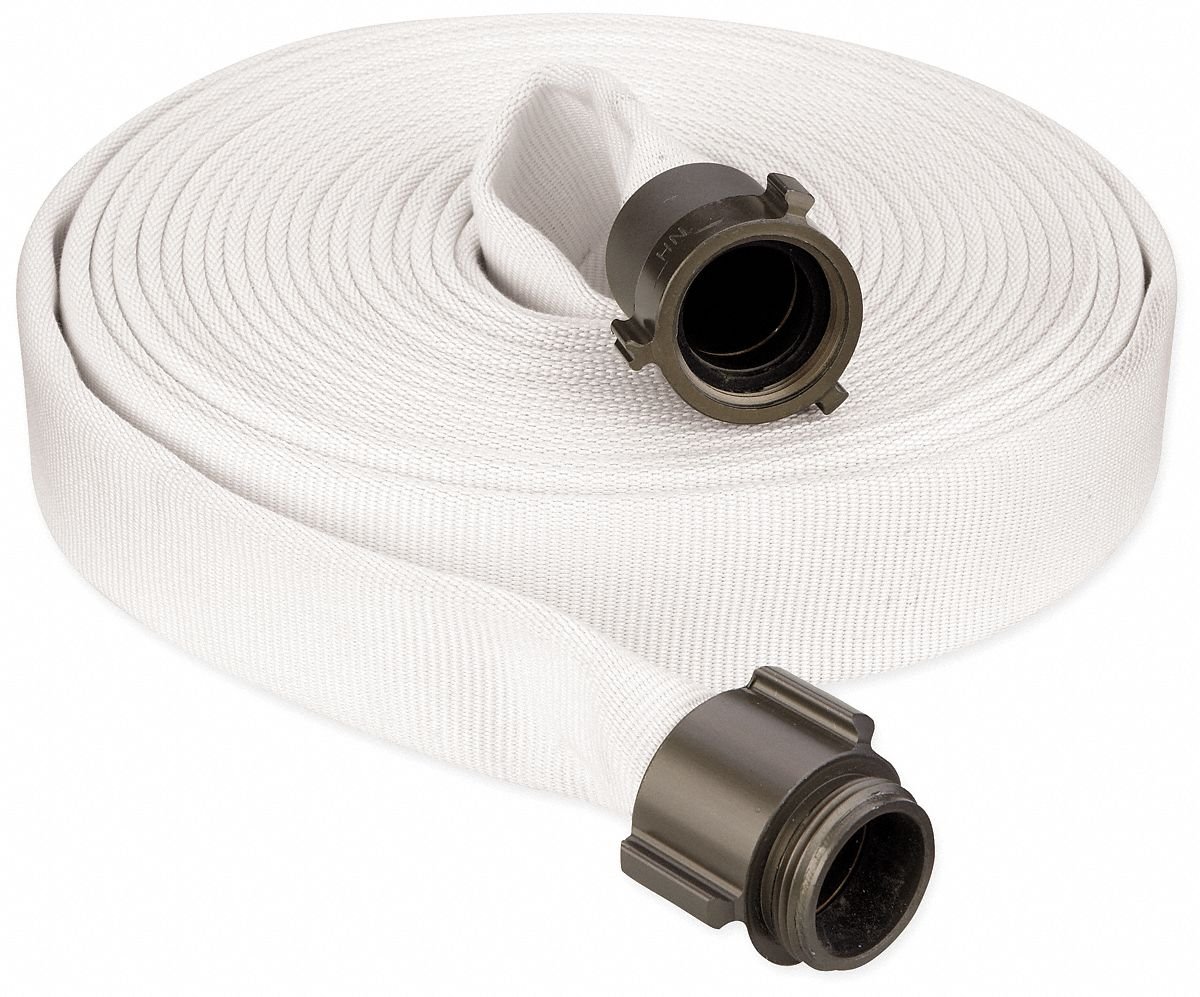

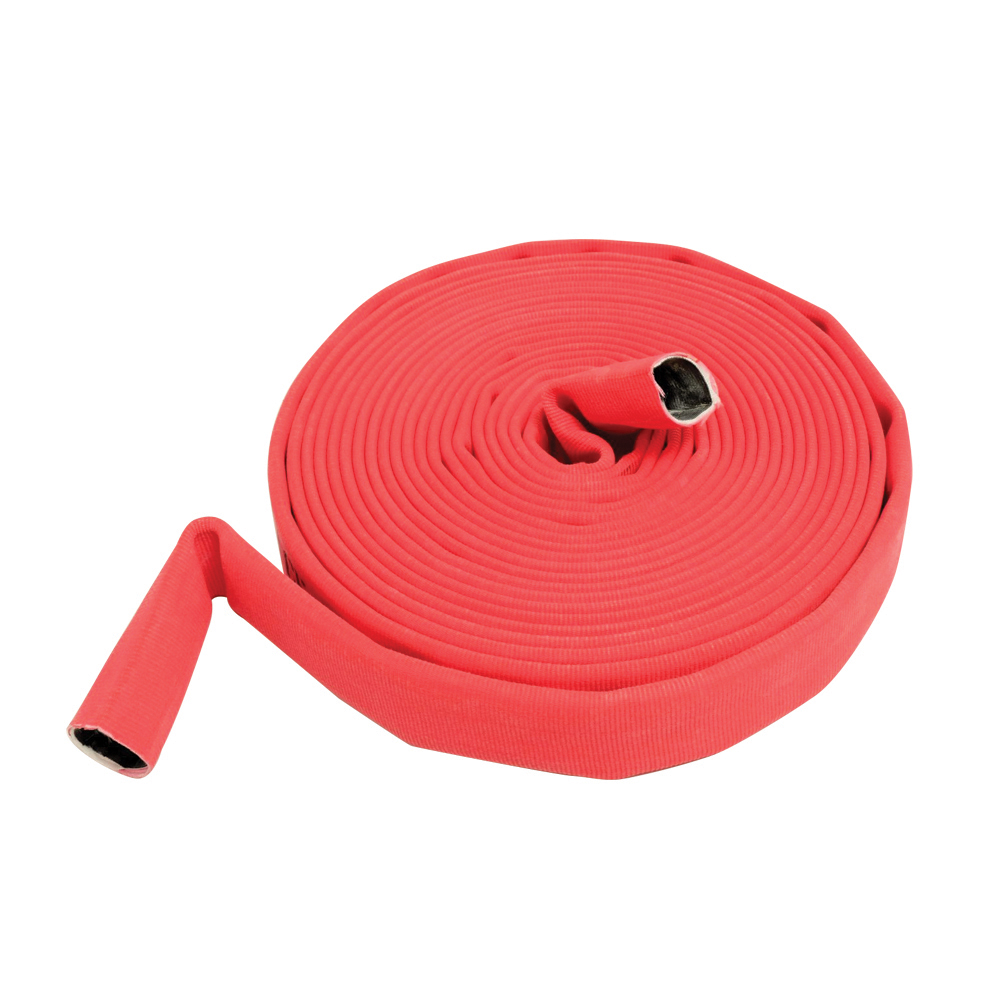

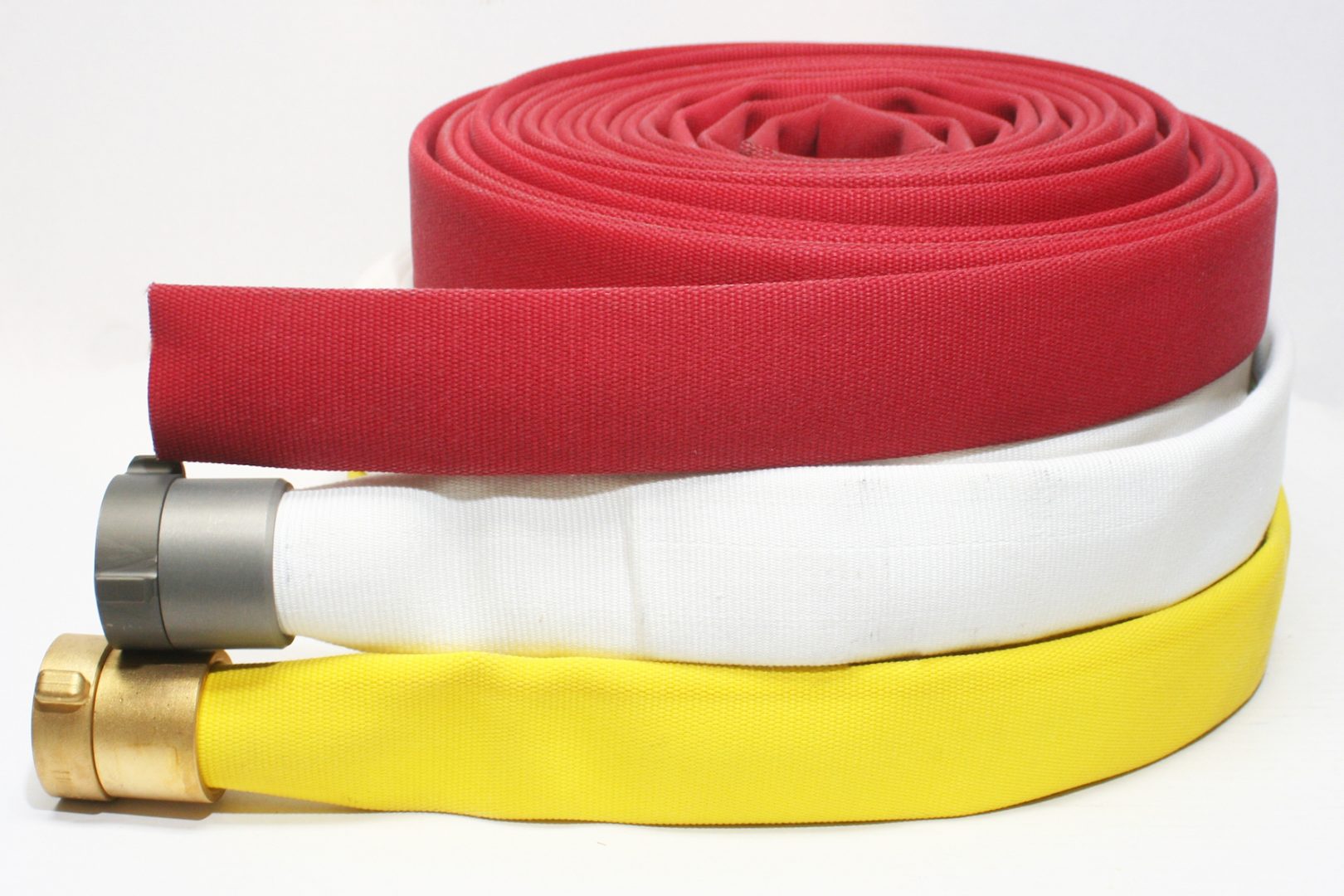

A single jacket fire hose has one woven polyester jacket glued to the outside of the rubber liner. It is flexible, abrasion resistant, mold and mildew resistant. So a single jacket fire hose can protect the rubber liner if the hose is only being used occasionally for light use, for a temporary job or on a non-abrasive surface such as grass.

Single jacket hose can save cost in the right situation. It can also save weight which can be important in applications such as fighting forestry fires where the hose is often carried on foot by firefighters.

Specification

• Fire Hose Type: Single Jacket;

• Hose Inside Dia.: 1 1/2 ", 2", 2 1/2";

• Hose Length: 50 ft/ 75ft/ 100ft;

• Hose Color: White, Yellow, Red, etc;

• Hose Tube Material: EPDM/ TPU;

• Hose Cover Material: Polyester;

• Burst Pressure: 600 psi /700 psi;

• Max. Working Pressure @ 70 F:250 Psi;

• Temp. Range: -40°C to 70°C;

• Standards: UL 19, NFPA 1961 / 1962;

• Hose Coupling: Brass / Aluminum, rocker lug swivel, NH

• Hose Configuration: Coupled Assembly;

• Coupling Lug Style: Rocker;

• Compatible Chemicals: Fresh Water;

Suitabilities

Fire Fighting               Construction
