Threaded Oblique Landing Valve

Threaded Oblique Landing Valve

JYLONG provide butterfly valve, gate valve, check valve, hydrant valve, etc. The landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply.

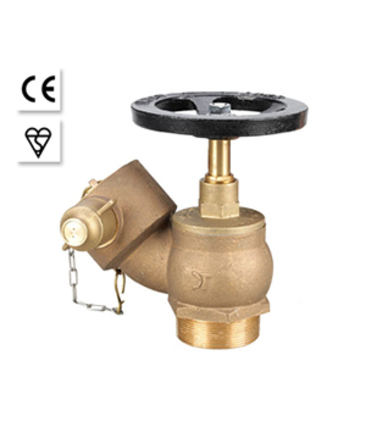

Oblique type wet landing valve is a kind of wet landing valve with 45° direction outlet to inlet. It is normally located at discharge points of a tall building where the supply of water is via wet riser. And layflat hose is coupled into the landing valve to provide water to the location of the fire.

Specification

• Test pressure is 22.5 bar

• BSI Kitemark and LPCB certified

• Body material made of copper alloy

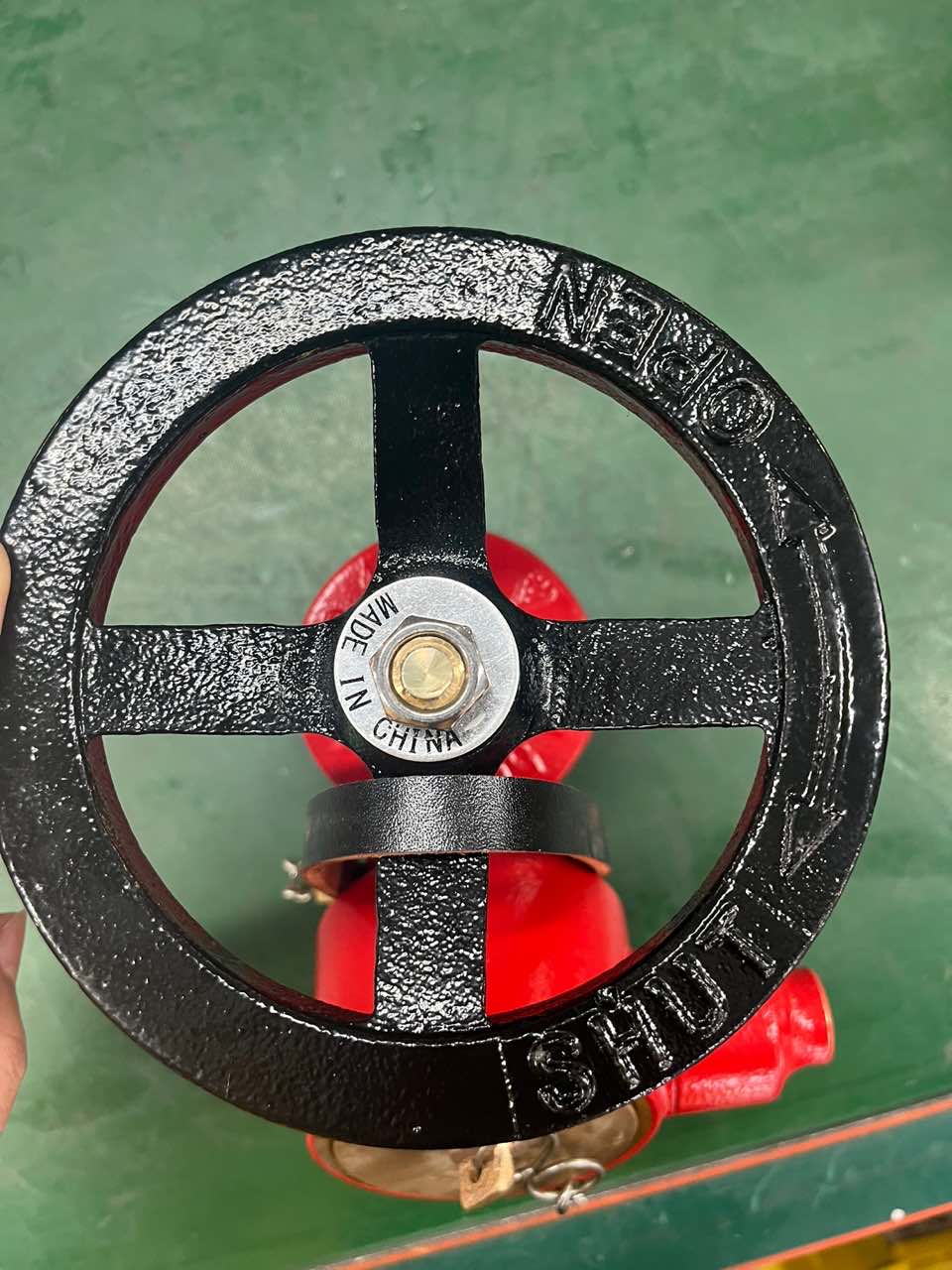

• Hand wheel material made of grey cast iron / aluminium alloy

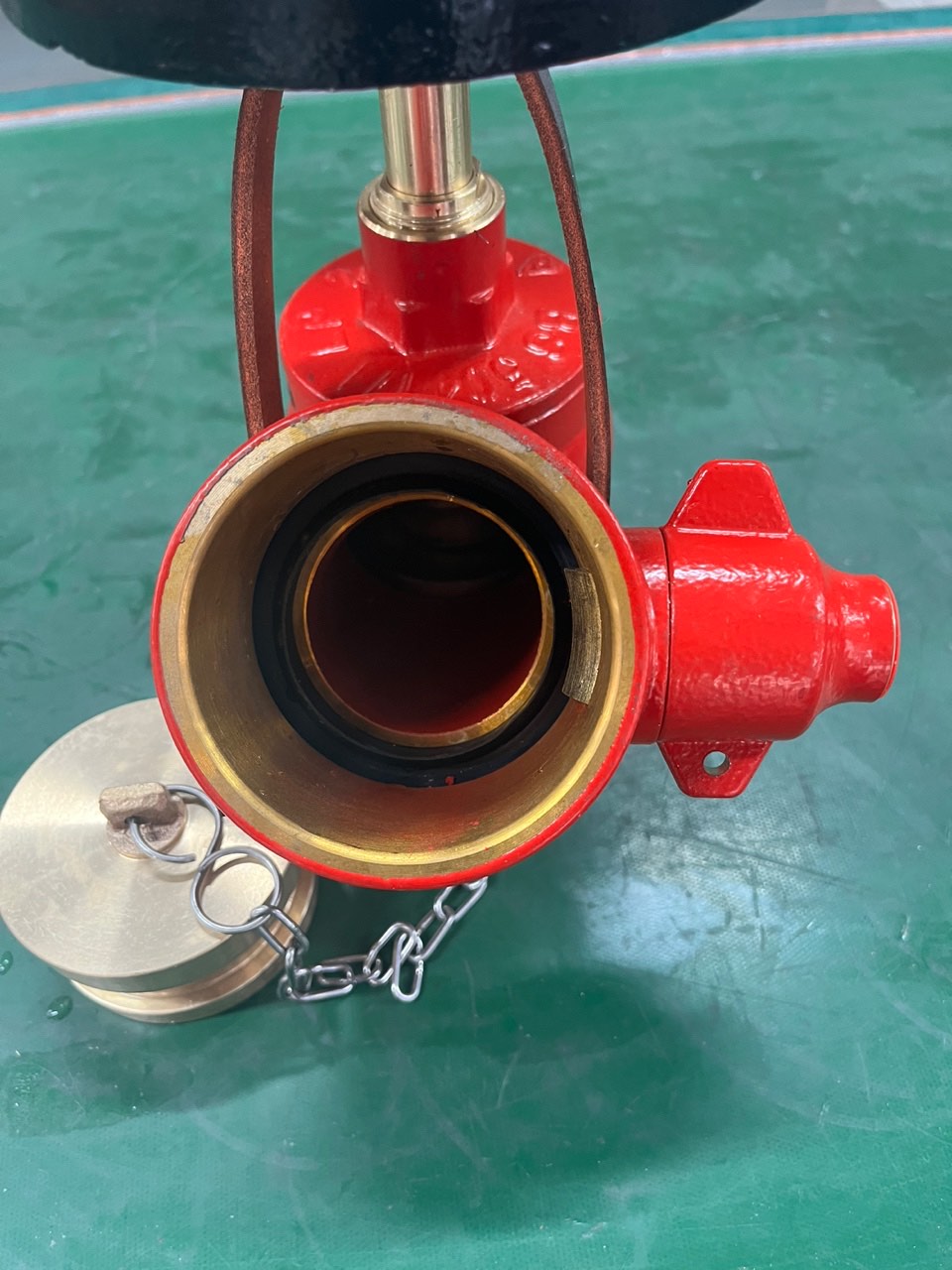

• Blank cap material made of copper alloy / plastic

• Chain material made of SS 304


• Possible to replace the gland seal when under pressure with the valve fully closed

• Disc facing rubber is of replaceable type

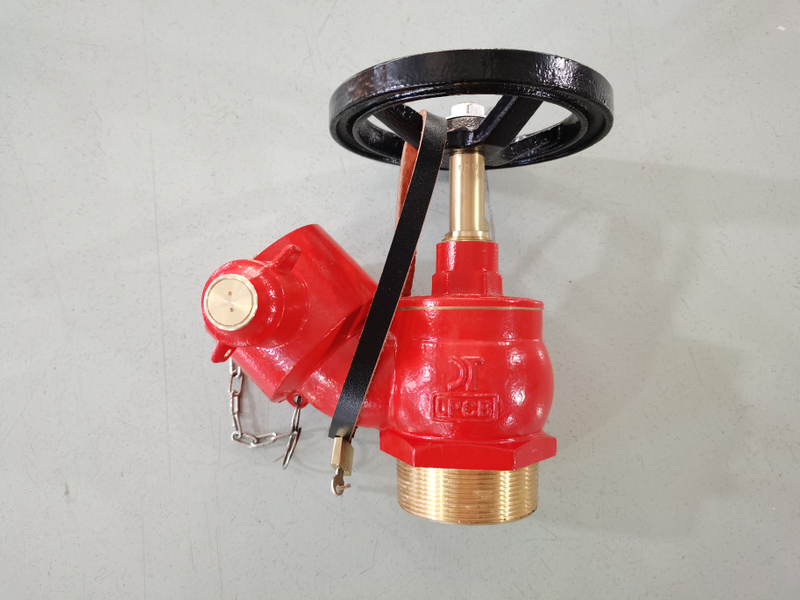

• Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use

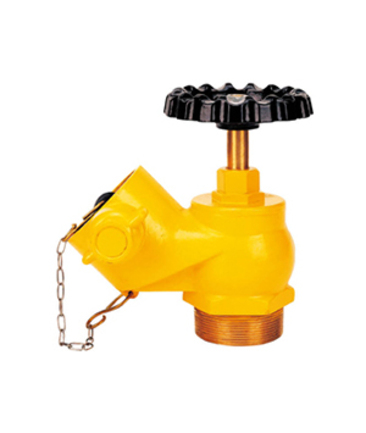

• The hand wheel is BLACK painted and body to Red / Yellow

• Model Size: DN50, DN65

• Flow Rate: ≥8.5 L/S

Suitabilities

Fire Fighting               Construction
