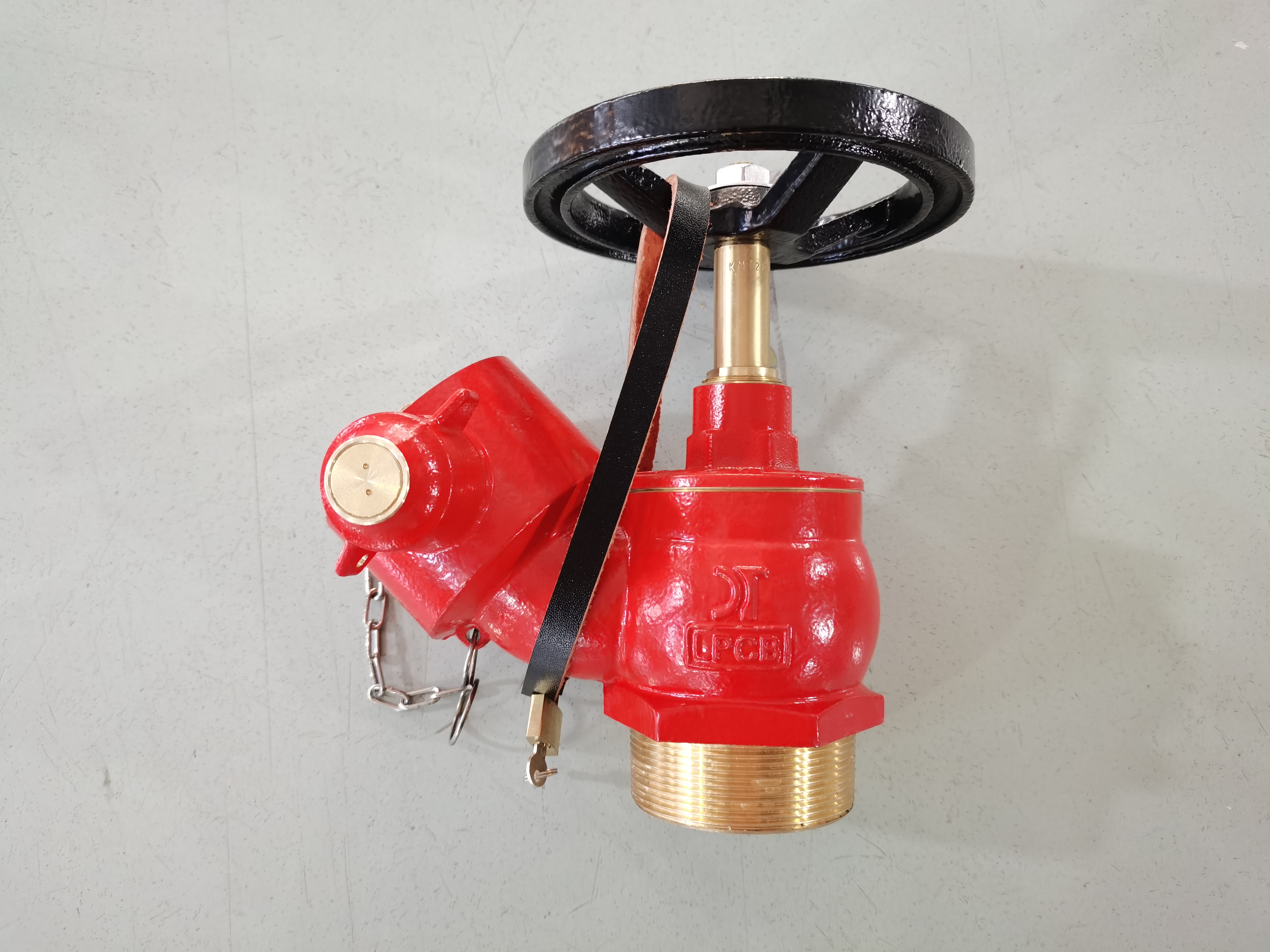

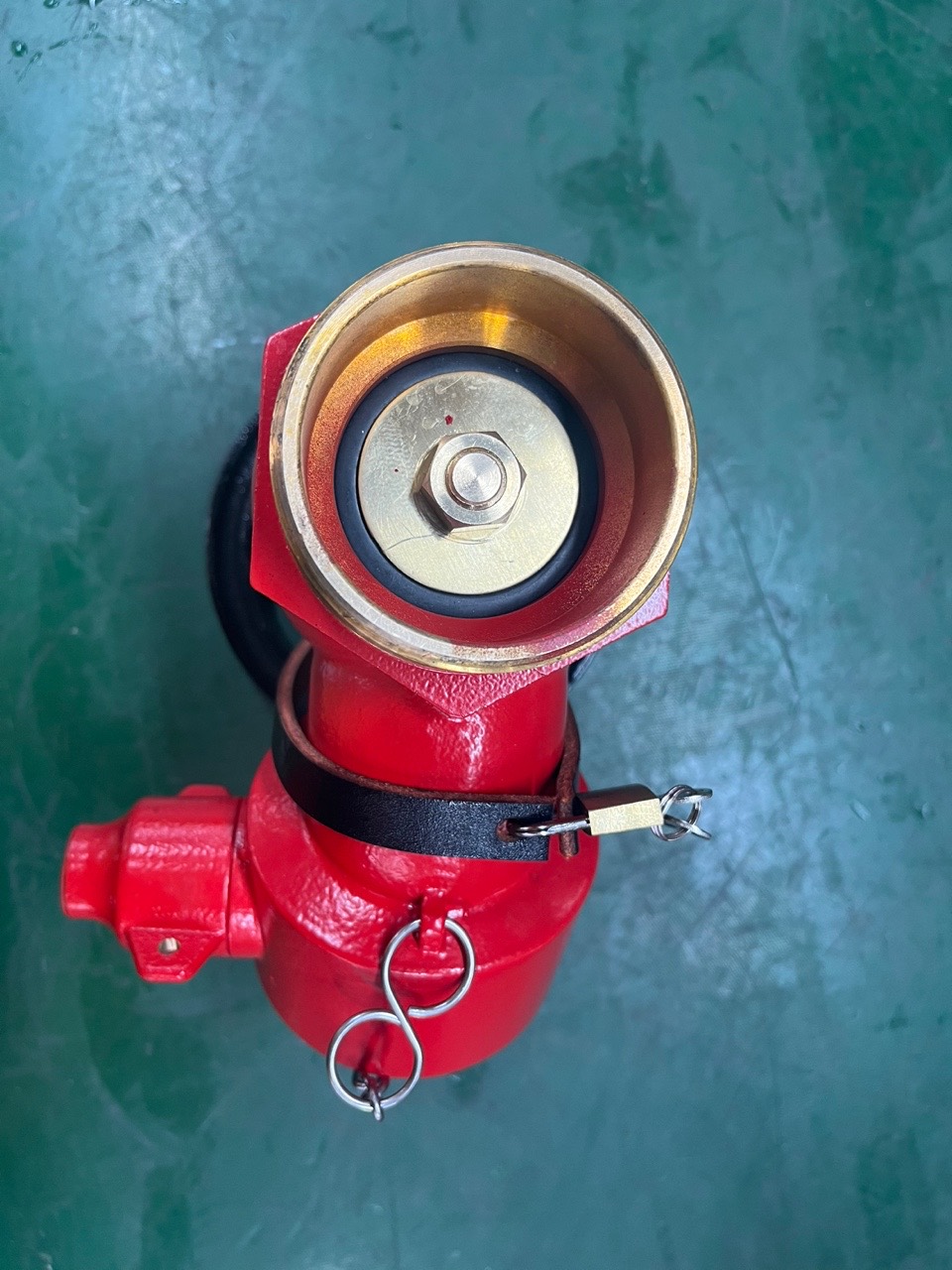

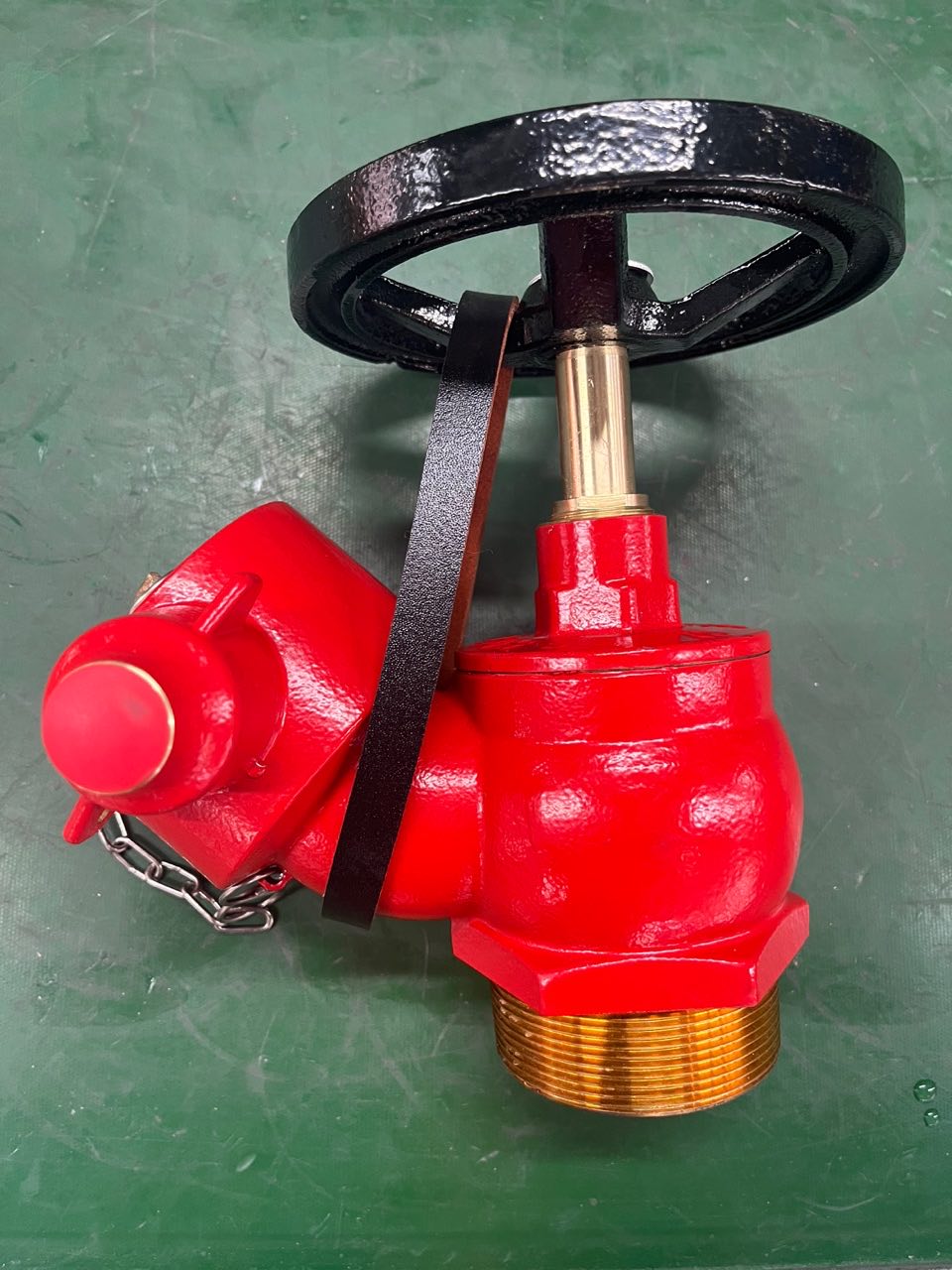

Threaded Landing Valves were Delivered

The threaded hydrant valves were delivered at Oct 31. They are BSI Kitemark and LPCB certified.

• Test pressure is 22.5 bar

• Body material made of copper alloy

• Hand wheel material made of grey cast iron / aluminium alloy

• Blank cap material made of copper alloy / plastic

• Chain material made of SS 304


• Possible to replace the gland seal when under pressure with the valve fully closed

• Disc facing rubber is of replaceable type

• Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use

• The hand wheel is BLACK painted and body to Red

• Model Size: DN65

• Flow Rate: ≥8.5 L/S

Oblique type wet landing valve is a kind of wet landing valve with 45° direction outlet to inlet. It is normally located at discharge points of a tall building where the supply of water is via wet riser. And layflat hose is coupled into the landing valve to provide water to the location of the fire.

If you have any more comments, please don’t hesitate to contact with us.
