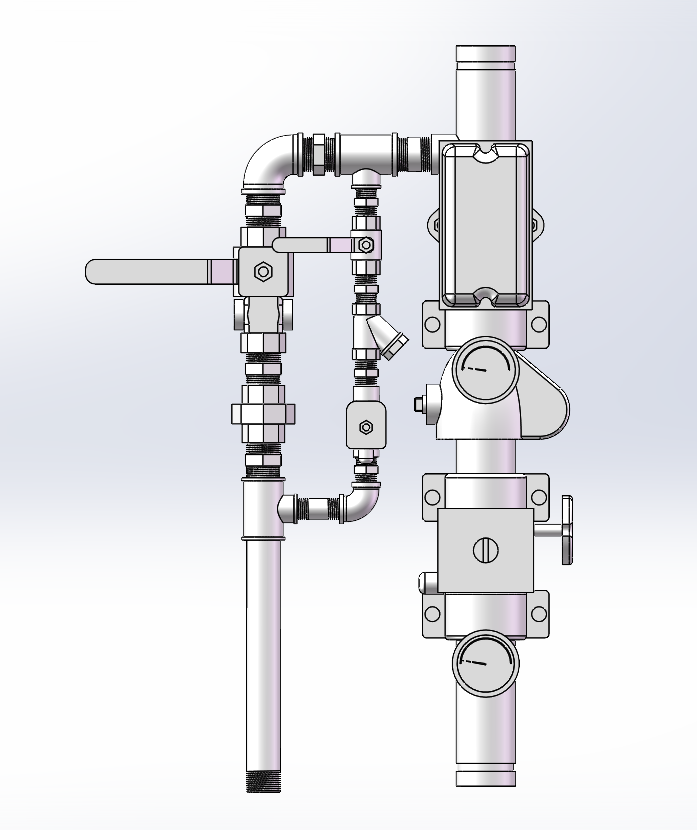

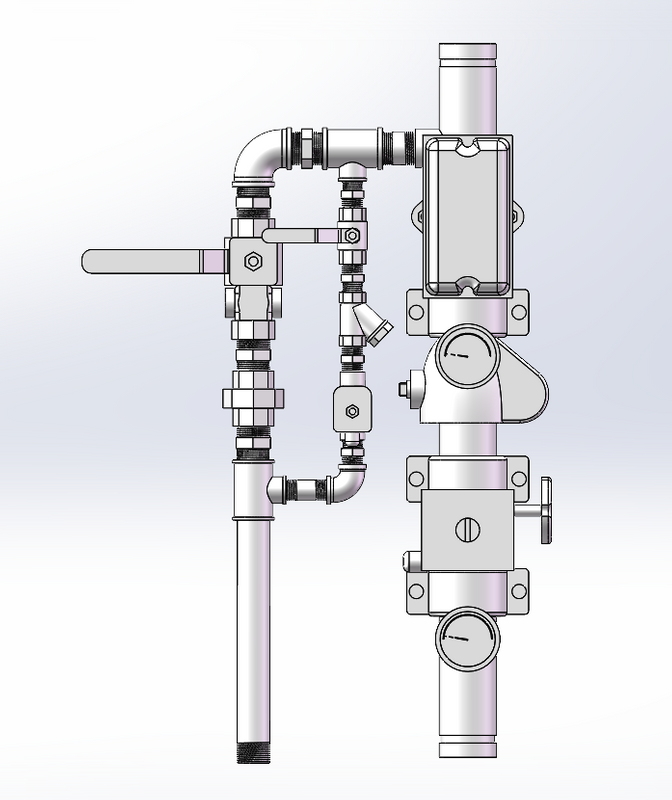

The assembly unit, which comprises high quality valve components.
Components are UL FM approved.
The unitis assembled on a panel and includes a sturdy bracket to facilitate easy installation.
Adaptors are available to connect to different pipe sizes and types.
Professionally pre-assembled and factory tested.
Reduced installation time and ease of maintenance.
Hydrostatic pressure tested before delivery to 2100 KPa for 1min.
Comes with or without auto drain option, panel mounted.
Assemblies can be made to your specification.
Solenoid and booster assemblies also available.
Also available in cabinets.
Available in right-handed or left-handed configurations, featuring a mirrored port for easy field changes.
Pressures up to 300 psi | 2068 kPa | 20.6 bar.
Sizes from 2– 21/2″ | DN50 – DN65.
| Main Stop Valve | Bronze butterfly valve with tamper switch, UL/FM approved. |
| Riser Check Valve | Soft seat check valve-epoxy coated ductileiron, UL/FM approved. |
| Test & Drain Valve | Brass with option for test anddrain,UL/FM approved. |
| Flow Switch | Water flow switch with retard, UL/FM approved. |
| Solenoid Valve | Brass body, UL/FM approved. |
| Pressure Gauge | Two high quality glycerin filled gauges showing mains and system pressure at 0/2500 Kpa |
| Pipe Work | Galvanised threaded/roll grooved pipe to AS41182.1, UL/FM approved. |
| Testing | Hydrostatic pressure test before delivery |
| Panel | Available in aluminum, electro-galvanized sheet and stainless steel. Off-white powder coated finish with other finishes available upon request. |
Suitabilities
Water Fire Fighting Oil& Gas Construction
