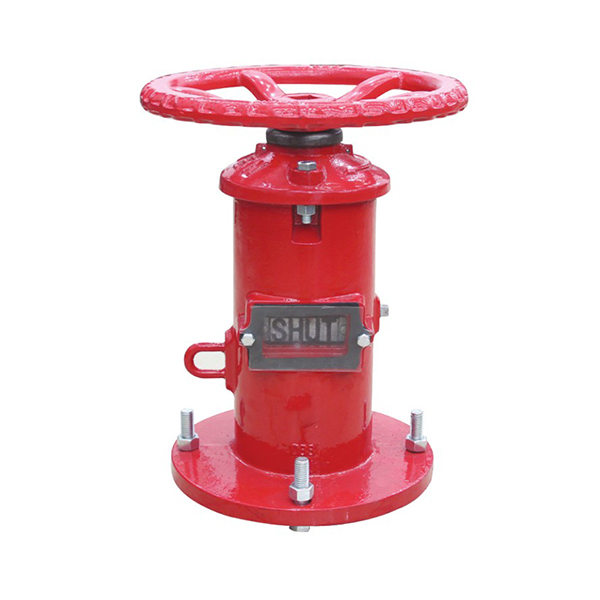

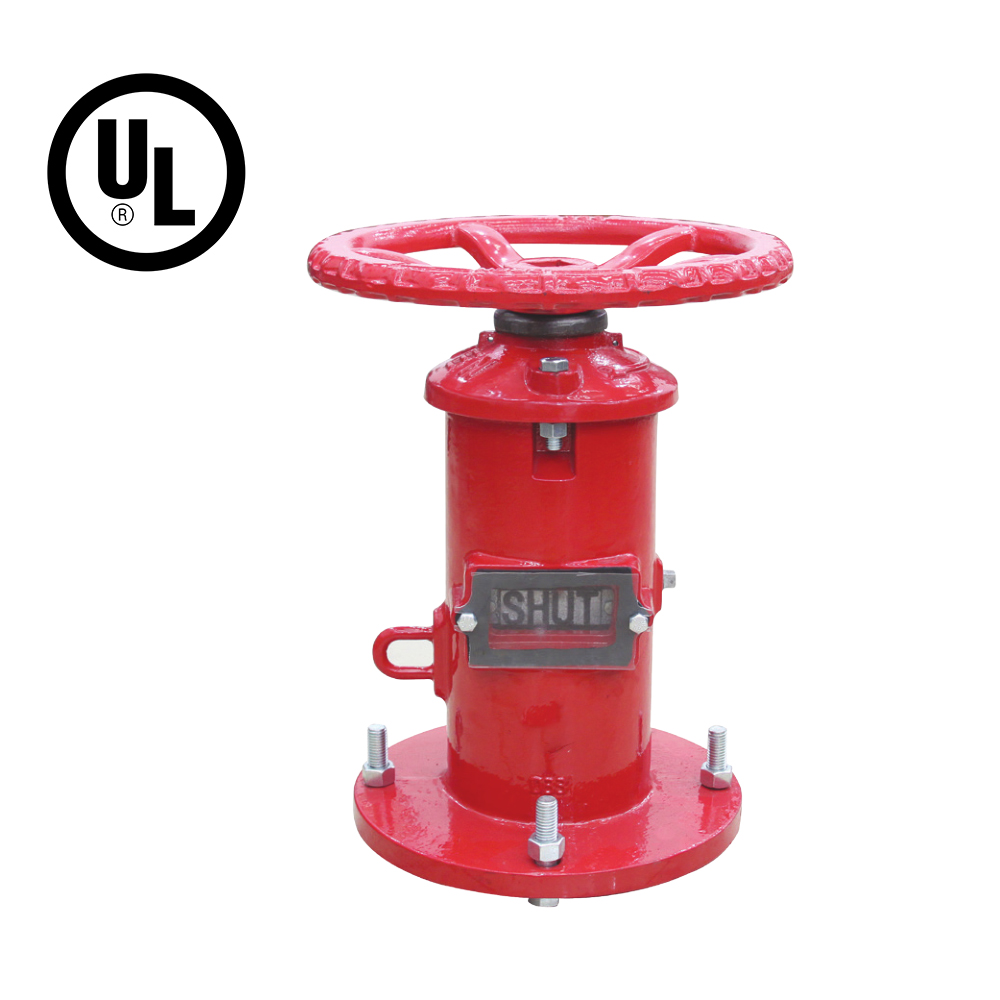

Wall Indicator Post
An indicator post, or an indicator post valve, is a valve assembly used to open or close the water supply main to a fire protection system.
The wall indicator is used to operate and indicate the switch installed in the back gate valve of the wall.
Construction
Parts | Material |
Body | Ductile Iron/ Cast Iron |
Cover | Ductile Iron/ Cast Iron |
Hand Wheel | Ductile Iron ASTM A536 Grade 65-45-12 |
Eye Bolt | Carbon Steel Zinc Plated ASTM A105 |
Operating Nut | Stainless Steel AISI 304/ Bronze |
Window Class | Plexiglas |
OPEN/SHUT Sign | Cast Aluminum |
Target Carrier Nut | Stainless Steel AISI 304/ Bronze |
Description
Indicates if the valve is in the open or shut position.
Easily adjustable indicator OEPN and SHUT targets.
Used to operate a valve installed behind a wall.
Can be supplied to open left or right.
Standards
Valve: NFPA 24
Sleeve pipe optional
Size: DN50-DN300
Working Temperature: 0℃-80℃
Suitabilities
Fire Fighting
