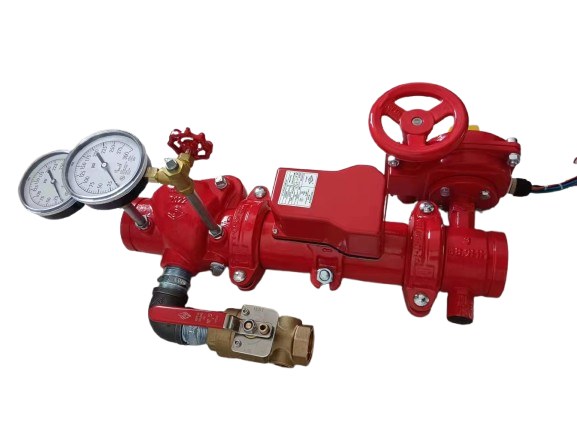

Zone Control Valve Assembly

Zone Control Valve is a system designed to separate the area in case of maintenance and to get the indication of fire zone on a combination of Butterfly valve, Flow Switch, Pressure Gauge and Test & Drain Valves.

They are assembled on fire pipeline to separates the fire area into small distribution zone for indication and control. Because of fire sprinkler or test valve activation, the indicator detects water flow and transmits signal to control system. After fire suppression, butterfly valve gets signal, to indicate manual shut down the water flow for recovering the system.

Control Valve Assembly Features

• The assembly unit, which comprises high quality valve components.

• Components are UL FM Approved.

• The unitis assembled on a panel and includes a sturdy bracket to facilitate easy installation.

• Adaptors are available to connect to different pipe sizes and types.


• Professionally pre-assembled and factory tested.

• Reduced installation time and ease of maintenance.

• Hydrostatic pressure tested before delivery to 2100 KPa for 1min.

• Comes with or without auto drain option, panel mounted.

• Assemblies can be made to your specification.

• Solenoid and booster assemblies also available.

• Also available in cabinets.

• Available in right-handed or left-handed configurations, featuring a mirrored port for easy field changes.

• Pressures up to 300 psi | 2068 kPa | 20.6 bar.

• Sizes from 2– 21/2″ | DN50 – DN65.

Control Valve Assembly Specifications

Suitabilities

                                        Water                 Fire Fighting            Oil& Gas              Construction
