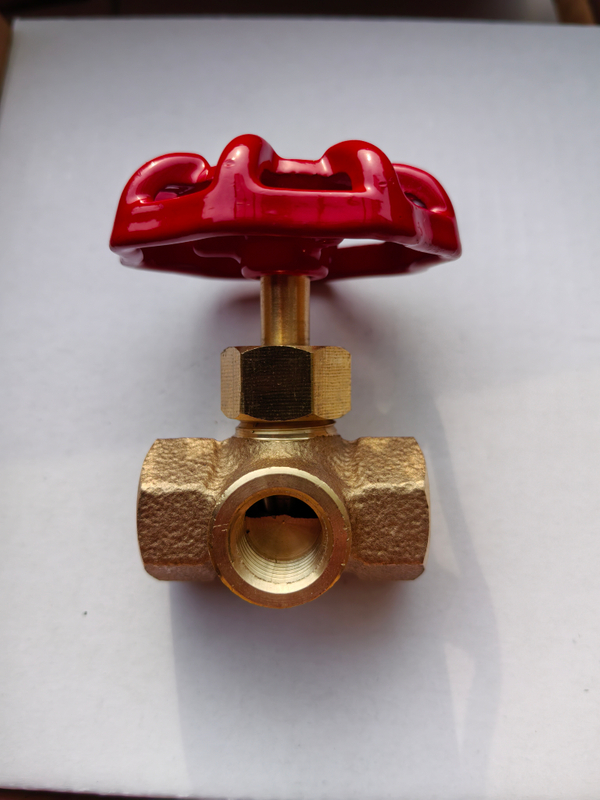

BRONZE THREE-WAY STOP VALVE
The bronze 1/4" three-way NPT female threaded stop valve is UL approved.
It used to facilitate the installation of sprinkler system pressure gauges. The valve provides for one inlet and two outlets.
This design allows for replacement of the system gauge without shutting down the water supply to the sprinkler system. This design also allows Authorities’ Having Jurisdiction to test system pressure with an additional gauge through the second outlet. (The second outlet is normally plugged during installation with a 1/4” IPS pipe plug.) This valve is suitable for use in pressure (2MPa) sprinkler systems.
Construction
Parts | Material |
Body | Bronze C84400 |
Spindle | HPb59-1 |
Gland Nut | C37700/HPb57-3 |
Wash Seal | PTFE |
Handle Wheel | HT 200 |
Name Plate | AL |
Description
Cast bronze body.
Pressure: PN20
Size: 1/4"
UL Certificated
Working Temperature: -20 ℃C - 120 ℃.
Installation
Installation of the three-way valve can be accomplished with normal field installation tools.
Make sure the valve is installed according to the flow indication arrow that has been cast into the valve body.
Use either PTFE Pipe Thread Sealing Tape or a suitable pipe thread sealant with PTFE when installing the valve.
Suitabilities
Water Fire Fighting Oil& Gas
