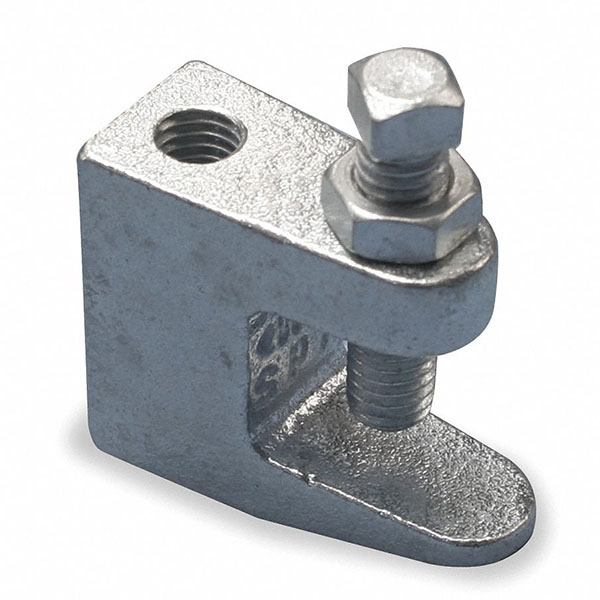

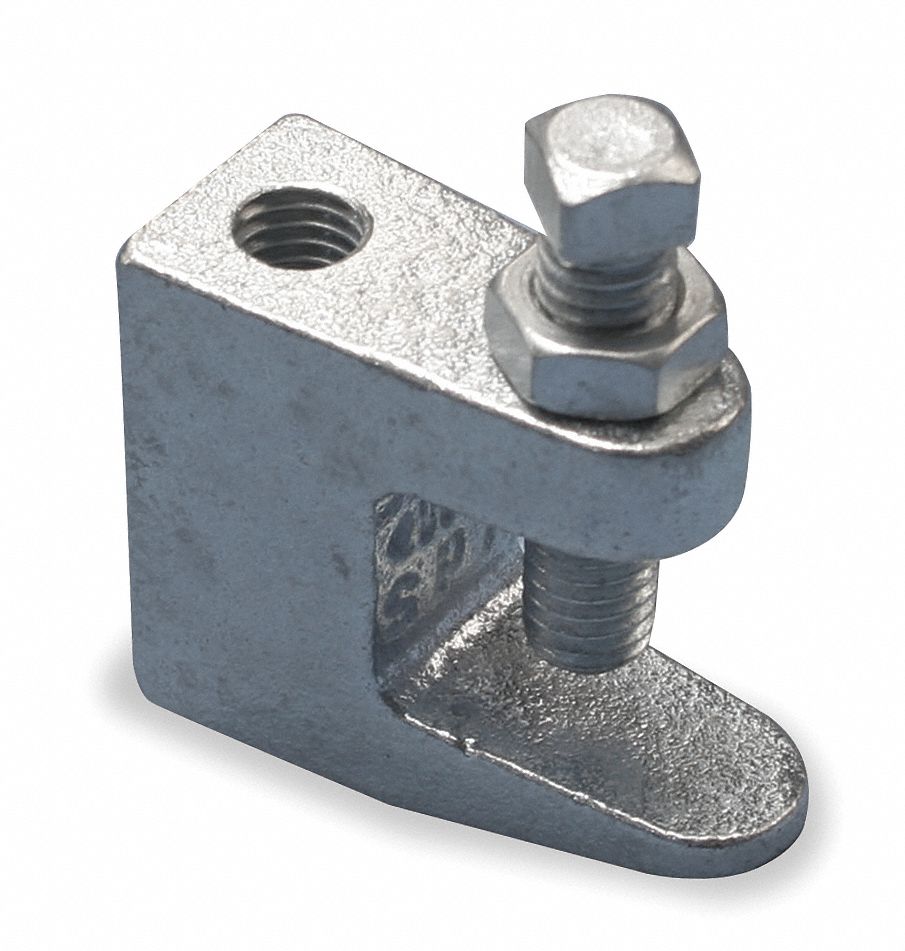

Beam Clamp

Beam Clamp

Beam clamps, which are also known as girder clamps or beam adapter, is used to suspend or secure fixtures, wires, threaded rods, and other hardware. It provides a simple and portable means of attaching a hoist to a runway or lifting beam.

Description

• Size Range: 3/8″ and 1/2″ or M10 and M12

• Maximum temperature Plain 650°F, Galvanized 450°F.

• Conforms with Federal Specification A-A-11192A, WW-H-171, MSS SP-69.

• Installation: Setscrew must be tightened and torqued onto the sloped side of the I-beam.

• Features: reduces need for drilling / allows vertical adjustment of rod / handy in various different applications

• Ordering: Specify figure number, pipe size, description and finish.

• Service: Clamps onto beam flange to anchor vertical threaded rod.

Construction

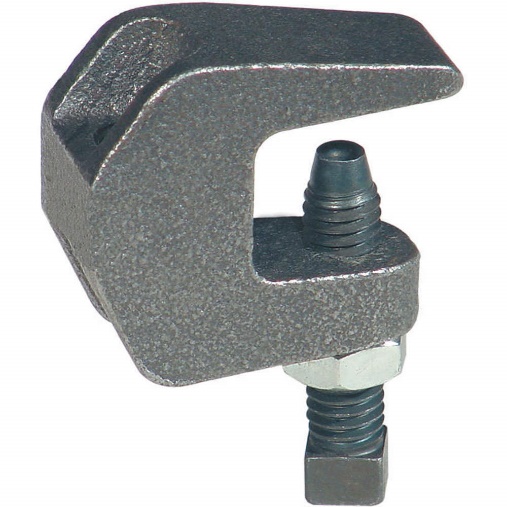

C Type Beam

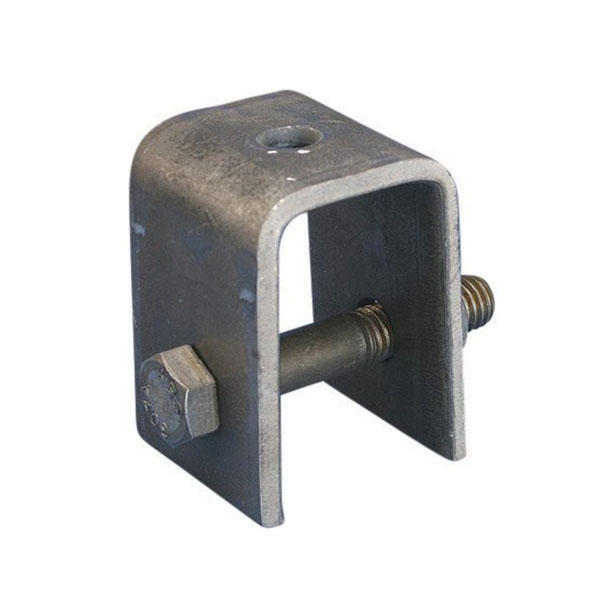

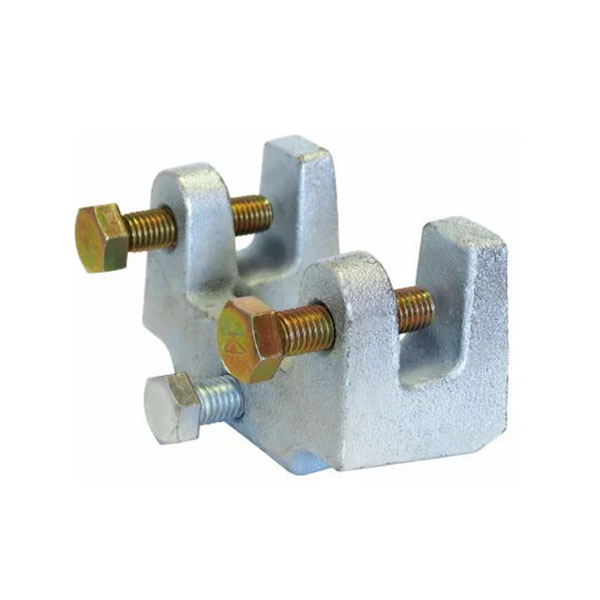

Heavy Duty Beam Attachment

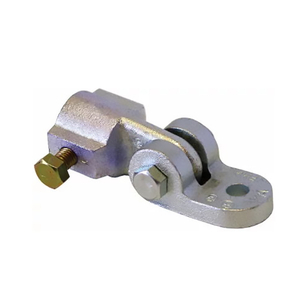

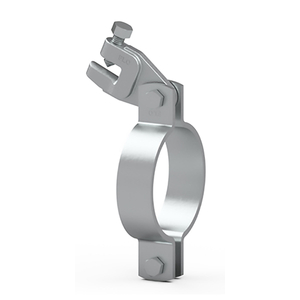

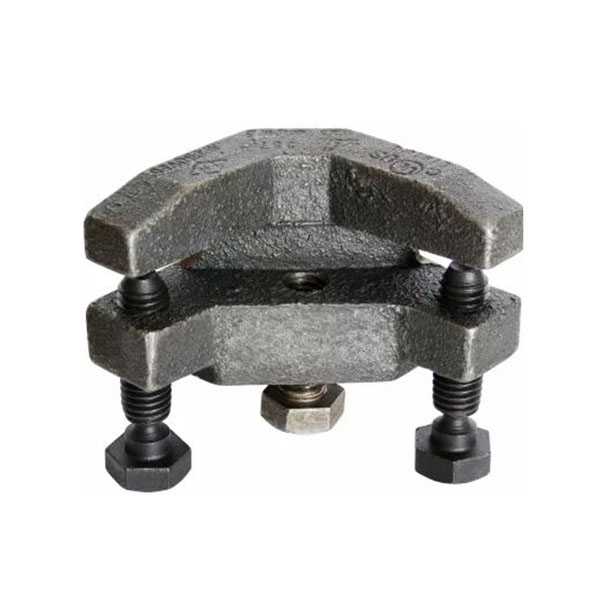

Brace Attachment/ Beam Adapter

Suitabilities

          Water             Fire Fighting
