Seismic Structural Attachment

Seismic Structural Attachment

Seismic structural components are ideal for attaching seismic bracing to various structural members, including wide flange beams, I-beams, C-channel, welded steel trusses, steel bar joists, and more.

A seismic swivel attachment designed to connect brace pipe to the building structure or to a seismic structural attachment.

The Sway Brace Swivel Attachment rigidly braces piping systems subjected to horizontal seismic loads. The Sway Brace Swivel Attachment may also be installed to rigidly brace piping systems subjected to vertical seismic loads.

Description

• Size Range: One size fits braced pipe up to 8”, with 1/2” bolt hole for structure.

• Maximum temperature Plain 650°F, Galvanized 450°F.

• Conforms with NFPA 13.

• Features: Field adjustable design requires no threading of the brace pipe. Shear off bolt provides a visual indication that the desired torque value has been achieved.

• Installation: It is the structural or transitional attachment component of a longitudinal or lateral sway bracing assembly. To install, insert the brace member into the clamp, and tighten the break-off bolt until the hex head breaks off.

• Ordering: Specify brace pipe size, fastener size, figure number, finish and description.

• Service: Multi-functional attachment to building structure or braced pipe clamps. Construction

• Material： Ductile Iron with Carbon Steel Hardware

• Finish: Plain or Electro-Galvanized. Other finishes upon request.

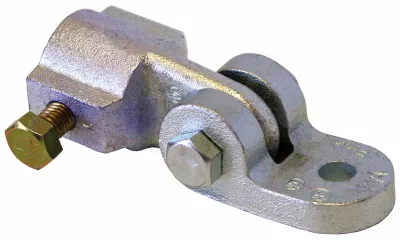

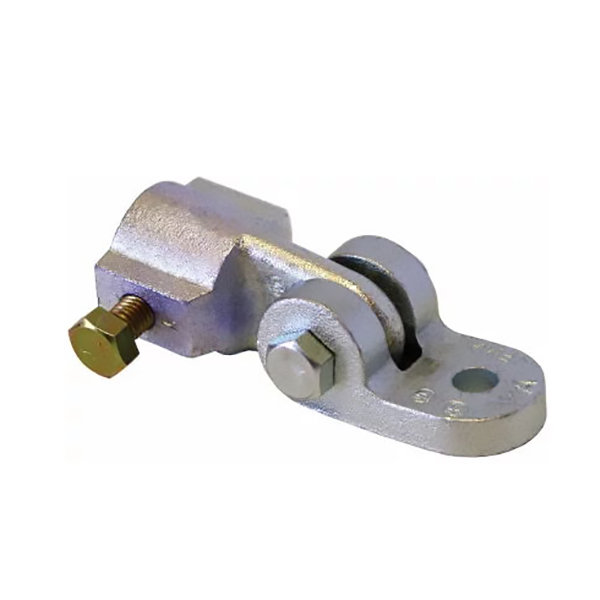

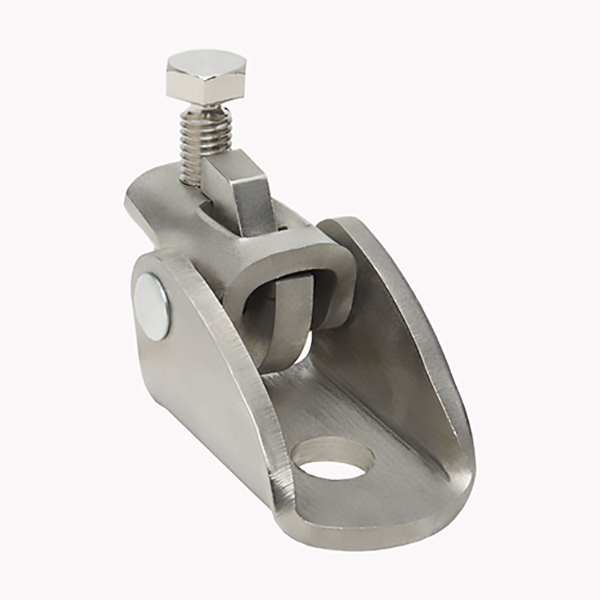

                                       Sway Brace Swivel Attachment

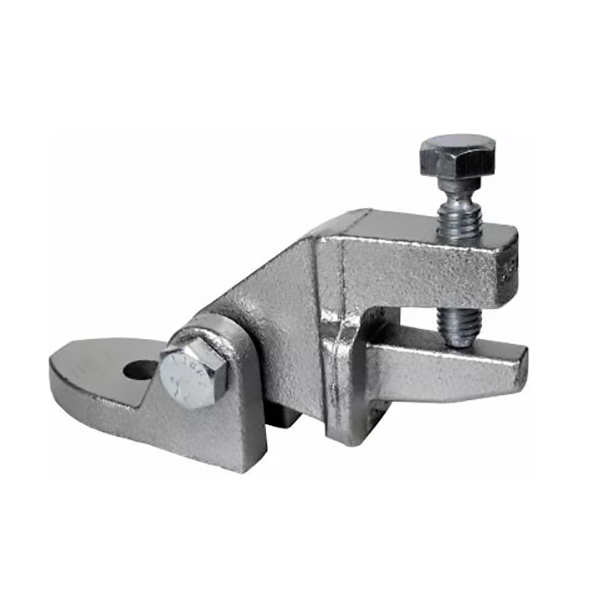

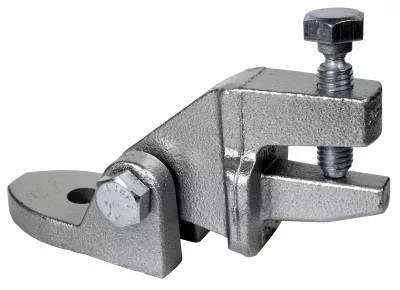

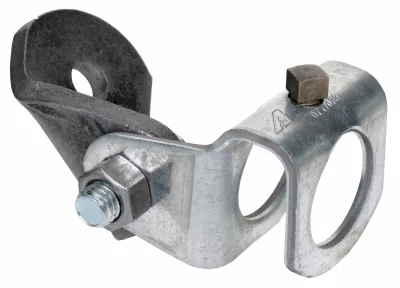

                                         Universal Swivel Attachment

Suitabilities

        Water              Fire Fighting
