Quick Bracing Clamp

Quick Bracing Clamp

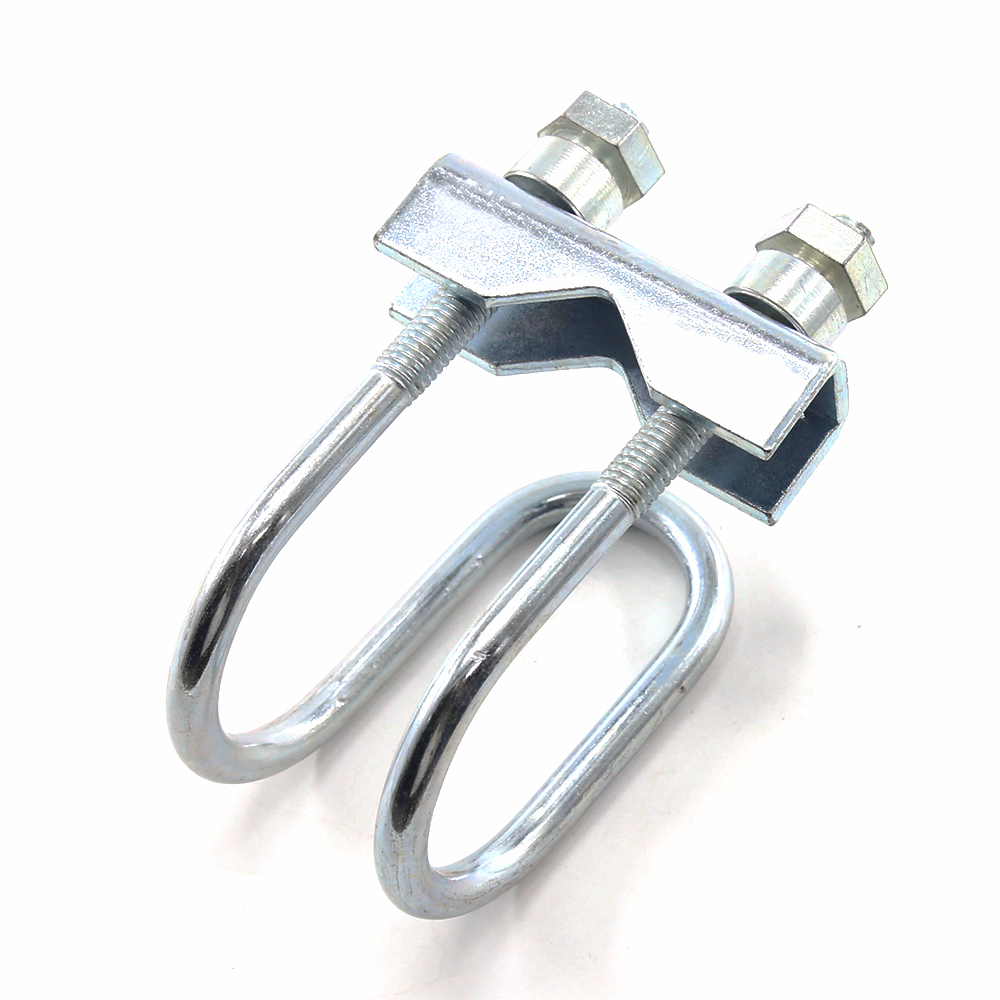

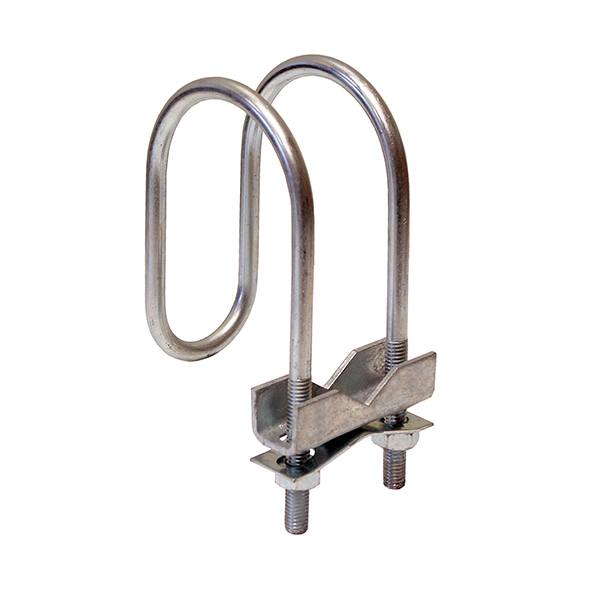

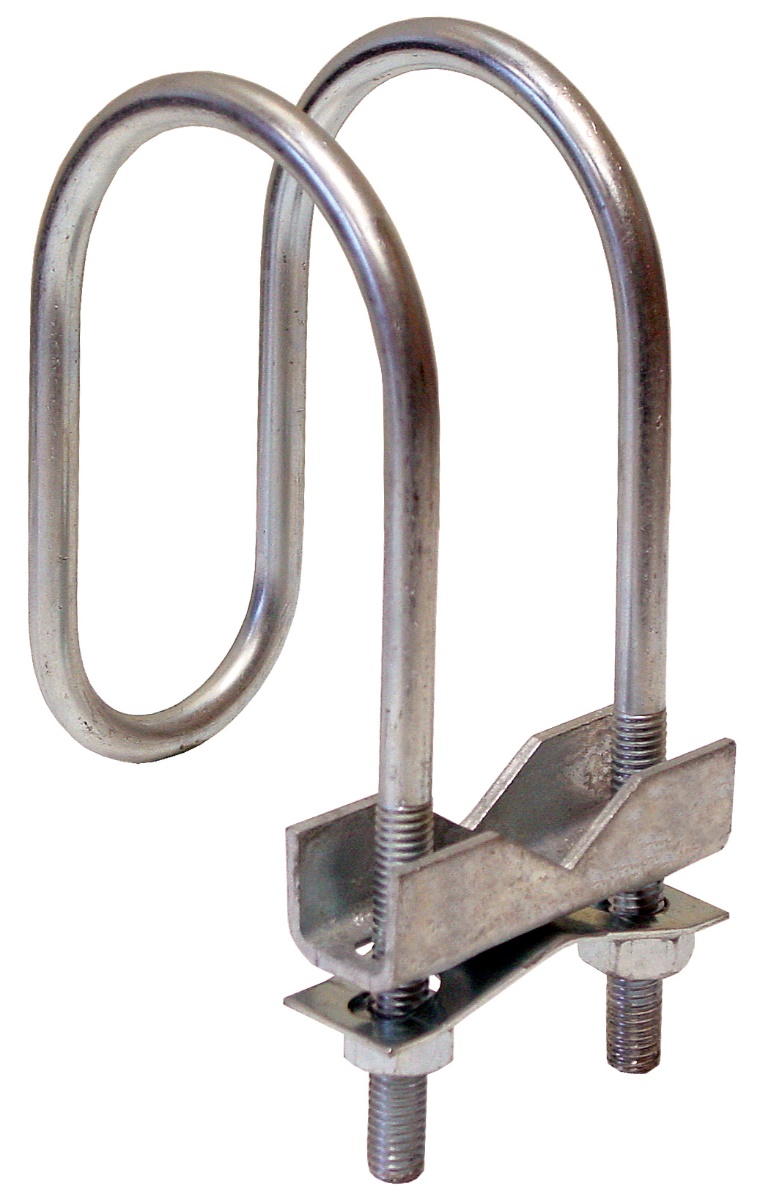

Quick bracing clamp is designed for bracing pipe against sway and seismic disturbance.

The pipe attachment component of a sway brace system used in conjunction with a structural attachment fitting and joined together with a bracing pipe element forming a complete sway brace assembly.

Description

• Size Range: Brace pipe from 1″ to 8″.

• Maximum temperature Plain 650°F, Galvanized 450°F.

• Conforms with NFPA 13.

• Features: Field adjustable design requires no threading of the brace pipe. Indicator clip provides a visual indication that the desired torque value has been achieved.

• Installation: Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1" extending from attachment. Brace pipe can be installed on top or bottom of pipe to be braced. Tighten nuts down evenly until hex head breaks off.

• Ordering: Specify service pipe size, brace pipe size, figure number, finish and description.

• Service: For rigidly brace and restrain piping systems subjected to lateral seismic loads. May also be installed to brace piping systems subjected to vertical seismic loads.

Construction

Suitabilities

        Water               Fire Fighting
