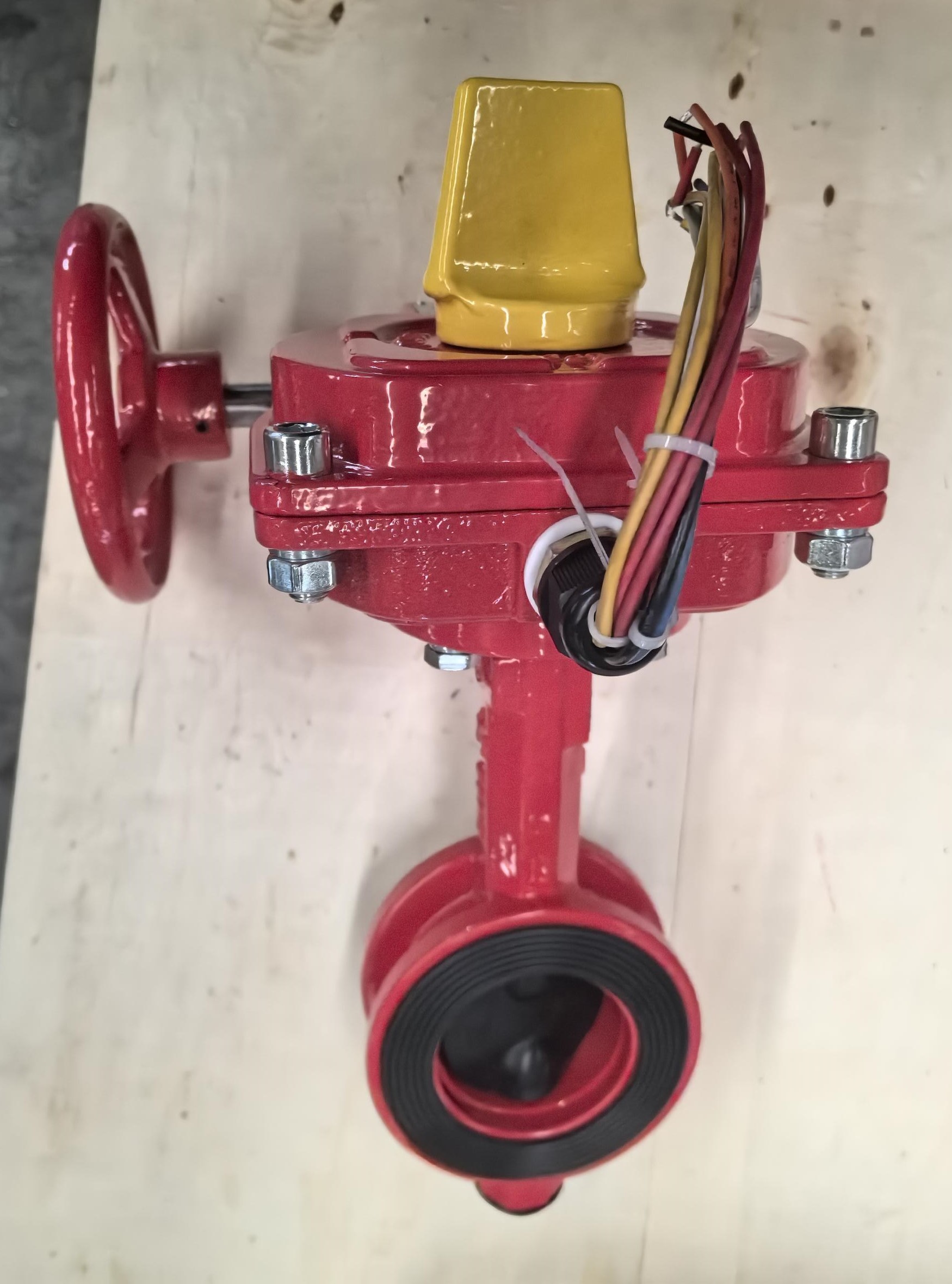

Fire Protection Butterfly Valve | PN16 Wafer Type for Fire Fighting Pipeline Systems

Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they cost less than other valve designs, and are lighter weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, so it induces a pressure drop, even when open.

Features

• Premium ductile iron body for high strength and long service life

• PN16 pressure rating, suitable for fire protection and water supply systems

• EPDM soft seat for reliable sealing and zero leakage

• Wafer type design for easy installation between flanges

• Smooth flow passage, low flow resistance and energy saving

• Corrosion-resistant surface coating for harsh working environments

• Manual operation with lever or gear operator for flexible use

• Complies with international standards for fire safety applications

• Widely used in fire fighting pipelines, industrial piping and municipal water systems

Construction

Description

• Vulcanized disc design for bubble-tight shutoff.

• Flag type position indicator.

• Range from DN50 up to DN300.

• Minimum load loss.

• Epoxy paint 200 microns min: RAL 3000.

Standards

• Design: MSS SP-67

• Flange: ASME B16.1 Class 125/ASME B16.5 Class 150/ EN1092-2

• Top Flange: EN ISO 5211

• Pressure Rating: 300Psi

• Working Temperature: -10 ℃ - 80 ℃

Suitabilities

        Water                    Fire Fighting
