Beam Clamp Retaining Strap

Beam Clamp Retaining Strap

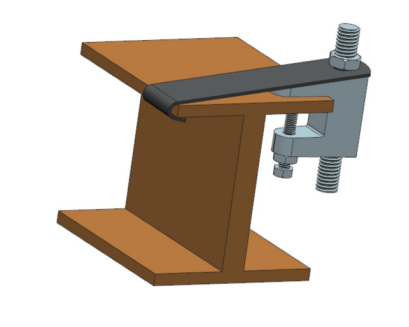

Beam clamps, which are also known as girder clamps or beam adapter, is used to suspend or secure fixtures, wires, threaded rods, and other hardware. It provides a simple and portable means of attaching a hoist to a runway or lifting beam.

Description

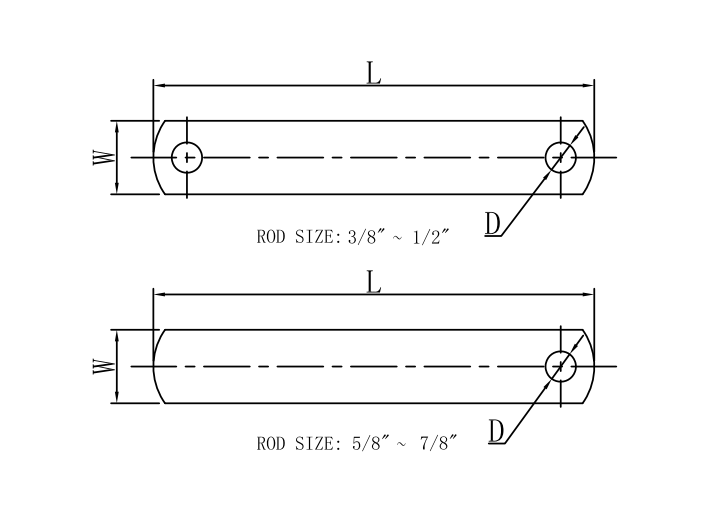

• Size Range: 3/8" thru 7/8" rod by 4" thru 16" length

• Function: To offer more secure fastening of various types of beam clamps to beam where danger of movement might be expected. NFPA 13 requires the use of retaining straps with all beam clamps installed in earthquake areas. Satisfies requirements of NFPA 13

• Finish: Pre-Galvanized

• Ordering: Figure number, type, length and rod size being used with beam clamp

• Service: Clamps onto beam flange to anchor vertical threaded rod.

Construction

Suitabilities

          Water             Fire Fighting
