Split Ring Hangers

Split Ring Hangers

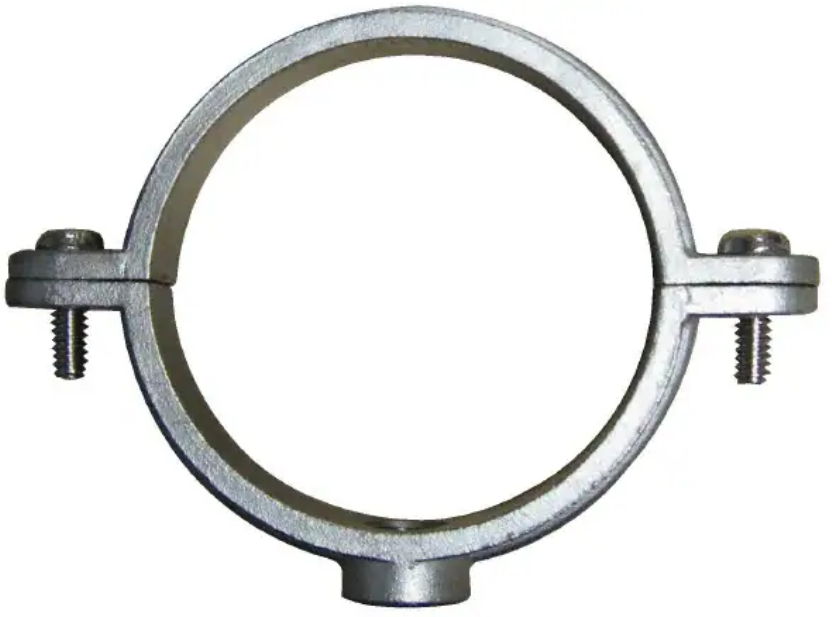

Split ring hangers are a type of pipe hanger similar to clevis hangers, loop hangers, and clamp hangers. This type of hanger is shaped like a ring that is split in the middle. The two halves of the ring open up to fit the pipe and are then secured with a bolt.

Description

• Size：3/8" Thru 4"


• Finish: Powder-Coated, Plain、Zinc Plate

• Function: Designed for suspending copper tubing horizontally or vertically

• Features: Complies with Federal Specification WW-H-171E Type 25 and Manufactures Standardization Society MSS SP-69&SP-58 Type 12.




Suitabilities

         Water             Fire Fighting
