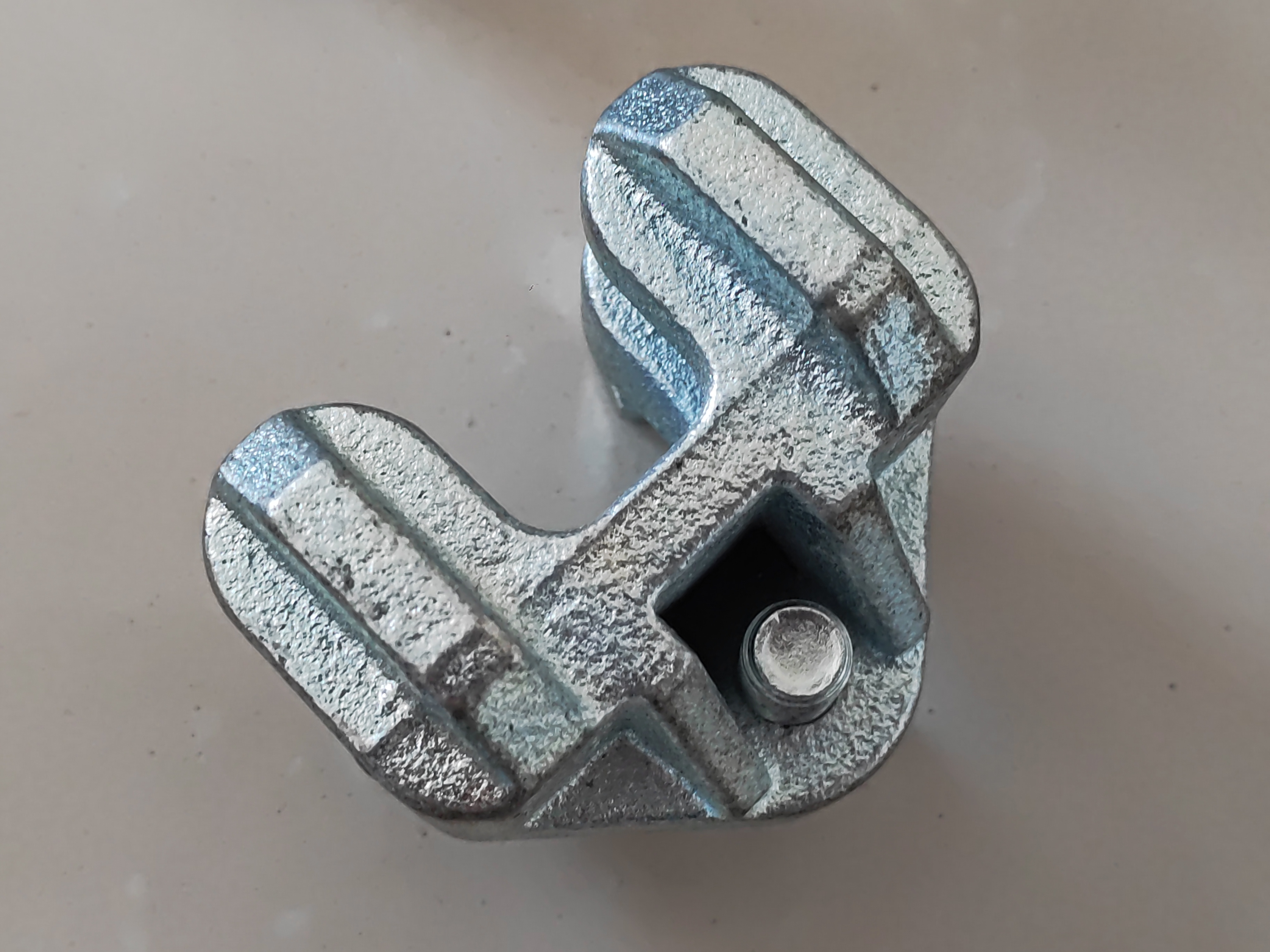

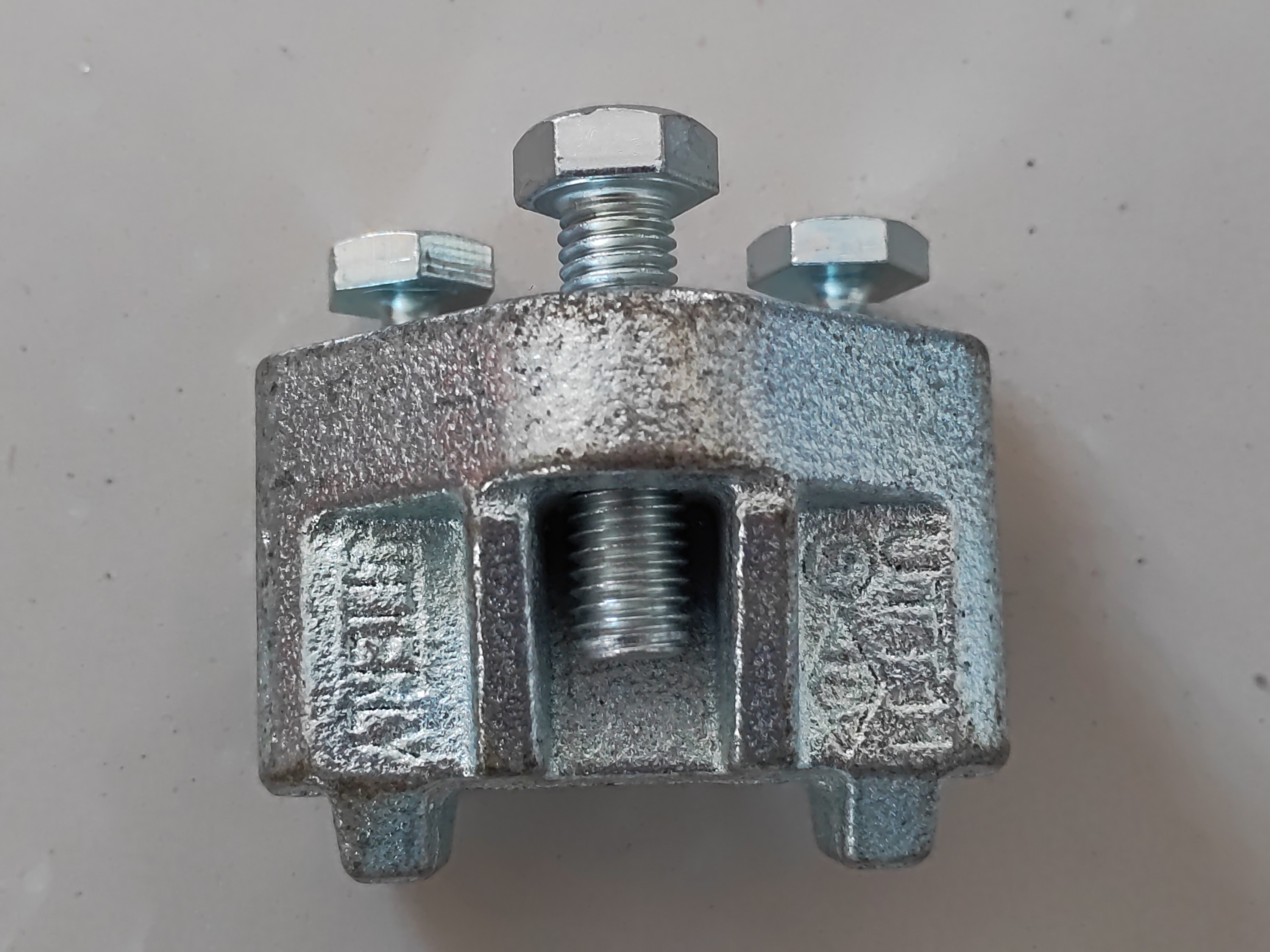

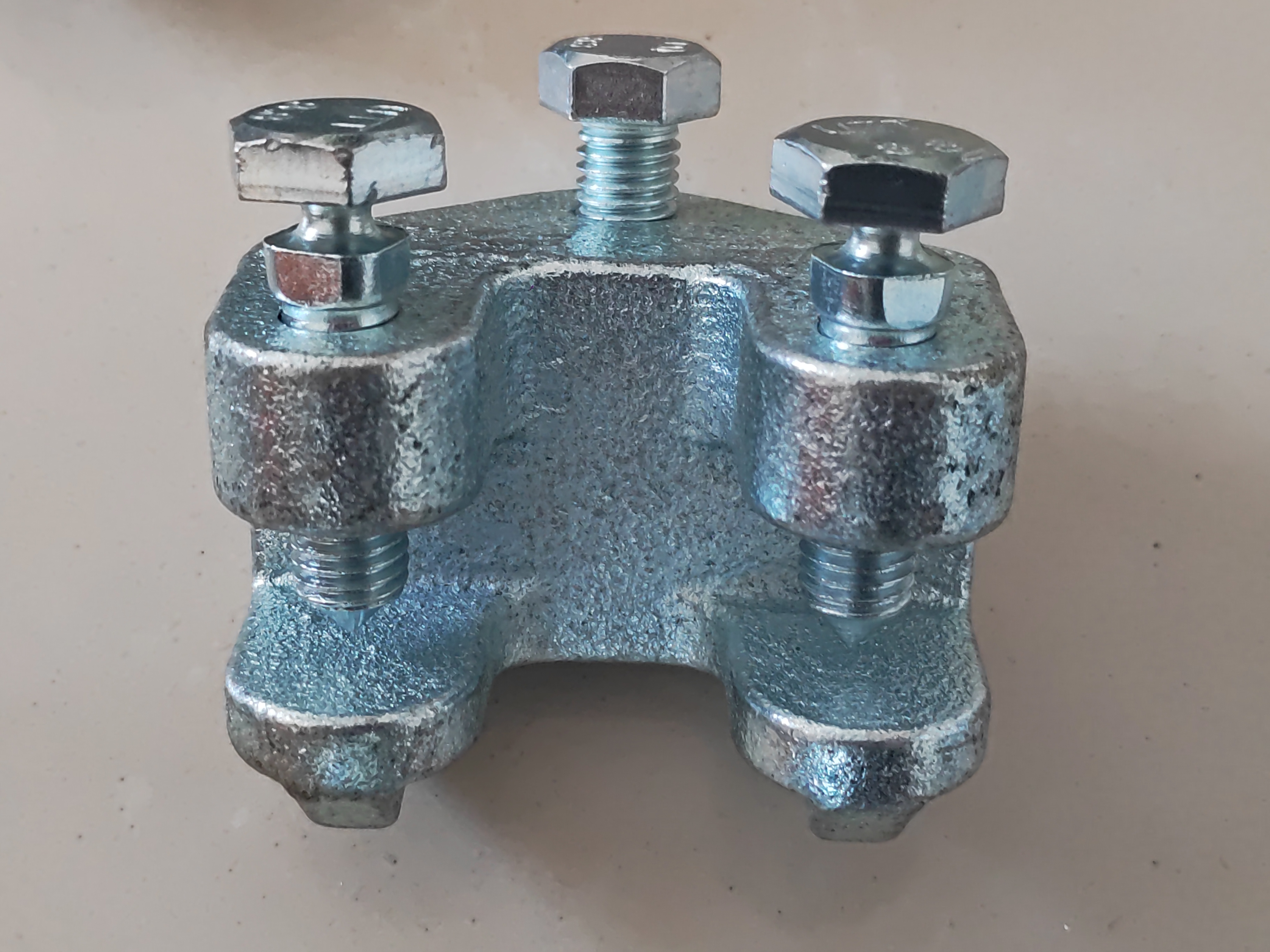

UL FM Bar Joist Sway Brace Attachment for Antiseismic Support
Structure-attachment Adapter is designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer's installation instructions.
Technical Description
Type: | Sprinkler Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454 |
Size: | One size fits braced pipe up to 8",with 1/23 bolt hole for structure. |
Material: | Ductile iron QT450 |
Finish: | Electro - galvanized |
Suitabilities
Water Fire Fighting
