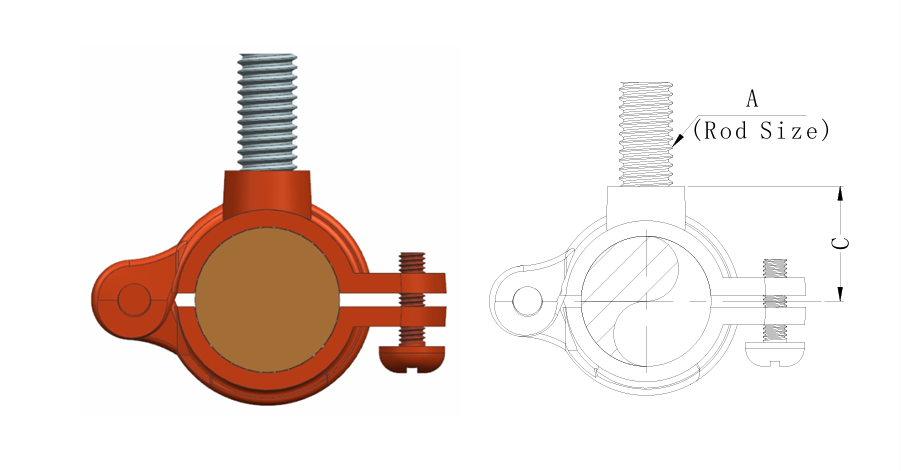

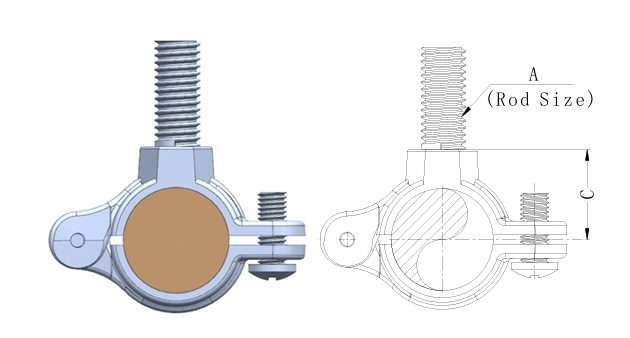

Hinged Extension Split Pipe Clamp

Hinged Extension Split Pipe Clamp

Hinged extension split pipe clamps are used to support insulated and non-insulated pipe allowing for vertical adjustment to help limit movement in the piping system. Our split clamps are available in a variety of materials and finishes to meet various commercial and industrial pipe support applications.

Split ring hangers are a type of pipe hanger similar to clevis hangers, loop hangers, and clamp hangers. This type of hanger is shaped like a ring that is split in the middle. The two halves of the ring open up to fit the pipe and are then secured with a bolt.

Description

• Size：3/8" Thru 4"


• Finish: Powder-Coated, Plain、Zinc Plate

• Function: Designed for suspending copper tubing horizontally or vertically

• Features: Complies with Federal Specification WW-H-171E Type 25 and Manufactures Standardization Society MSS SP-69&SP-58 Type 12.












Suitabilities

         Water             Fire Fighting
