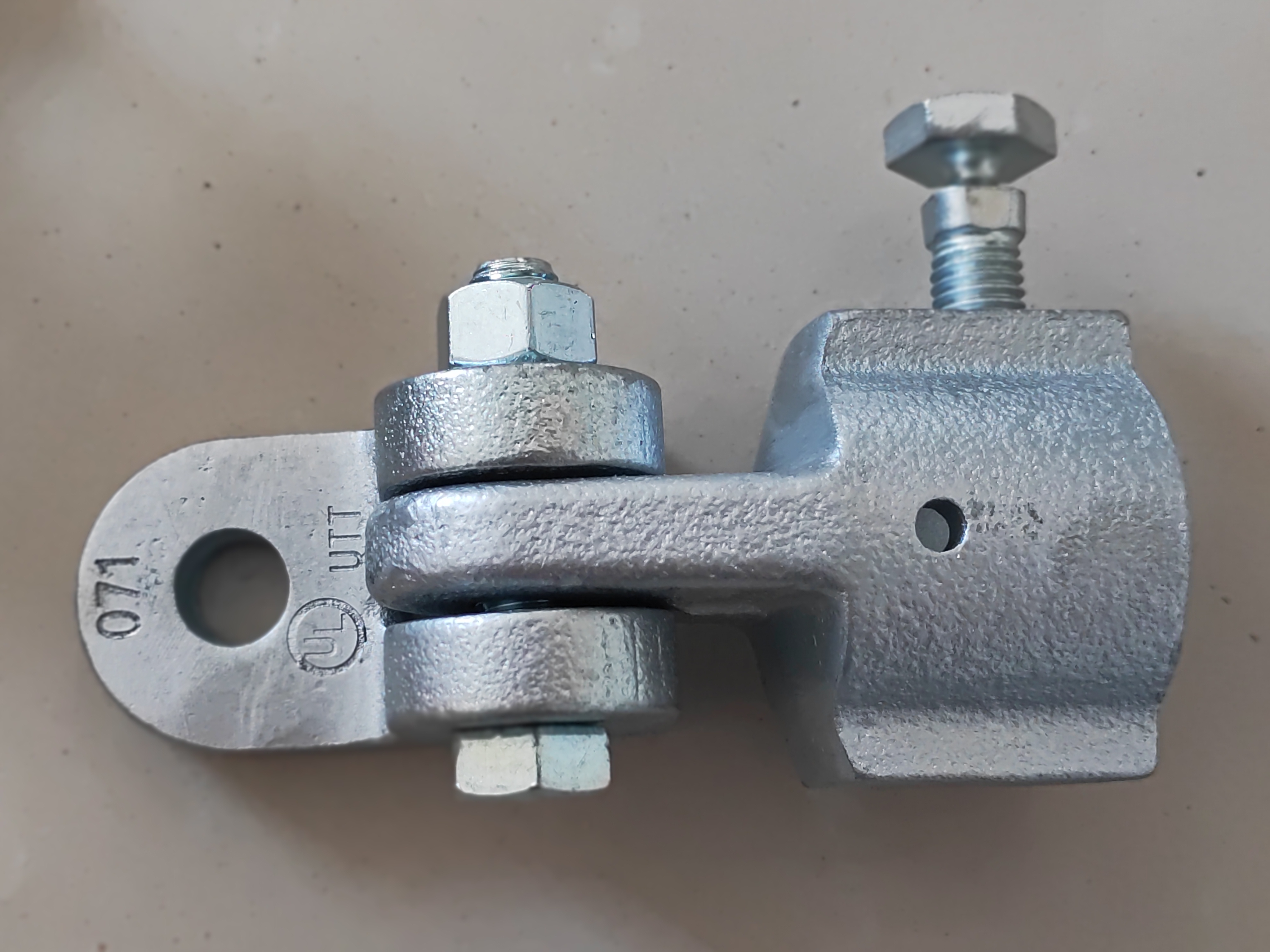

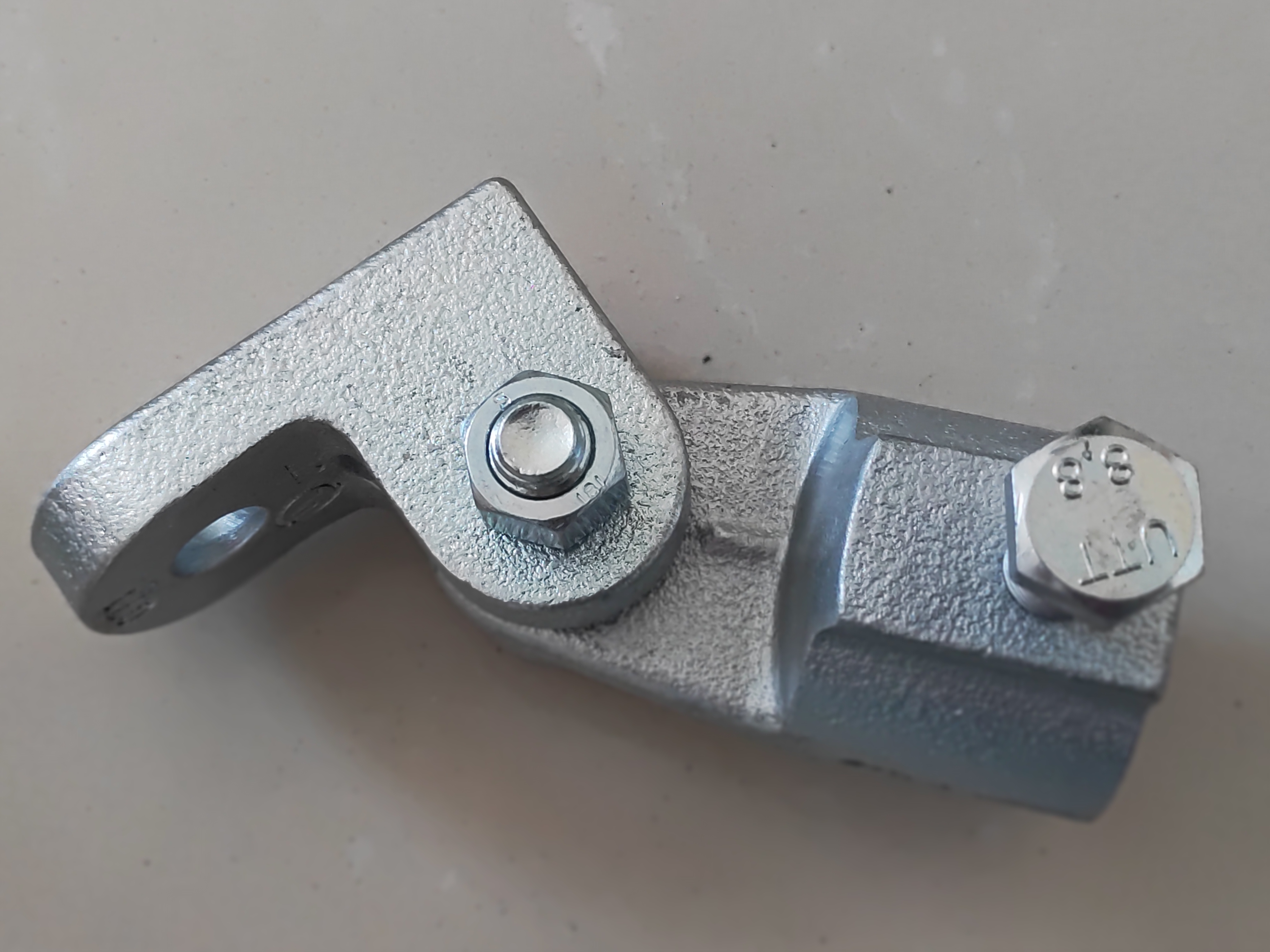

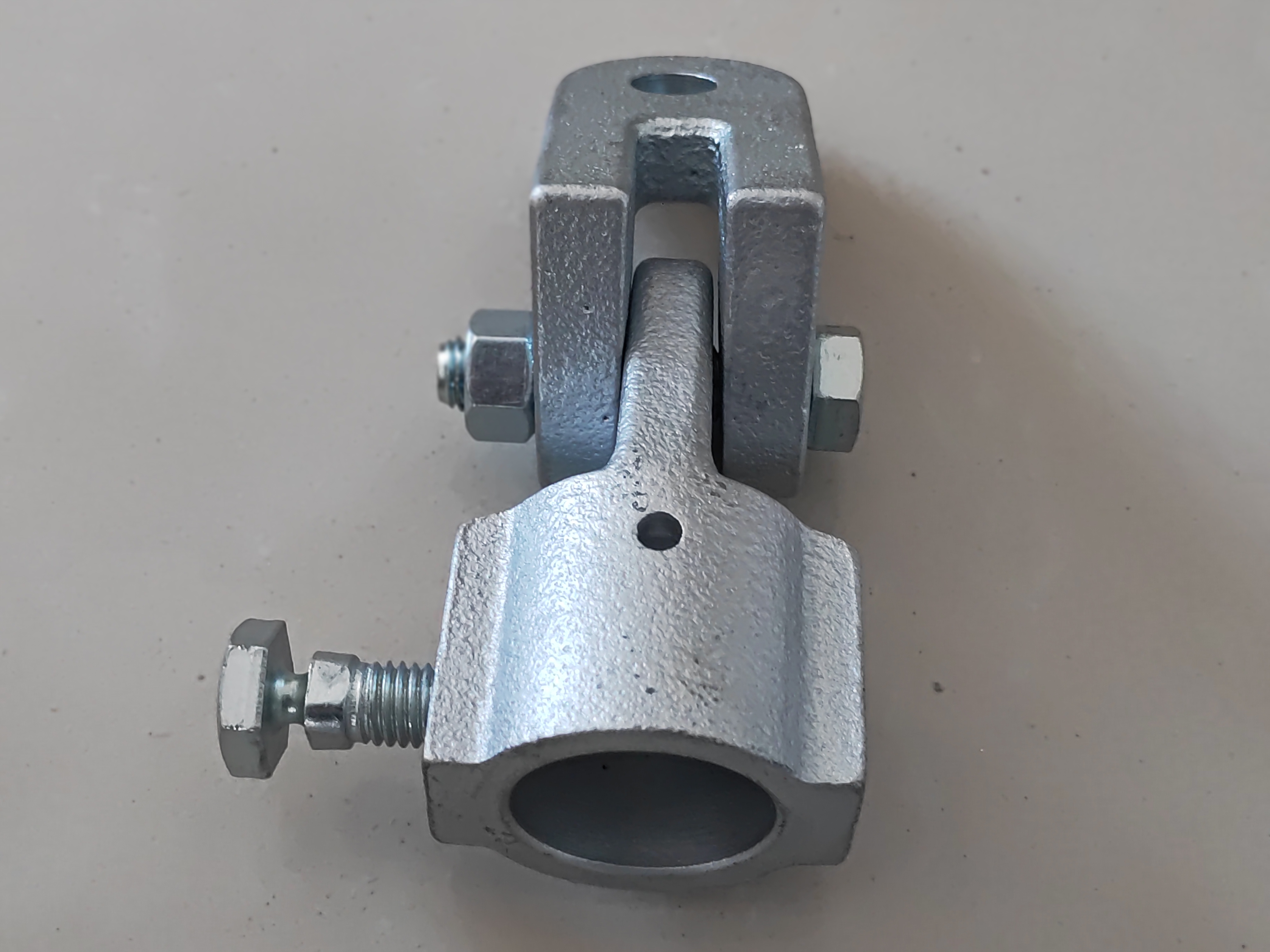

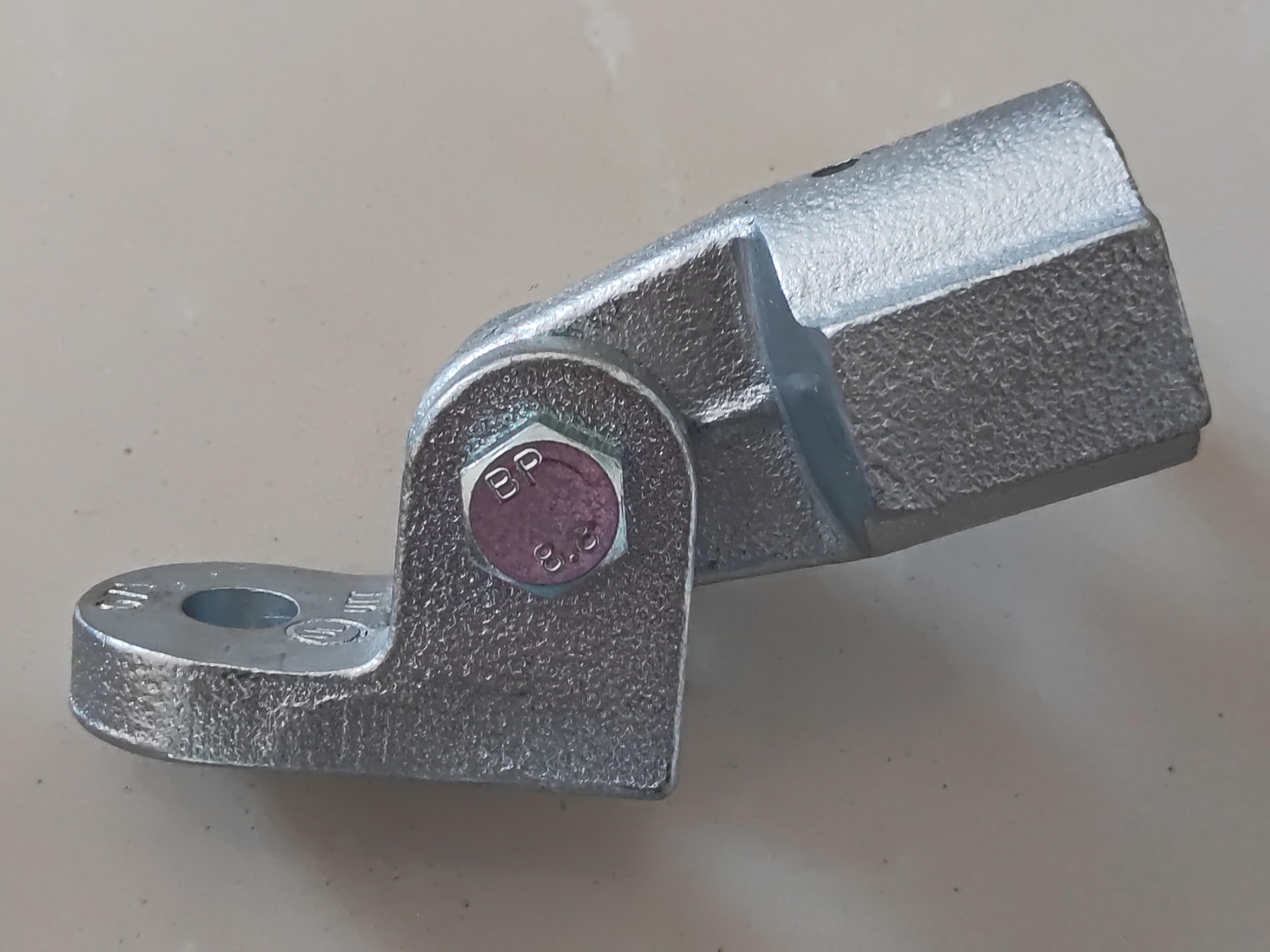

Sway Brace Swivel Attachment UL

Sway Brace Swivel Attachment UL

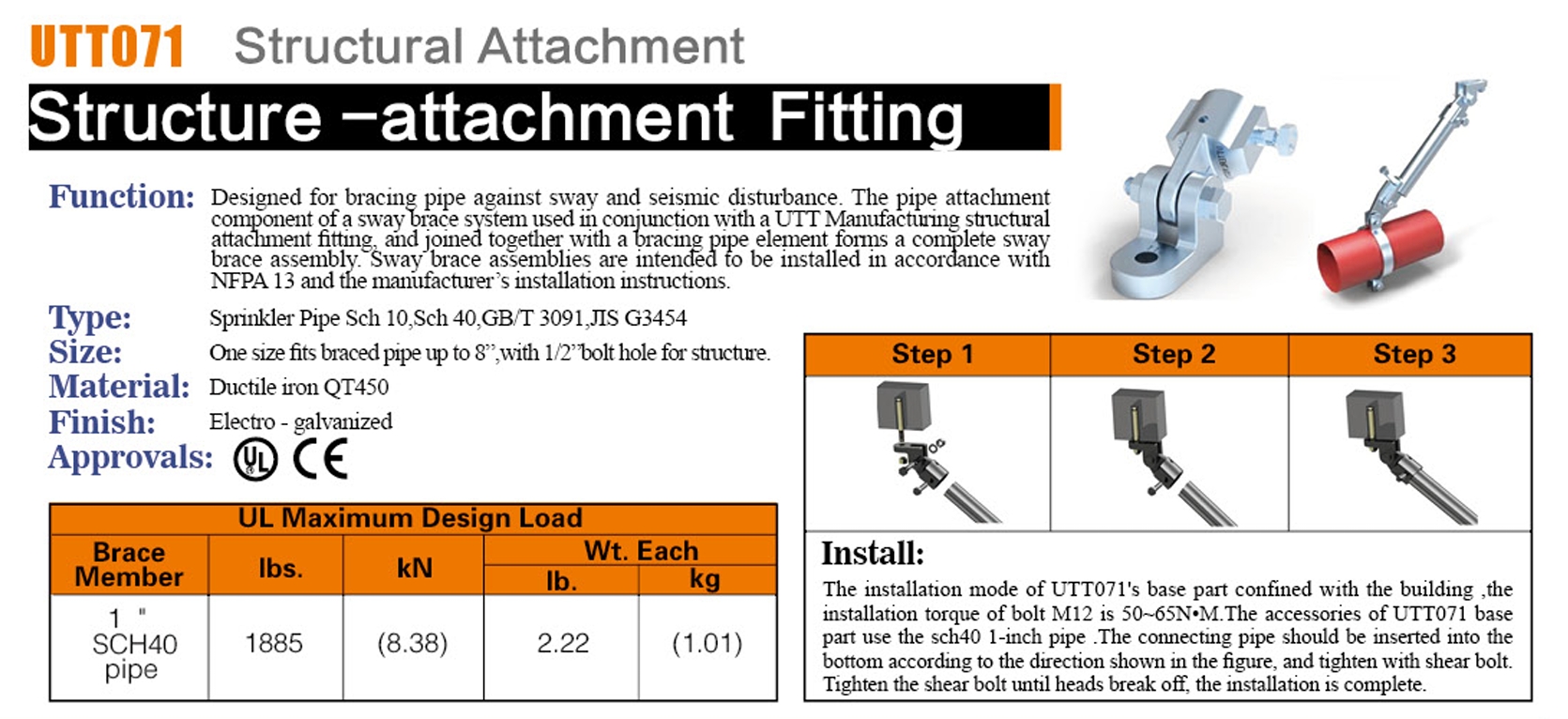

Structure-attachment Adapter is designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer's installation instructions.

Description

• Type: Sprinkler   Pipe Sch 10,Sch 40,GB/T 3091,JIS G3454


• Size Range: One size fits braced pipe up to 8”, with 1/2” bolt hole for structure.

• Material： Ductile Iron with Carbon Steel Hardware.

• Finish: Plain or Electro-Galvanized. Other finishes upon request.

• Maximum temperature Plain 650°F, Galvanized 450°F.

• Conforms with NFPA 13.

• Features: Field adjustable design requires no threading of the brace pipe. Shear off bolt provides a visual indication that the desired torque value has been achieved.

• Installation: It is the structural or transitional attachment component of a longitudinal or lateral sway bracing assembly. To install, insert the brace member into the clamp, and tighten the break-off bolt until the hex head breaks off.

• Ordering: Specify brace pipe size, fastener size, figure number, finish and description.

• Service: Multi-functional attachment to building structure or braced pipe clamps. Construction




Suitabilities

        Water              Fire Fighting
