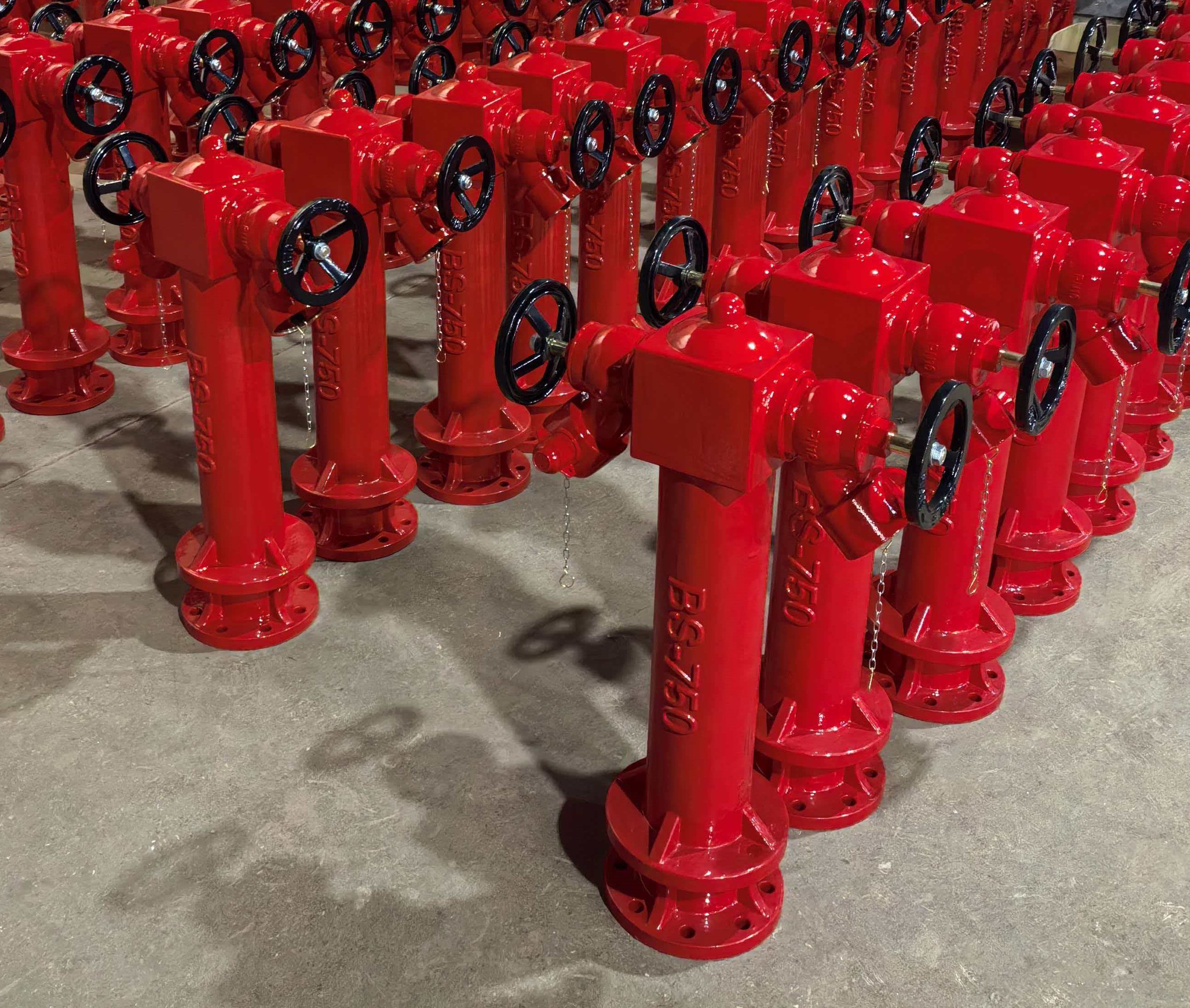

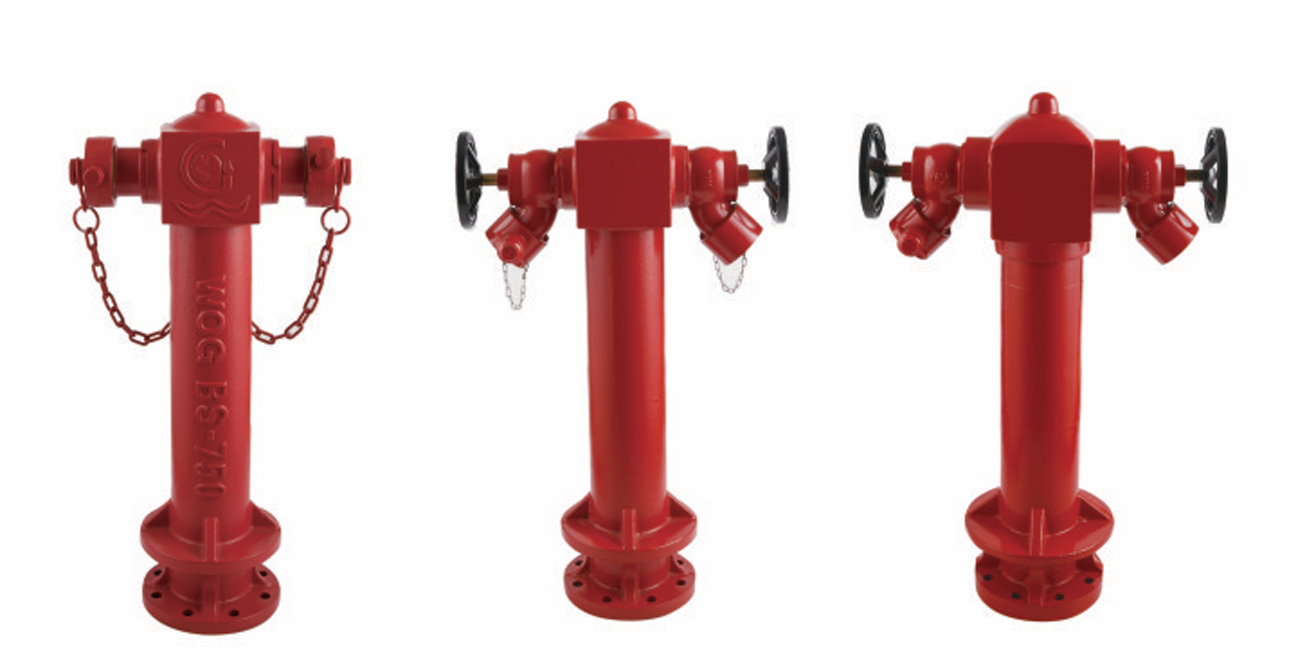

Our British Wet Pillar Fire Hydrant is a robust above-ground firefighting water supply unit designed and manufactured in full compliance with BS EN 14384 and BS 750 standards. As a wet barrel type, the hydrant remains permanently filled with pressurized water, enabling immediate connection and use by fire brigades without priming or draining.
Constructed from high-grade ductile iron, the body ensures exceptional structural integrity and resistance to impact and weathering. It features two independent 2.5" BS336 instantaneous landing valves with brass/gunmetal internals for reliable, drip-tight shut-off. The hydrant is finished in a durable red epoxy coating (RAL 3000) for maximum corrosion protection.
Suitable for non-freezing climates, it is widely installed in municipal networks, industrial complexes, airports, and ports across the UK, Commonwealth, and Middle East regions.
Technical Specification
| Item | Details |
|---|---|
| Product Name | British Wet Pillar Fire Hydrant (Wet Barrel Type) |
| Standard | BS EN 14384:2005, BS 750 (for surface boxes) |
| Type | Wet barrel / Wet pillar (water-filled at all times) |
| Nominal Size | DN80(3"), DN100 (4"), DN150 (6") |
| Working Pressure | 16 bar (PN16) |
| Hydraulic Test Pressure | 20–24 bar |
| Inlet | DN100 Flange, EN 1092-2 PN16 / BS 10 Table T |
| Outlet | 2 × 2.5" (DN65) BS336 female instantaneous landing valves (with cap & chain) |
| Body Material | Ductile iron (GGG500/50) / Cast iron (BS 1561) |
| Valve/Seat | Gunmetal (LG2) / Brass alloy (BS 1982) |
| Seal | EPDM / NBR |
| Operation | Top handwheel (clockwise close) |
| Surface Coating | Red fusion-bonded epoxy / RAL 3000 powder coating |
| Total Height | Approx. 800–810 mm |
| Application | Municipal, industrial, airport, port, non-freezing climates |
BS EN 14384 certified: Fully compliant with British & European fire safety standards.
Wet barrel design: Instant water access; no draining required.
Ductile iron construction: High strength & long service life.
Dual BS336 2.5" outlets: Compatible with standard UK firefighting hoses.
PN16 pressure rating: Suitable for municipal & industrial water networks.
Municipal urban fire networks
Industrial facilities & factories
Airports, seaports & logistics hubs
Commercial & residential estates
Non-freezing climate regions (UK, Middle East, Asia)
Suitabilities
Fire Fighting Construction
