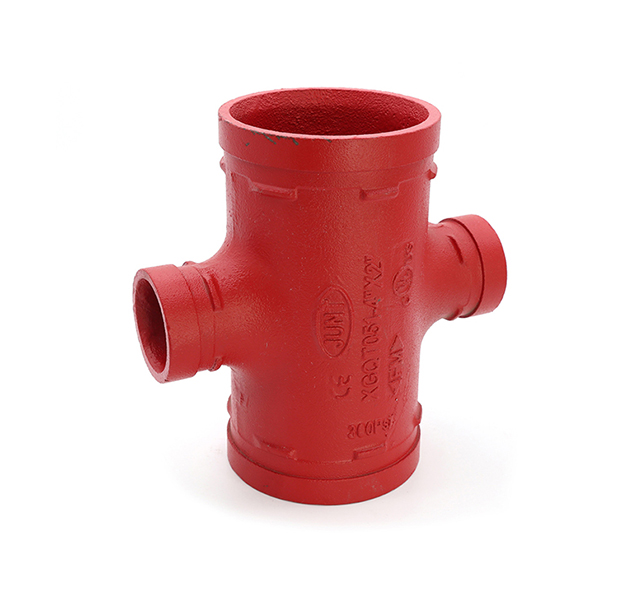

Cross
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Cross | Ductile Iron ASTM A536 Grade 65-45-12 |
Description
Range from DN32(1 1/4”) up to DN600(24”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
The cross is used for grooved pipe connection, mainly in the grooved pipe end where the main pipe needs branch pipe.

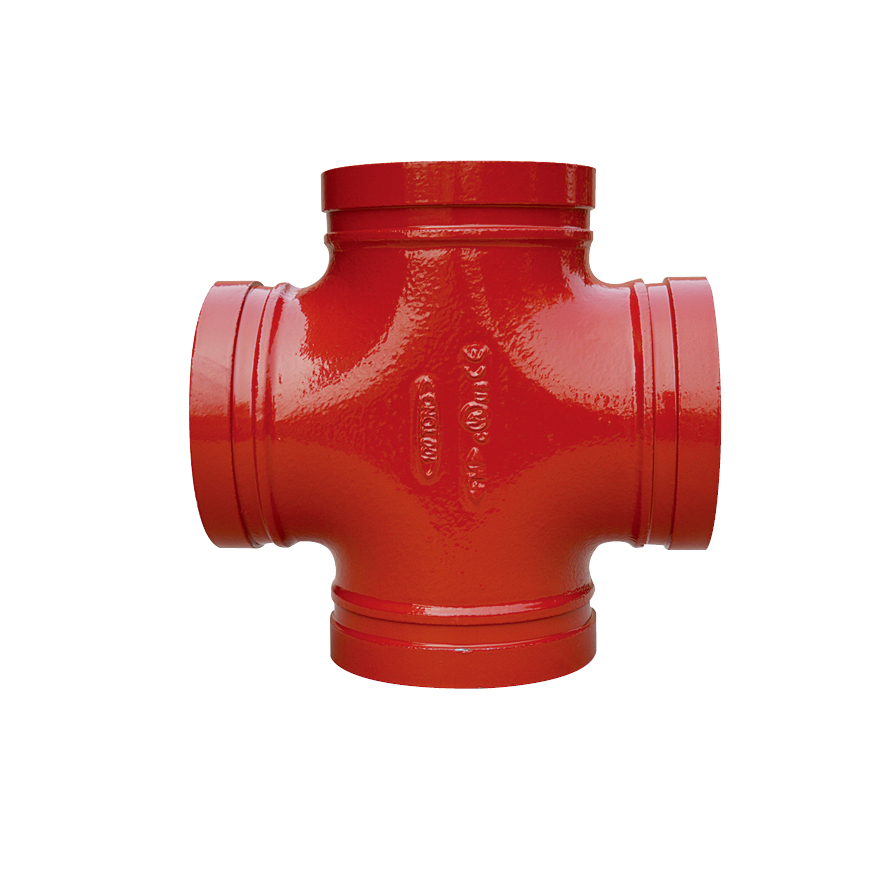

Equal cross is used for the diameter of the main pipe and branch pipe is the same.
Reducing cross is used for the diameter of the main pipe and branch pipe is different.

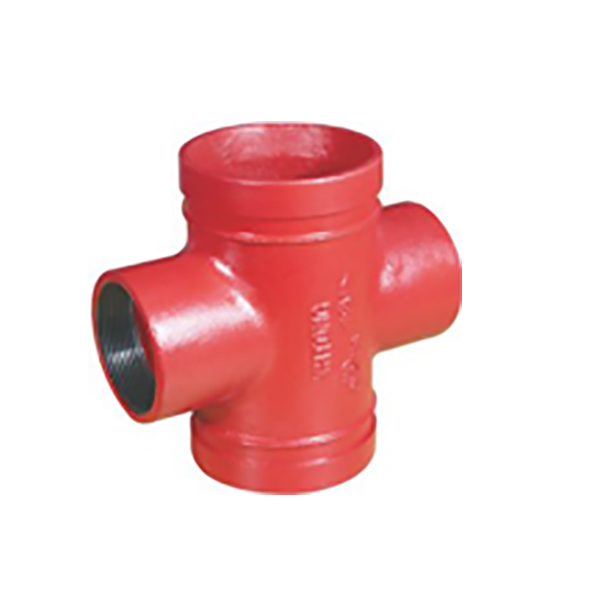

Reducing cross threaded is with female threaded, NPT/BSPT. And the branch pipe is threaded connection.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-500Psi
Available

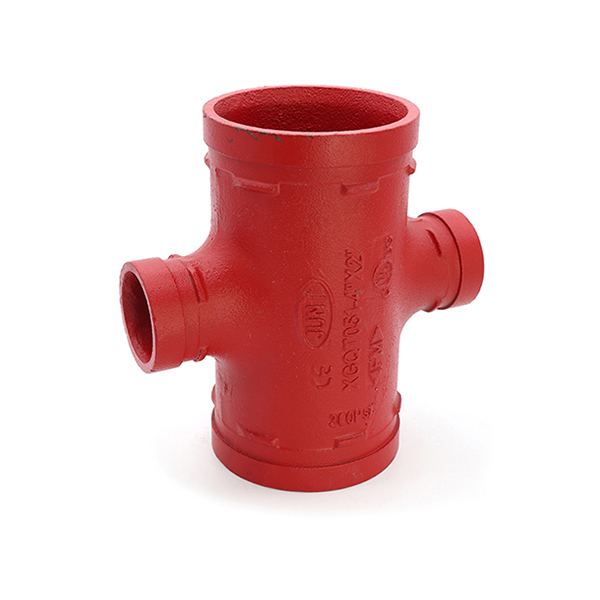

Reducing Cross Grooved Reducing Cross Threaded
Suitabilities
Water Fire Fighting Oil& Gas
