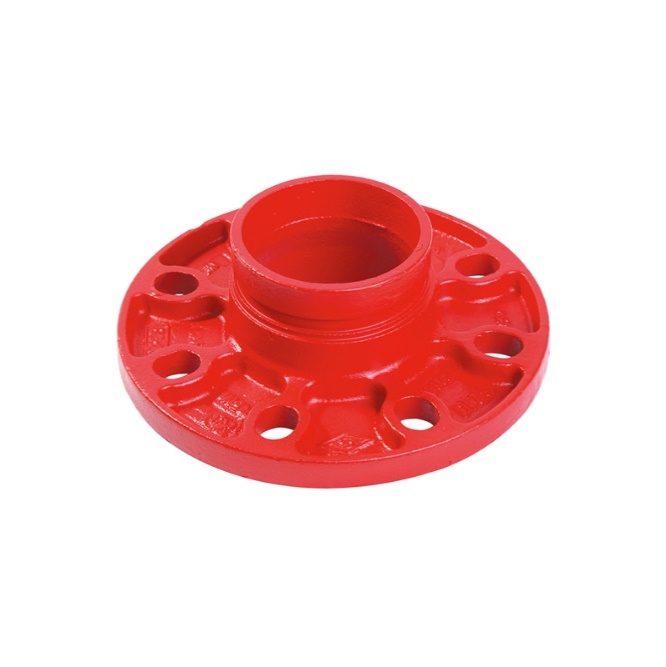

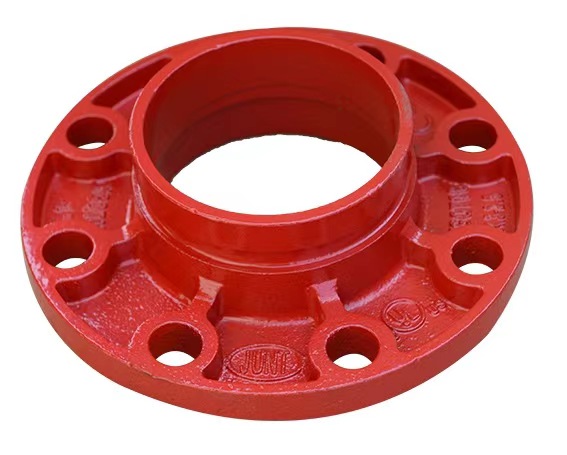

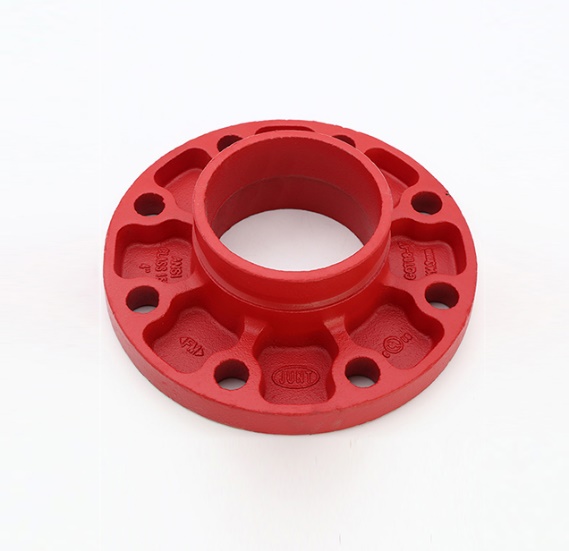

Flange Adaptor
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Flange Adaptor | Ductile Iron ASTM A536 Grade 65-45-12 |
Description
Range from DN25(1”) up to DN450(18”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
The adaptor flange is used for the conversion of the grooved pipe connection to the flange connection.
Flange adaptor threaded is with female threaded, NPT/BSPT.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: PN16/PN25, Class125/150.
Available

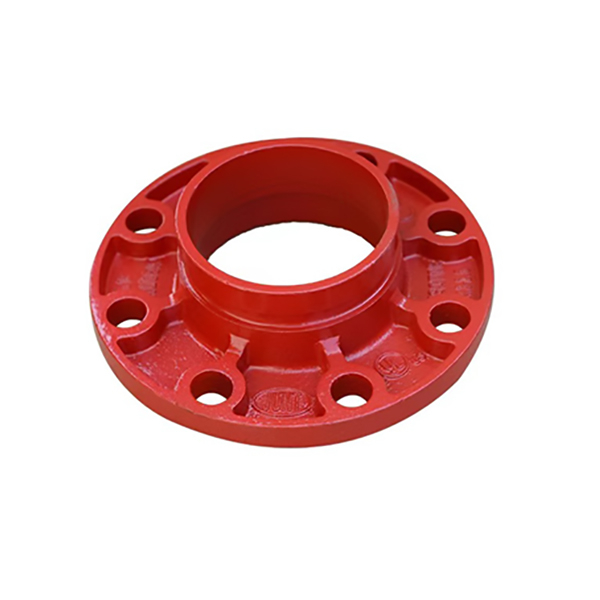

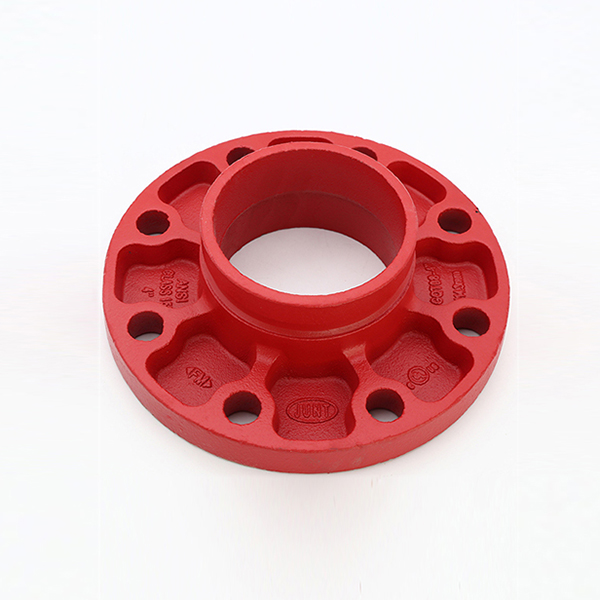

Flange Adaptor PN16 Flange Adaptor PN25

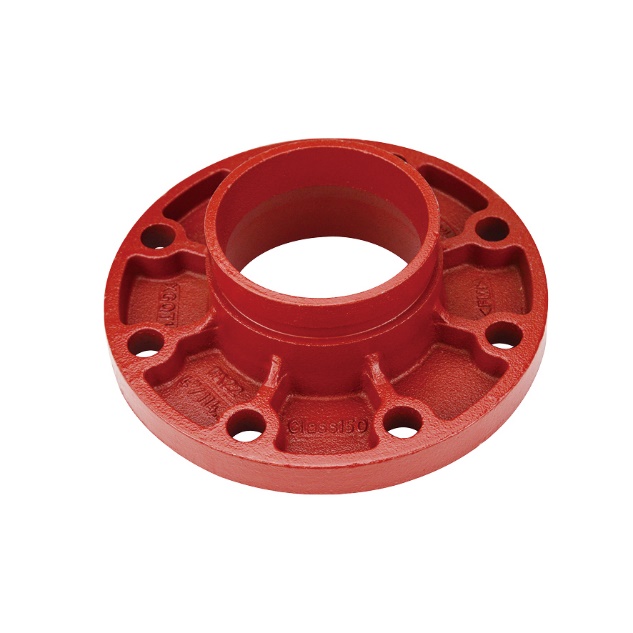

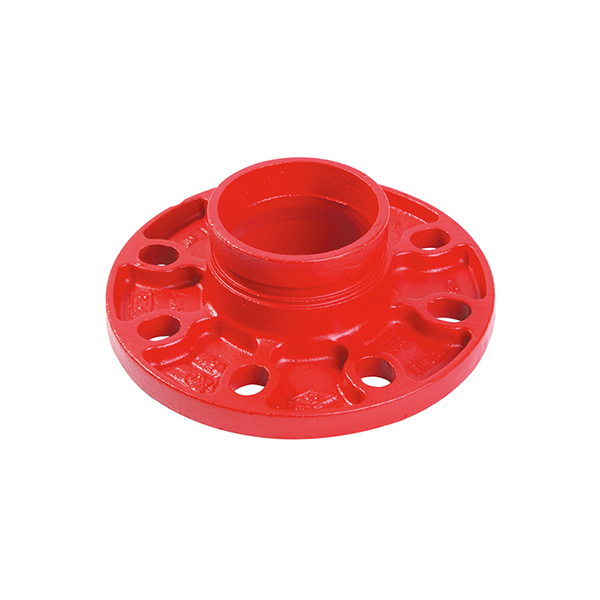

Flange Adaptor Table E Flange Adaptor Class 150

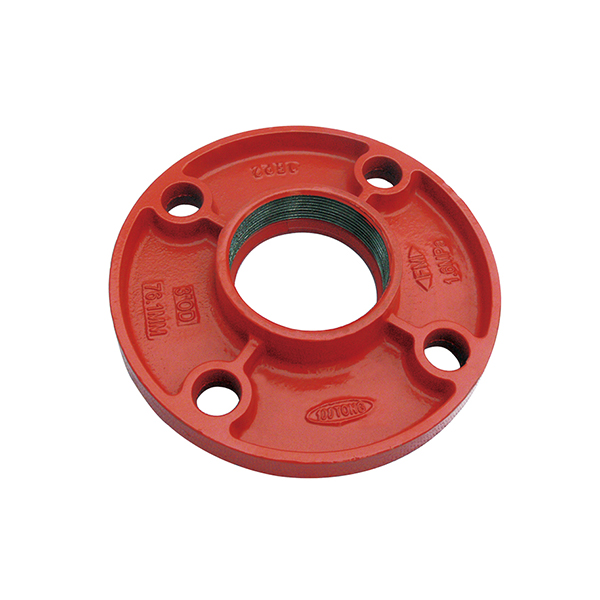

Flange Adaptor Threated PN16
Suitabilities
Water Fire Fighting Oil& Gas
