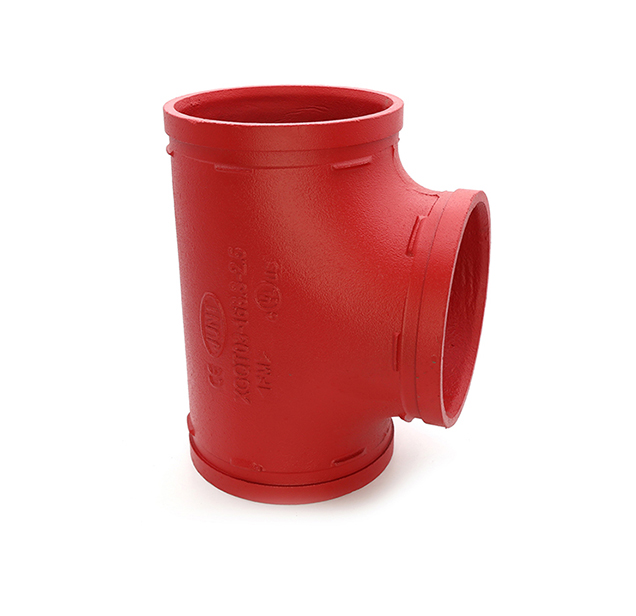

Tee
Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.
Construction
Parts | Material |
Tee | Ductile Iron ASTM A536 Grade 65-45-12 |
Description
Range from DN25(1”) up to DN600(24”).
Epoxy paint 200 microns min: RAL 3000.
Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.
The tee is used for grooved pipe connection, mainly in the grooved pipe end where the main pipe needs branch pipe.
Equal tee is used for the diameter of the main pipe and branch pipe is the same.
Reducing tee is used for the diameter of the main pipe and branch pipe is different.
Reducing tee threaded is with female threaded, NPT/BSPT. And the branch pipe is threaded connection.
Standards
Design: ISO6182, AWWA C606, GB 5135.11
Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.
Pressure Rating: 175-500Psi
Available

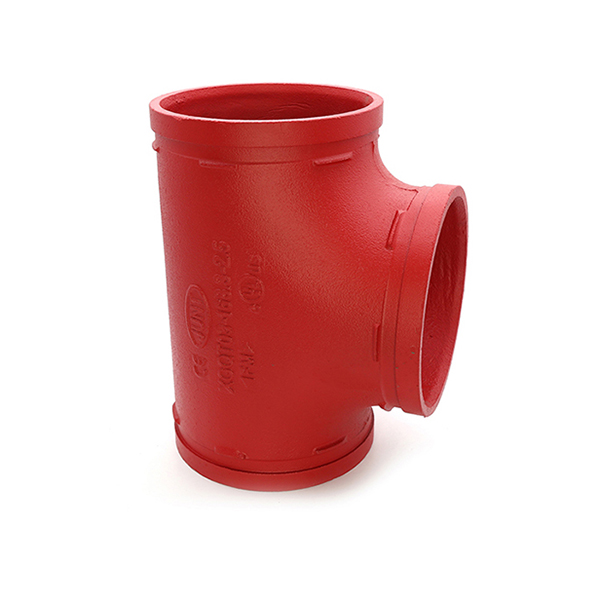

Equal Tee Standard Equal Tee Short

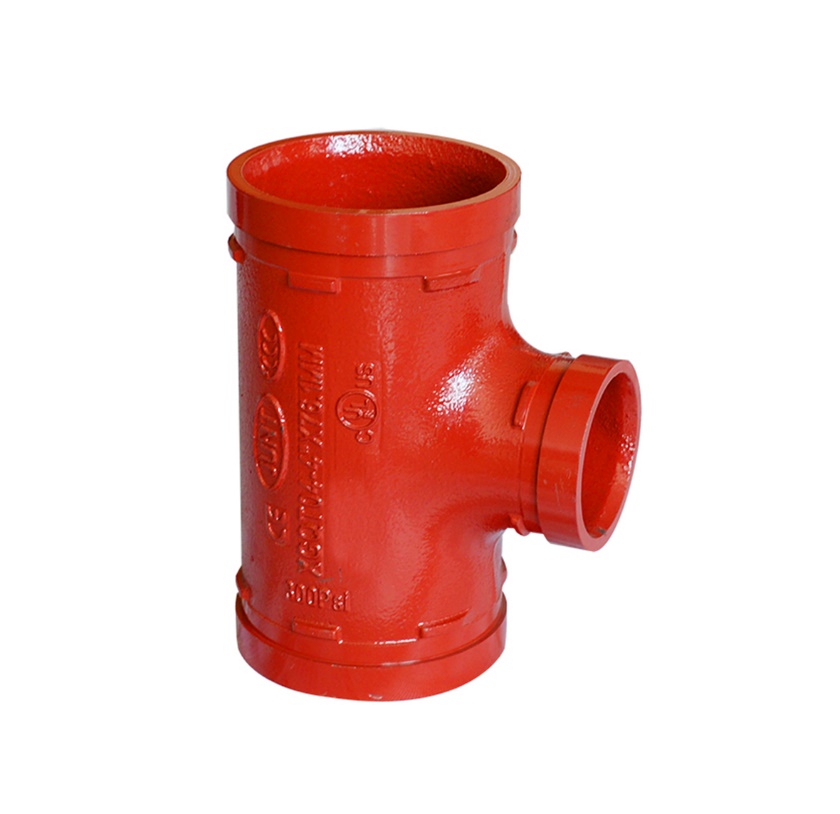

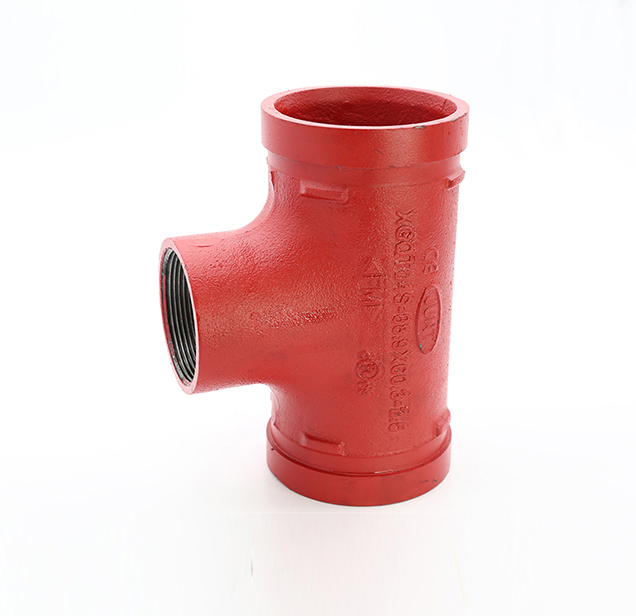

Reducing Tee Grooved Reducing Tee Threaded
Suitabilities
Water Fire Fighting Oil& Gas
