Grooved Elbow

Grooved Elbow

Grooved pipe couplings and fittings are used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system.

Construction

Description

• Range from DN25(1”) up to DN600(24”).

• Epoxy paint 200 microns min: RAL 3000.

• Finish: Paint red, paint orange, epoxy red coating, galvanized, dacromet coating, or any requirements.

• The elbow is used for grooved pipe connections at the bend of the pipe and changing the direction of the pipe.

Standards

• Design: ISO6182, AWWA C606, GB 5135.11

• Grooved: ASME B36.10, ASTM A53-A53M, ISO 4200.

• Pressure Rating: 175-500Psi

Available

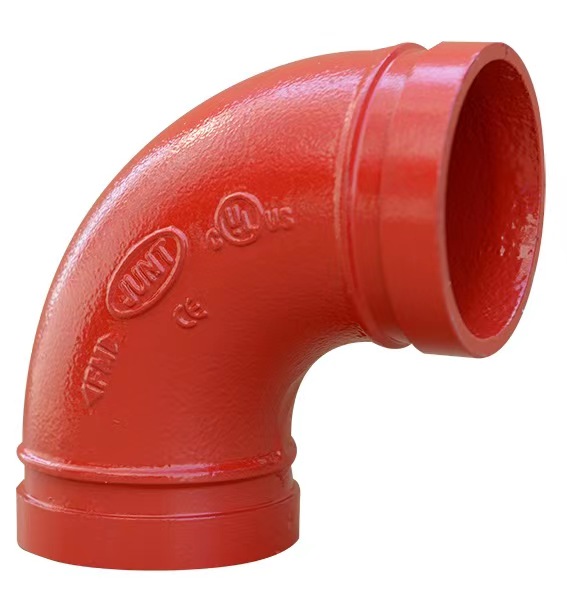

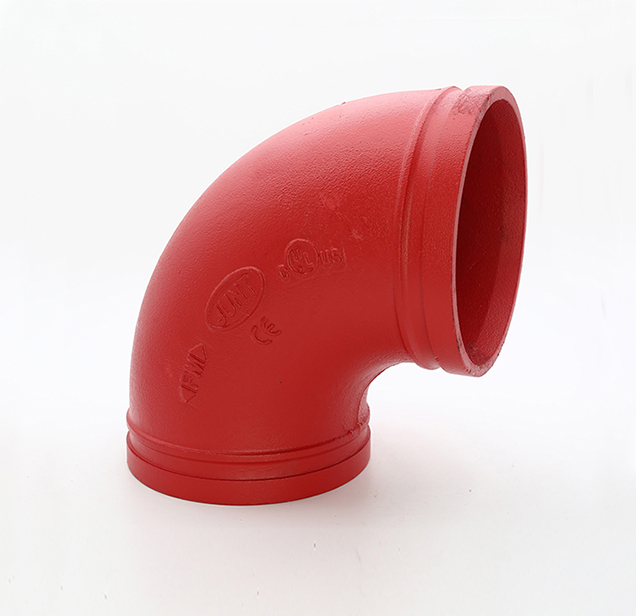

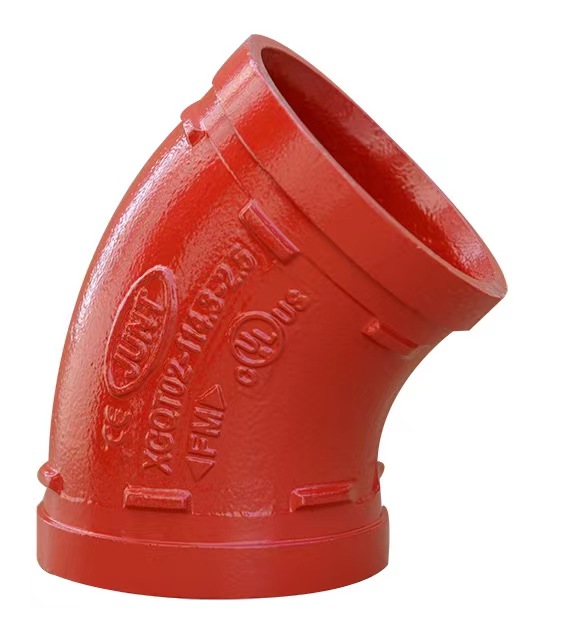

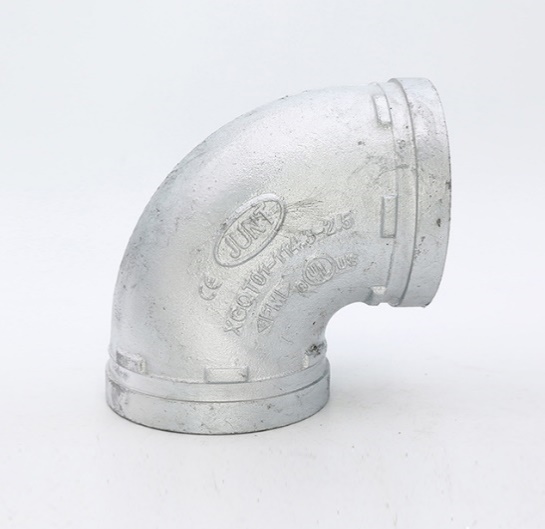

90°Elbow Standard                90°Elbow Short                45°Elbow

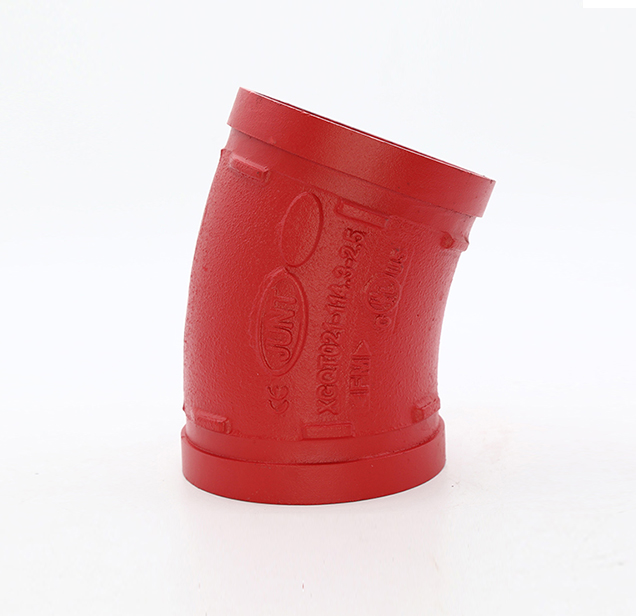

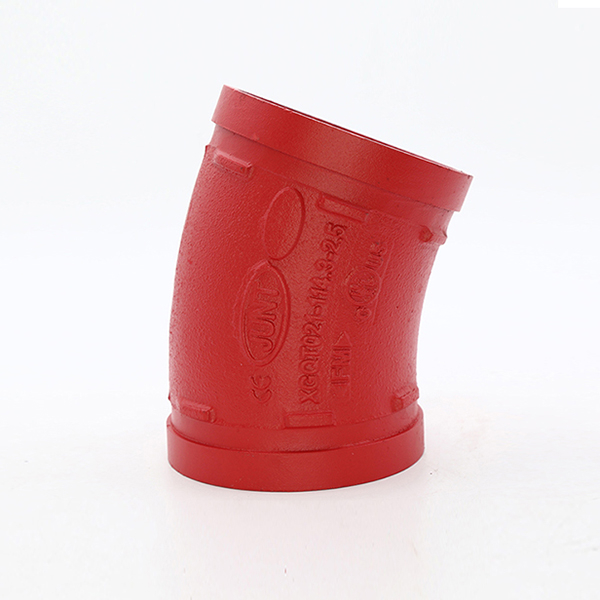

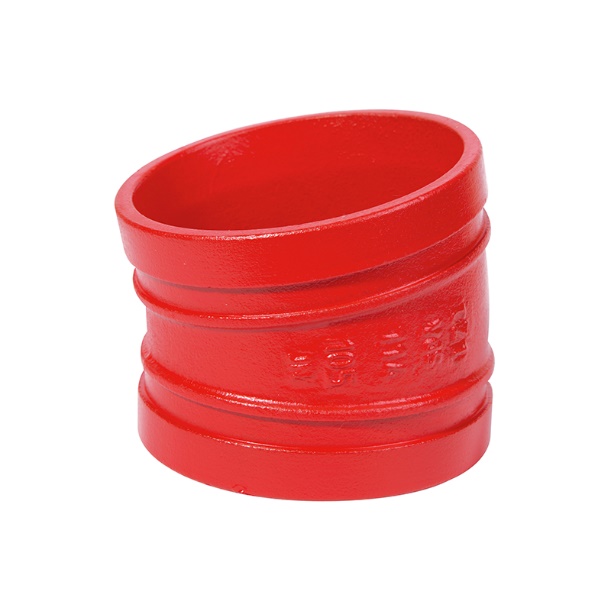

22.5°Elbow           11.25°Elbow  Galvanized         90°Elbow

Suitabilities

      Water                      Fire Fighting                    Oil& Gas
