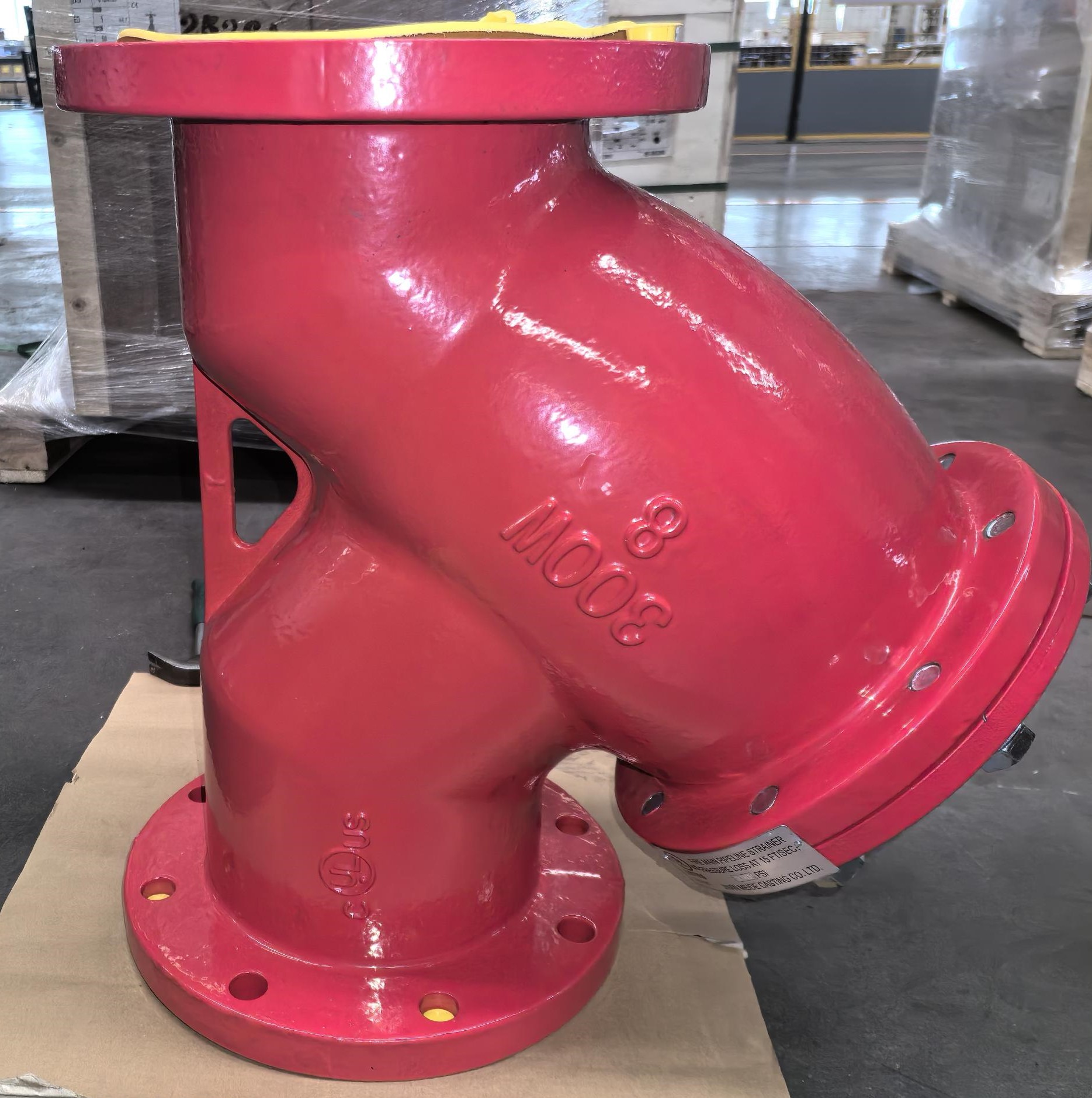

DN50–DN600 Flanged Y Strainer with Stainless Steel Screen for Water Treatment

Flanged Y Strainer: Key Features and Applications in Fire Protection Systems

Y strainer is shaped like a "Y and is used to filter, or strain, out particulates from steam, gas or liquid. This mechanical straining process is made possible via a filter element comprised of mesh, perforated metal, or a wedge wire straining element.

Construction

Description

• NPT or BSPT blowoff outlet on cover.

• Excellent flow characteristics.

• Minimum load loss.

• Range from DN50 up to DN300.

• Epoxy paint 200 microns min.

Standards

• Flanged: EN1092-2, ASME B16.1 Class 125

• Pressure Rating: PN10/16/25, 200psi/300psi

• Working Temperature: 0 ℃ - 100 ℃

Features

• Designed with flanged ends for easy installation and secure connection between pipelines

• Constructed from ductile iron / cast iron for high strength, pressure resistance and long service life

• Equipped with stainless steel filter screen for effective impurity filtration and fluid protection

• Available in pressure classes PN10 / PN16 to meet fire protection and industrial pipeline standards

• Y-type structure ensures low flow resistance, stable performance and easy cleaning

• Excellent sealing performance to prevent leakage in water and fire fighting systems

• Corrosion-resistant coating for extended durability under various working conditions

• Widely applied in fire protection systems, water supply, municipal engineering and industrial pipelines

Available:

Suitabilities

         Water               Fire Fighting
