FM Approved & UL Listed brass fire hose angle valve, 300PSI (2070KPA) rated, 2-1/2" NPT x NST connection, ideal for standpipe, fire hose rack and fire sprinkler systems.
Our FM/UL Certified Brass Fire Hose Angle Valve is a premium fire safety component engineered for reliable, high-performance flow control in commercial, industrial, and high-rise building fire protection systems. Manufactured to meet the strictest global fire safety standards, this 90° angle valve is the trusted choice for fire departments, contractors, and building owners worldwide.
Technical Specification
| Item | Specification |
|---|---|
| Product Name | Brass Fire Hose Angle Valve (90°) |
| Certification / Model | UL Listed / FM Approved |
| Working Pressure | 300 PSI (2070 KPa) |
| Test Pressure | 600 PSI (4140 KPa) |
| Nominal Size | 2-1/2" (DN65)， 1-1/2" (DN40) |
| Connection Type | Female NPT Inlet / Male NST (NH) Outlet |
| Body Material | Cast Brass (ASTM B584 C85700) |
| Stem Material | Brass |
| Handwheel Material | Red Powder-Coated Aluminum Alloy |
| Seal Structure | Rubber Seat |
| Surface Treatment | Rough Brass / Polished Brass / Chrome Plated (Optional) |
| Operating Temperature | -20°C ~ 60°C |
| Net Weight | Approx. 8.9 lbs (4.0 kg) |
Dual FM/UL Certification: Fully tested and certified to UL 668 and NFPA 13 standards, with certificate number EX16347, ensuring uncompromising reliability in emergency fire suppression scenarios.
Heavy-Duty Brass Construction: Precision-cast from high-quality brass (ASTM B584 C85700), delivering exceptional corrosion resistance, impact durability, and long service life in harsh indoor and outdoor environments.
90° Angle Design: Optimized 90-degree flow path enables easy installation in tight spaces, standpipe systems, and fire hose rack assemblies, minimizing pressure loss and ensuring efficient water delivery.
High-Pressure Performance: Rated for 300 PSI (2070 KPa) working pressure with a 600 PSI proof test, guaranteeing stable operation in high-demand fire protection systems.
Precision Flow Control: Equipped with a durable brass valve stem and premium rubber seat, ensuring a tight, leak-proof seal and smooth, effortless operation via the large, high-visibility red handwheel.
Universal Compatibility: Standard 2-1/2" (DN65) female NPT inlet and male NST (NH) outlet connections, compatible with all standard fire hoses, hydrants, and fire protection pipelines.

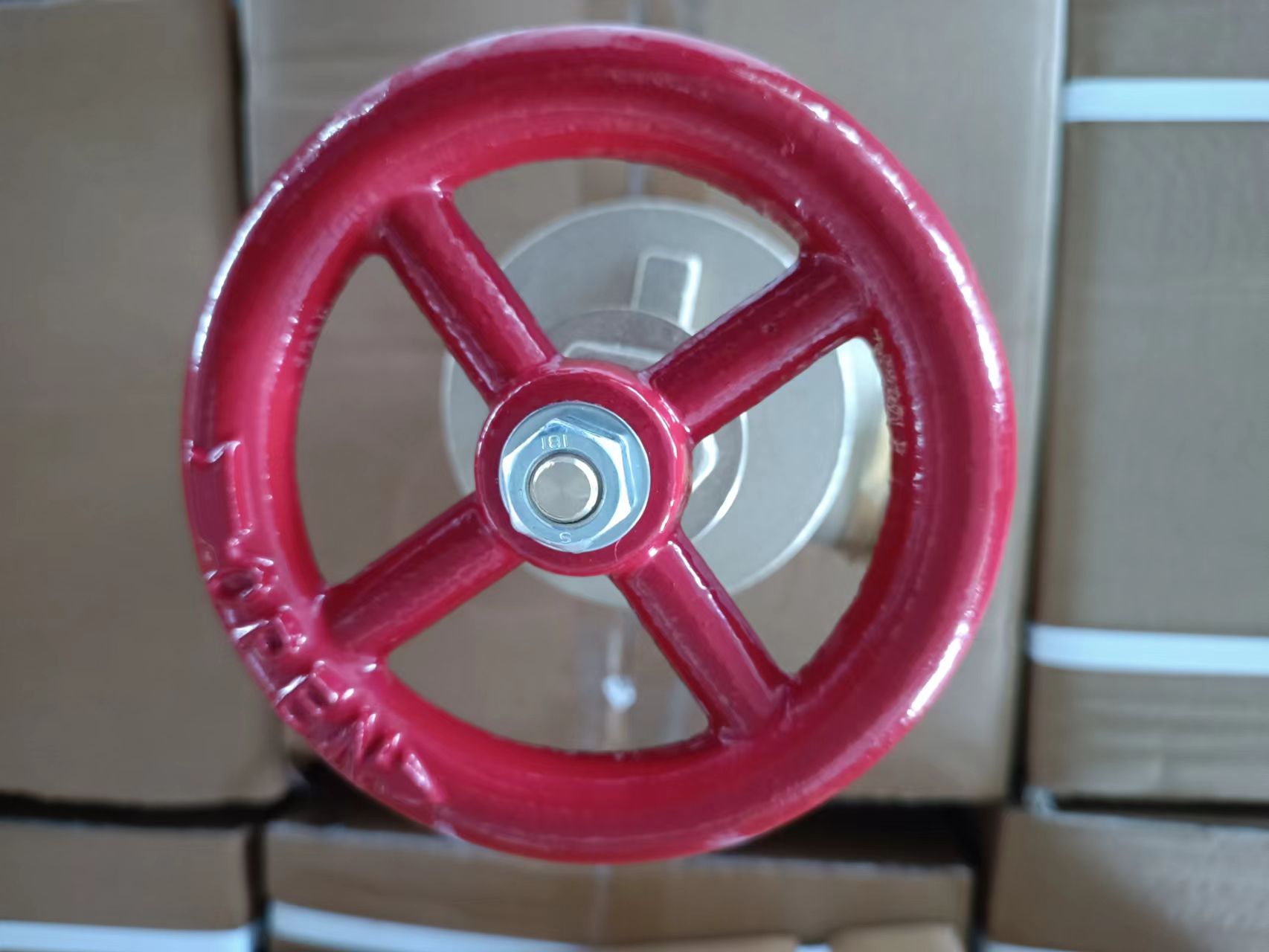

Ergonomic Design: Large, powder-coated red aluminum handwheel provides a non-slip grip, even with gloved hands, for quick, reliable opening and closing during emergencies.
Fire hose rack assemblies in commercial and residential buildings
Standpipe systems in high-rise buildings, warehouses, and industrial facilities
Fire department connection (FDC) for fire sprinkler systems
Municipal fire hydrant systems and emergency response stations
Marine and offshore fire protection systems
Suitabilities
Fire Fighting Construction
