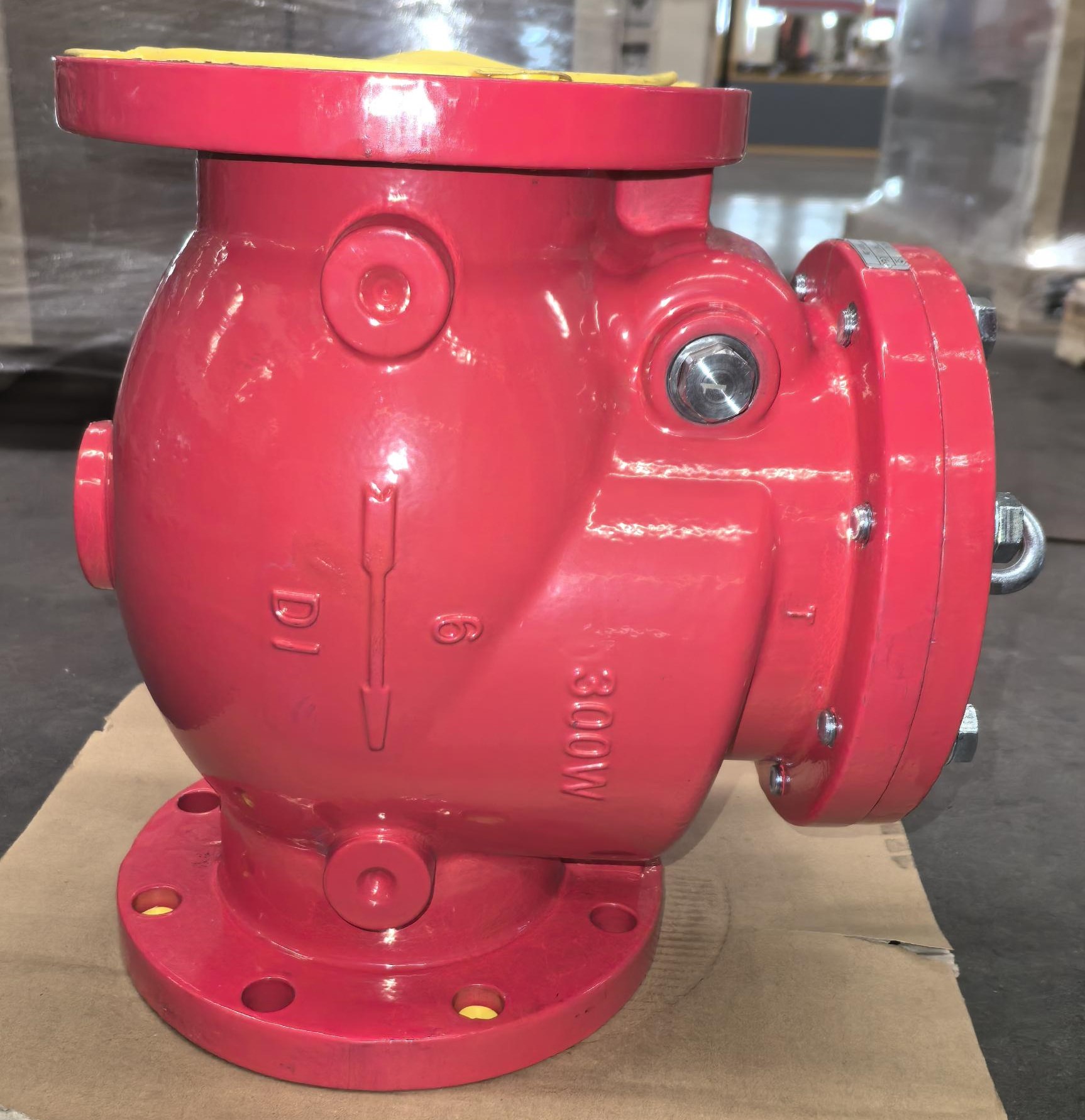

Flanged Check Valve PN16 for Fire Protection & Water Supply Systems

DN50–DN600 PN10/PN16 Swing Check Valve for Water & Municipal Projects

• A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally

• allows fluid (liquid or gas) to flow through it in only one direction.

• Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. Check valves generally are very small, simple, and inexpensive. Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves are made of plastic or metal.

Construction

Description

• Gravity operated, swing check design.

• Excellent flow characteristics.

• Drain plug at the bottom under the inlet end for attaching a drain valve if required.

• Minimum load loss.

• Range from DN50 up to DN300.

• Epoxy paint 200 microns min.

Standards

• Valve: EN16767, BS5153, MSS SP-71, AWWA C 508

• Flanged: EN1092-2, ASME B16.1 Class 125

• Pressure Rating: PN10/16/25, 200psi/300psi,

• Working Temperature: -10 ℃ - 100 ℃

Features

• Rugged ductile iron body for high pressure resistance and long service life.

• Standard flanged design for easy installation and stable connection.

• Effective backflow prevention to ensure safe operation of pipeline systems.

• Smooth flow channel with low flow resistance and energy saving.

• Available in pressure classes PN10 / PN16 to meet fire protection standards.

• Stable and silent operation, suitable for water supply and fire fighting systems.

• Excellent sealing performance to avoid leakage under working pressure.

• Widely used in fire protection pipelines, water supply networks and industrial systems.

Available

Suitabilities

         Water               Fire Fighting
