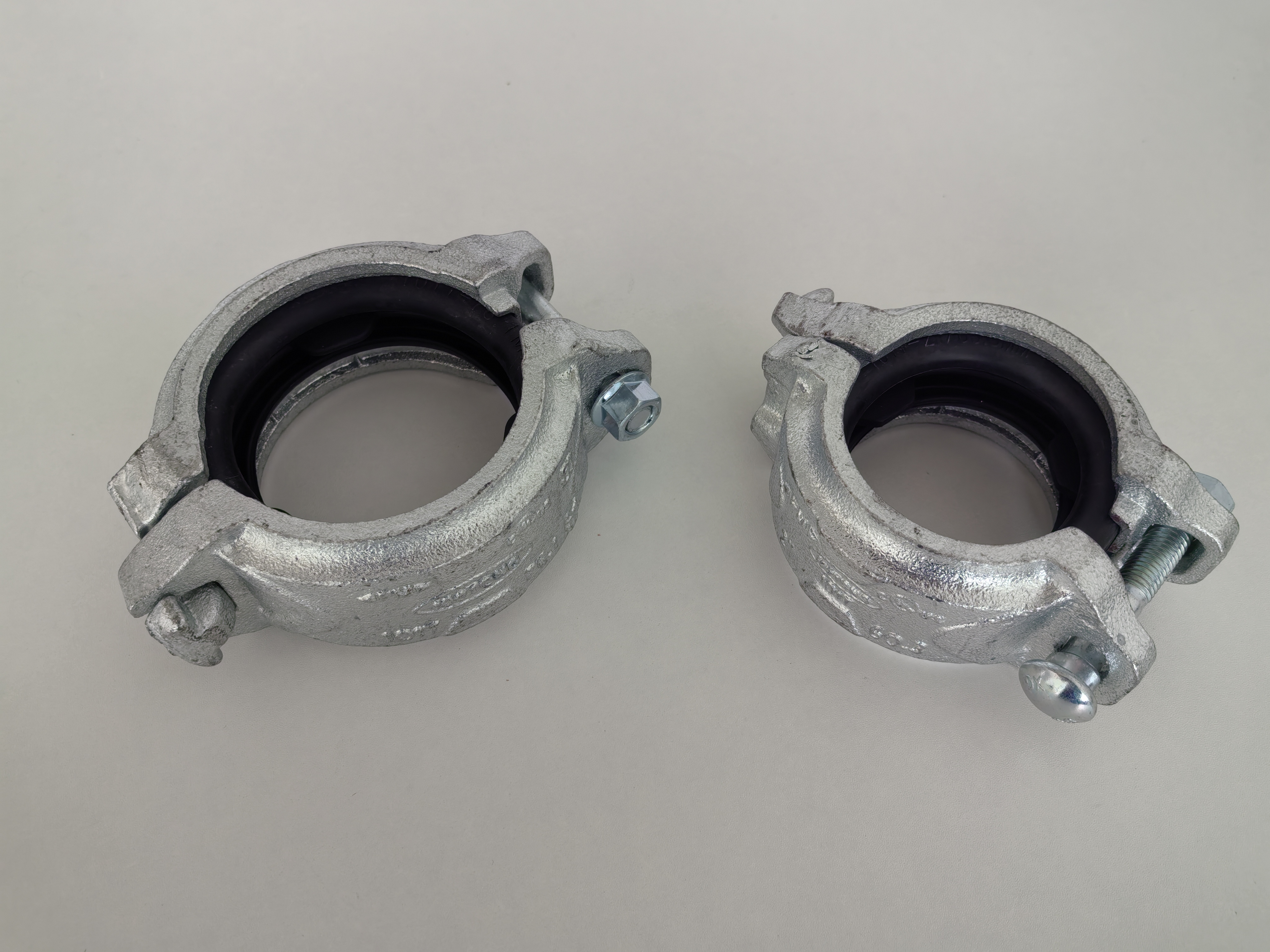

Hot-Dip Galvanized One-Bolt Ready-to-Install Coupling

Different from the standard grooved couplings, the quick coupling is a ready to install rigid coupling for general piping applications where rigidity is required. The quick install coupling includes two identical housing segments and a fully constrained wedge.Proper installation requires the tightening of only one bolt &nut.

The quick coupling does not need to disassemble during installation. It reduces the number of loose bolts, nuts, and other parts, reduces the material handling on site, and reduces the risk of workers' injury. The design of the single unit allows the installer to assemble the coupling or fitting easily, inserting it onto the grooved end of a pipe and tightening the nuts.

As this bolt & nut is tightened, the wedge applies uniform compression to the gasket. The hinge bolt&nut is factory pre-set and requires no adjustment.

Construction

Description

• Faster Assembly and Cost-effective

• Up to 2 times faster than standard grooved couplings

• Up to 10 times faster than welded joints

• Up to 6 times faster than flanged joints


• Range from DN20(3/4") up to DN300(12").

• Working Pressure Rate: 200psi-1200psi (1.6MPA-8MPA).

• Finish: HDG, power coated or any requirements.

• Certifiacted: UL, FM

• Installation Feature: One-bolt quick clamping design, pre-assembled with gasket and fastener, no additional parts required, installable within 60 seconds per joint

• Compatible Pipes: Steel pipes, ductile iron pipes, HDPE pipes (with adapter sleeves)

• Application Scenarios: Fire protection pipelines, municipal water supply systems, industrial fluid conveyance, outdoor irrigation pipelines

Package

Suitabilities

     Water                       Fire Fighting                    Oil& Gas
