C Beam Clamp

C Beam Clamp

Beam clamps, which are also known as girder clamps or beam adapter, is used to suspend or secure fixtures, wires, threaded rods, and other hardware. It provides a simple and portable means of attaching a hoist to a runway or lifting beam.

Beam Clamps are designed to secure all  wide channels, or threaded rod, to beams or supports for the purpose of running piping, conduit or tubing. All fittings are manufactured from  thick carbon steel or cast malleable iron. Recommended for use under roof installations with bar joist type construction where thickness of joist does not exceed 5/8 inch. Specify model, rod size and finish when ordering. Please contact us for any other clamps you may need.

Description

• Rod Size：3/8" 、1/2"


• Finish:  PLAIN、EG.

• Approals:  UL lists 3/8" 、1/2" ; FM approved 3/8" 、1/2"

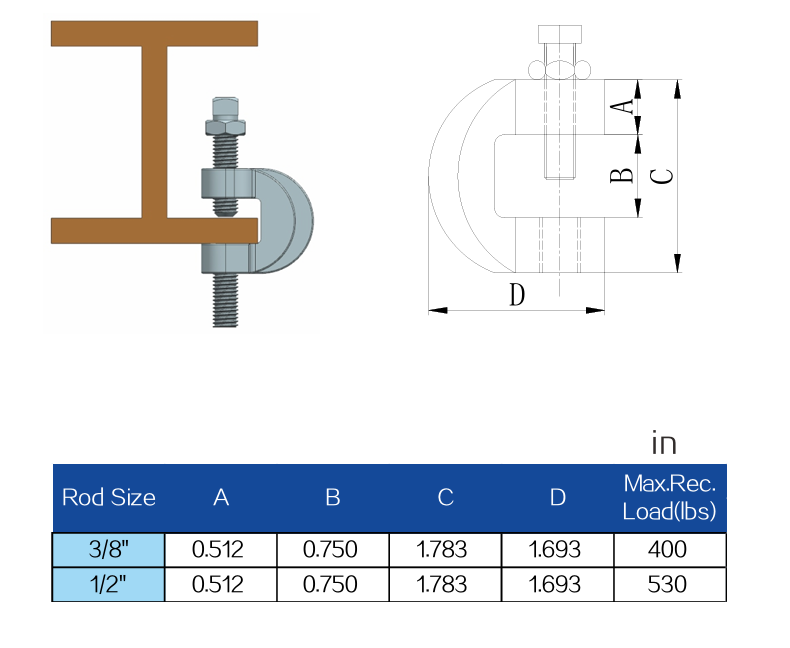

• Function: Structural attachment to top or bottom of metal beams, purlins, channel, or angle iron. 3/8" is reversible design . 1/2" is only for top position .(screw on bottom)


• Features: Conforms to Federal Specification WW-H-171 Type 23 ,Manufacturers Standardization Society ANSI/MSS SP-58 Type 19 & 23. Setscrew must be tightened and torqued onto the sloped side of the I-beam.

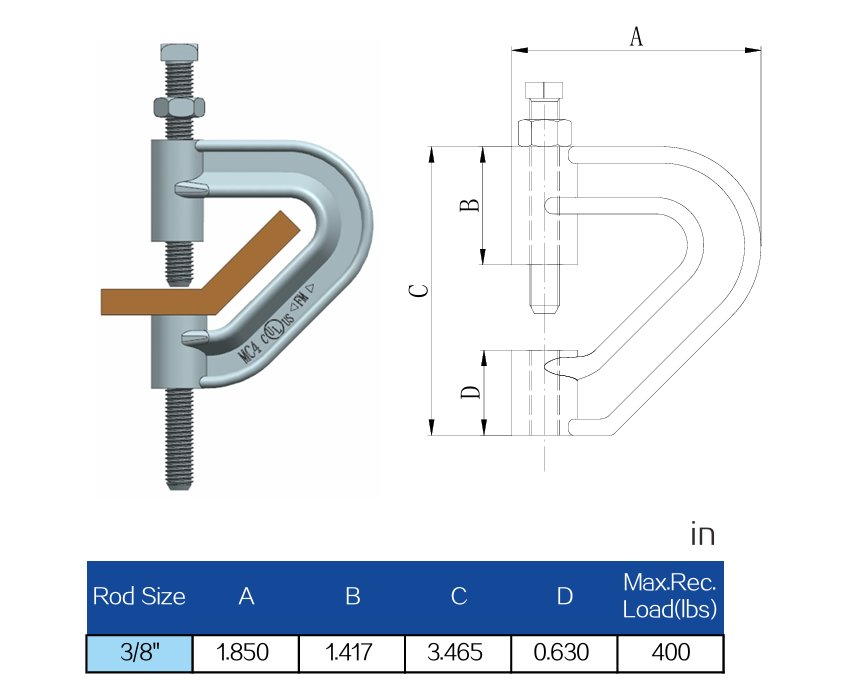

Construction

Suitabilities

          Water             Fire Fighting
